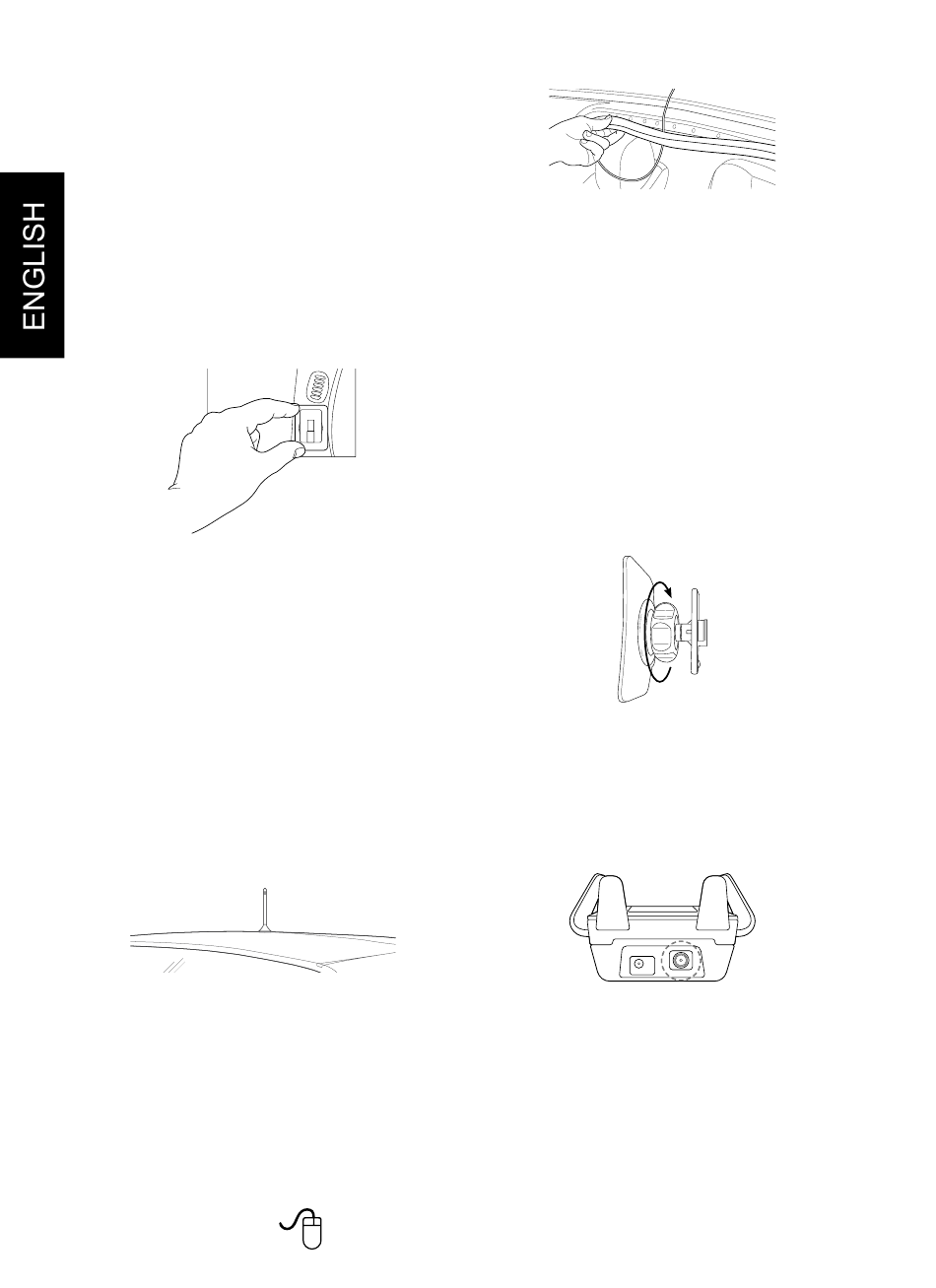

Installation Options
Vehicle Installation Option
1 . Attach the Mounting Bracket to the
vehicle's dashboard .
• Clean the area where the bracket is
to be mounted with the alcohol wipe
included. Allow the area to dry.
• Peel the backing to expose the adhesive
and press the bracket onto the desired
location on the dashboard . NOTE: Be
sure the tab is positioned vertically.
• Allow the adhesive to cure for 24 hours
before you attach the Drive 3G-S
(Step 4) .
2. Install the Outside Antenna. Select a
location on top of the car that is:
• Near the center of the vehicle's roof .
• At least 12 inches from any other
antennas .
• Free of obstructions .
• At least 6 inches from any windows
(including sunroofs) .
The Outside Antenna must be installed
vertically.
3 . Run the Outside Antenna cable into the
car . The cable is strong enough that it
may be shut in most vehicle doors without
damaging the cable . For a cleaner look,
carefully pull down the door seal, run the
cable under the seal, and push the seal
back into place. This method reduces wear
on the cable as the door opens and closes .
4
Need help?
4 .
5 .
http://cellphonesignalbooster.us
Attach the Drive 3G-S to the Mounting
Bracket. After waiting 24 hours for the
adhesive on the bracket to cure, attach
the Drive 3G-S by aligning the rectangular
hole on the back of the Drive 3G-S with
the tab on the Mounting Bracket, grasping
the sides of the Drive 3G-S, and sliding it
downward approximately ¼ inch into place.
The Mounting Bracket is designed to
swivel for more convenient viewing angles.
Once the Drive 3G-S is in place, you
can adjust the angle of the bracket by
loosening the knurled nut, applying gentle
pressure to the top or bottom of the Drive
3G-S, and then tightening the nut when the
desired angle is achieved .
Attach the antenna to the Drive 3G-S .
Connect the cable from the Outside
Antenna to the antenna connector on the
bottom of the Drive 3G-S . Do NOT plug
in the power supply (next step) until the
Outside Antenna cable is connected to the
Drive 3G-S .
Note: The Drive 3G-S has a convenient mini-
USB charging port located on the right
side of your booster. This port allows
for charging your phone or device.
weBoost offers several cables for this
purpose .
• 859966, mini-USB to mini-USB
• 859979, mini-USB to iPhone (up to 4S)
• 859967, mini-USB to micro-USB
