FE 75
FE 100 S–1000 S
6.2.6.
Mounting the ST 411 bracket
Mount the ST 411 control unit bracket on the controller mounting plate using
the fastening material so that the embossed arrow points upwards.
Note:
If the kiln is equipped with another controller, the bracket is still mounted in
the same way. There may be three mounting holes on the bracket. Therefore,
pay attention to the matching holes in the controller mounting plate. Also pay
attention to the alignment of the controller mounting plate so that the
controller can be removed upwards.
89 / 298 - EN -

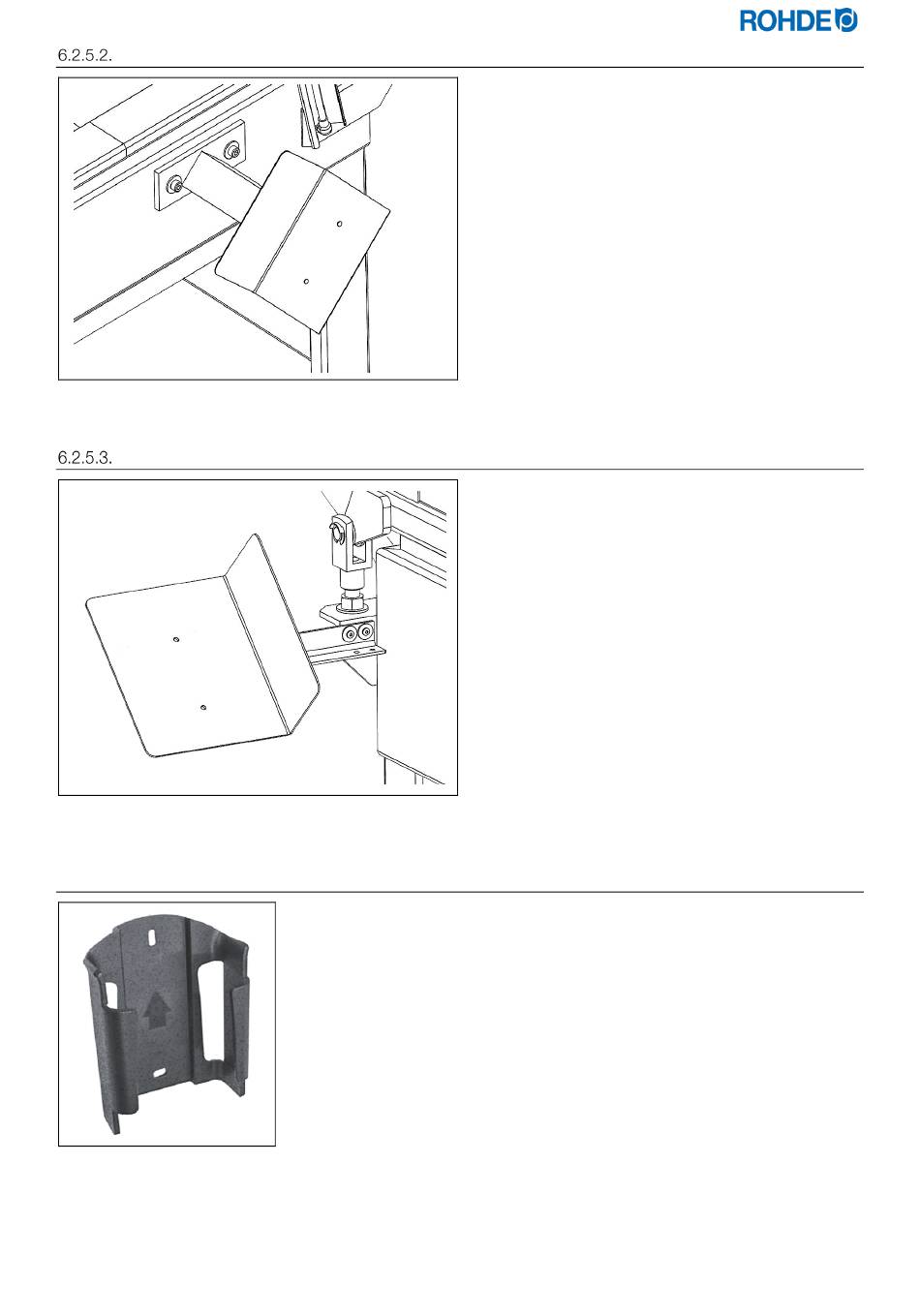

Attach the supplied controller mounting plate to
the right side of the kiln using the bolts provided.
Attach the supplied controller mounting plate to
the left side of the kiln, in the rear area, below the
lid hinge using the bolts provided.
