Fermax IP AXES 4+ Manuel D'installation page 13

Cod. 97846 V05_17

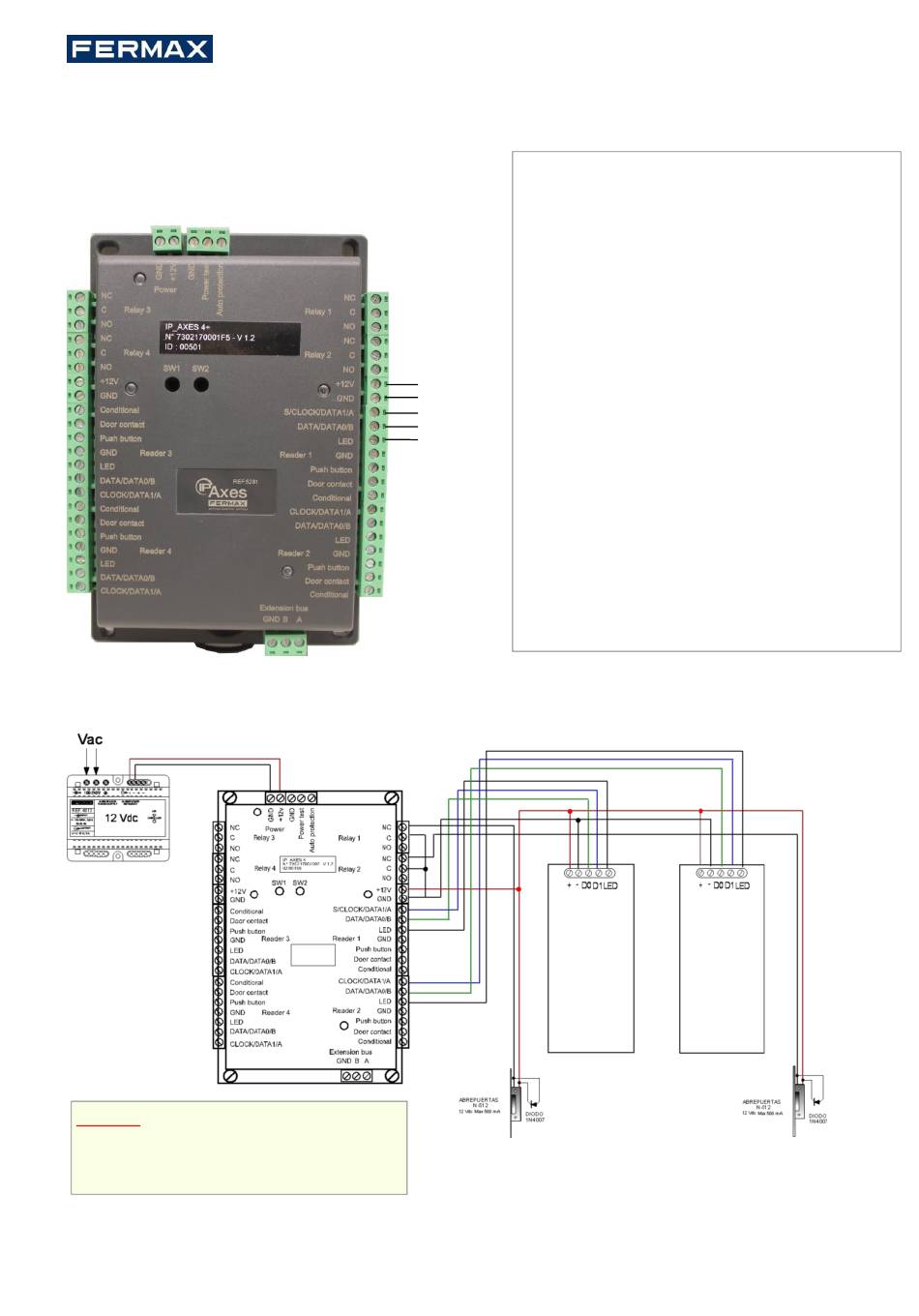

CONNECTING A DEVICE USING THE WIEGAND, CLOCK & DATA PROTOCOL O S-
BUS SYSTEM
CONNECTING A DEVICE USING THE WIEGAND OR CLOCK&DATA PROTOCOL
Warning: If you use an external power supply
for your proximity readers, take care to
connect the various earths to that of the
module.
3200291
All manuals and user guides at all-guides.com
+12V/200mA
-
D1/CK/S
D0/DT
LED
Page 13/29
WIEGAND: (+,-,D0,D1,LED)
o Proximity reader (5277,
5255,7440*, 6992*)
o Key pad ( (5278)
o Radio receivers (5266)
CLOCK&DATA: (+,-,DT,CK,LED)
o Magnetic strip readers
o Barcode readers
o Proximity readers
o Radio receivers
S-BUS: (+,-,S)
o Proximity reader (5255)
o Radio receivers (5266)
RS485 (A, B)
o BIO MINI Fingerprint reader.
*Add cable ref. 2545
