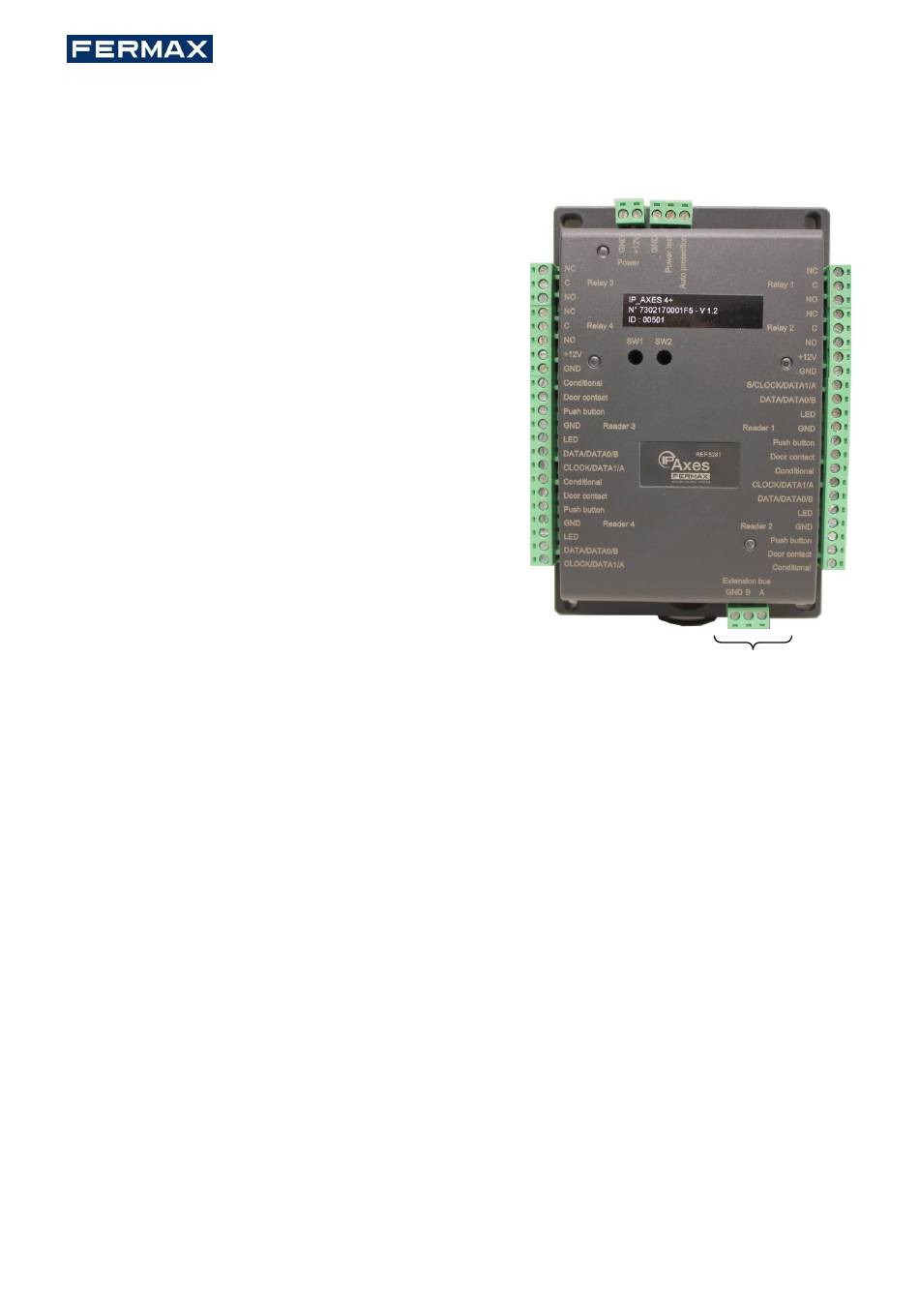

FUNCTIONS OF THE TERMINALS
Nc
C
No
+
S/CLOCK/DATA1/A
DATAT/DATA0/B
LED
GND
Push button
Door contact
Conditional
3200291
All manuals and user guides at all-guides.com
Normally closed
Common
Normally open
+12 Vdc/1,5Amax.
S-BUS/CK / D1/A
DT/DT0/B
LED
-
Exit buttom
Door sensor
Conditional entry
Page 19/29
RS485
Extension Bus
