Connections and Setup

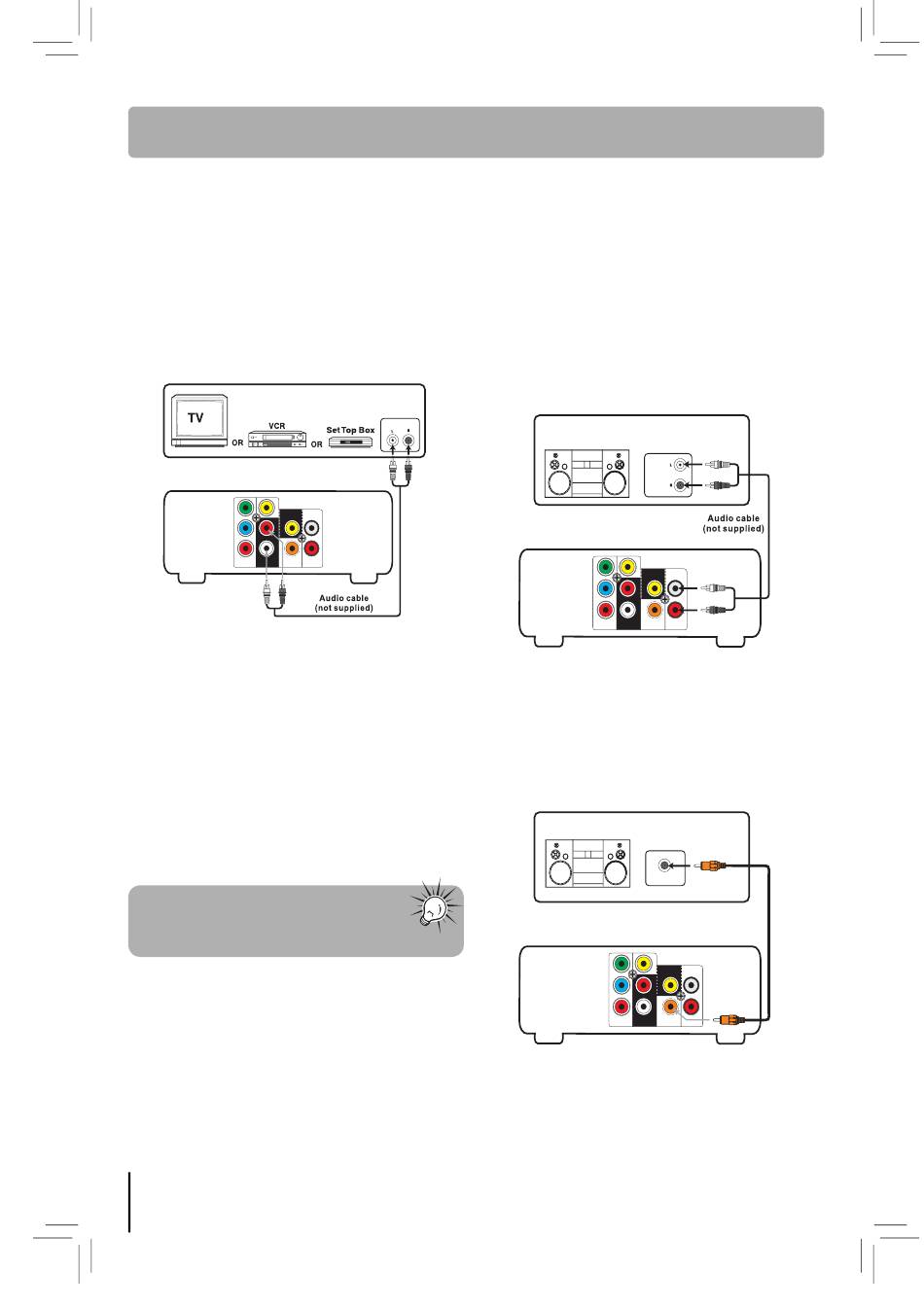

Getting sound from external sources such
as a Cable Set Top Box or a TV
Using AUDIO IN (ANALOG R/L) jacks
1. Connect the AUDIO IN (ANALOG R/L) jacks on
the back of the unit to the AUDIO OUT jacks on
TV, VCR, Set Top Box or other component.
2. Press the FUNCTION button on the remote
control to select AV IN mode.
VIDEO
IN
VIDEO OUT
Y T V
P R
B
L
P L
R
DIGITAL
COMPONENT AUDIO IN
AUDIO OUT
VIDEO OUT
Rear of the unit
Using AUX IN jack
1. Connect the Ø3.5mm AUX IN jack on the front
panel of the unit to the headphone output on
mp3 players.
2. Press the FUNCTION button on the remote
control to select the AUX IN mode.
Note
Ø3.5mm jack to Ø3.5mm jack audio cable (not
included).
• If the AUX IN audio signal is mono,
you may not receive audio on all
speakers.
8
All manuals and user guides at all-guides.com
AUDIO OUT
AUDIO OUT
L
R
Connecting AUDIO OUT to an auxiliary Audio
System (optional connection)
This system allows you to connect to auxiliary
audio systems such as a second audio amplifi er
or perhaps a wireless audio transmitter.
Using AUDIO OUT (ANALOG R/L) jacks
Using an audio cable (not supplied), connect the
left/right AUDIO OUT jacks on your unit to the
AUDIO IN jacks on your another equipment.
