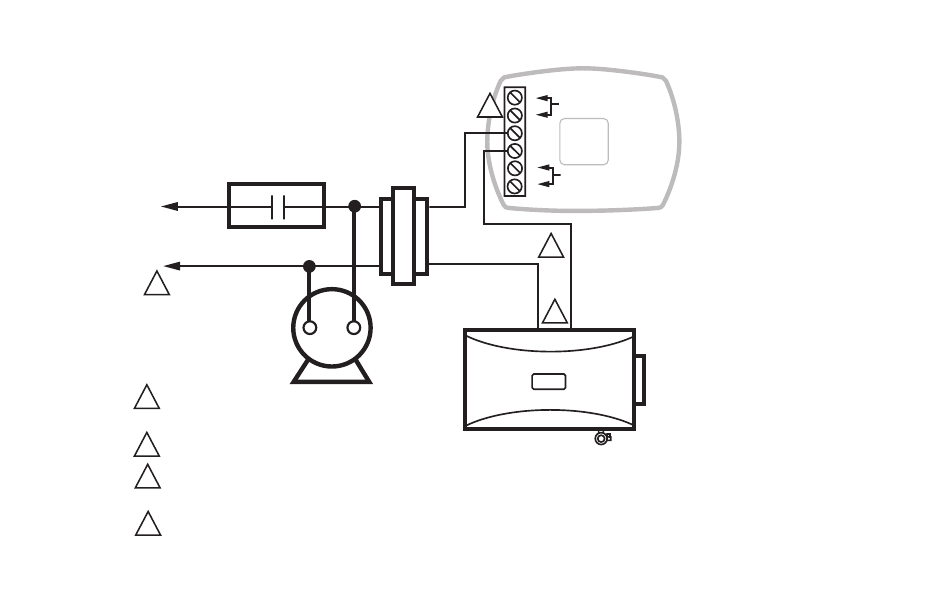

Wiring HumidiPRO with Fan Interlock
L1
(HOT)
POWER
SUPPLY
L2
1
1
PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
2
24 VAC WIRING.
3
24 VOLT R AND C FROM TRANSFORMER SHOULD ALSO BE WIRED TO R AND C ON
THE DIGITAL HUMIDITY CONTROL IF USED.
4
THE R AND C ON H6062 MUST BE POWERED BY A DIFFERENT TRANSFORMER IF
THE TRANSFORMER POWERING THE HUMIDIFIER IS WIRED THIS WAY.
FAN CONTROL
TRANSFORMER
FURNACE
FAN
MOTOR
24V CONSTANT
C
4
REQUIRED
R
U
U
S
OUTDOOR SENSOR
S
2
HUMIDIFIER
3
8
M34570C
