3

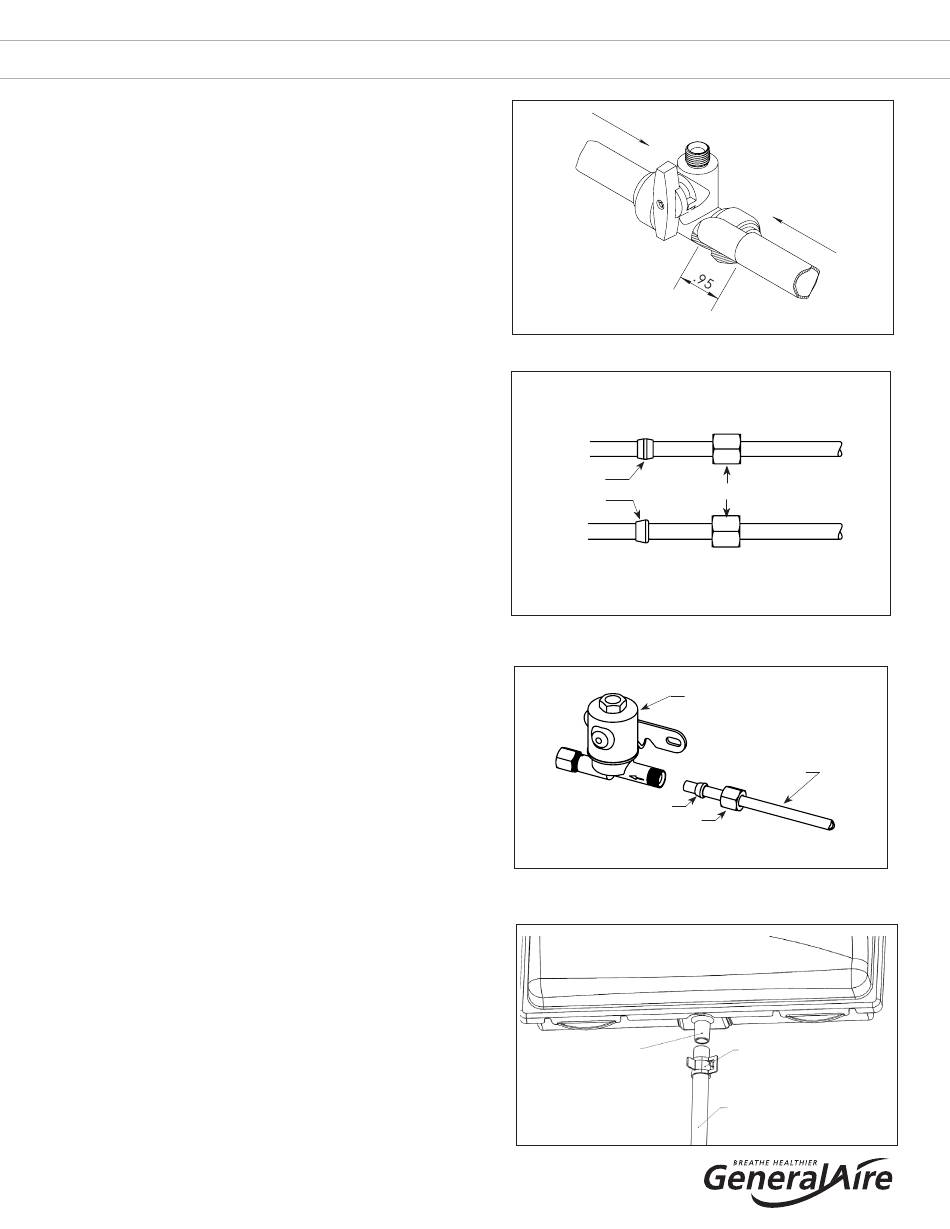

Install the Push-to-Connect Valve, Cont.
4. Firmly insert both pipes into fitting until at full depth.
Verify each pipe is fully inserted. The depth mark will
be within 0.005" (0.13mm) of the release collar (Fig. C).
4
Configure Water Supply Tubing
1. Utilizing copper tubing requires a brass compression
nut and brass sleeve.
2. Utilizing plastic tubing requires a plastic sleeve on the
outside with a brass compression nut.
5
Connect Water Supply
1. Connect 1/4" water supply tube to brass inlet of solenoid.
2. Turn on water supply and check for leaks.
CAUTION: Do not use plastic tubing in contact with any
!
hot plenum surface or duct.
6
Connect Drain Hose
1. Connect the 1/2" ID drain hose to the spout on the
humidifier cabinet using the provided flat spring clip.
2. Run the drain hose to a suitable drain such as floor drain,
laundry sink or to a condensate pump (sold separately).
Be sure the hose has continuous slope and is not kinked
at any point.
INSTALLATION - SUPPLY (ONLY)
Fig. C
HOT WATER
- COPPER TUBING 1/4"
Brass Sleeve
P-102
Compression Nut P-101
Plastic Sleeve
P-190
COLD WATER
- PLASTIC TUBING 1/4"
Solenoid Assy
4400-05
1/4" Water Supply Tube
Compression Sleeve
P-190
Compression Nut
P-101
1/2" Spout
Flat Spring Clip
1/2" Drain Hose
®
®
3
