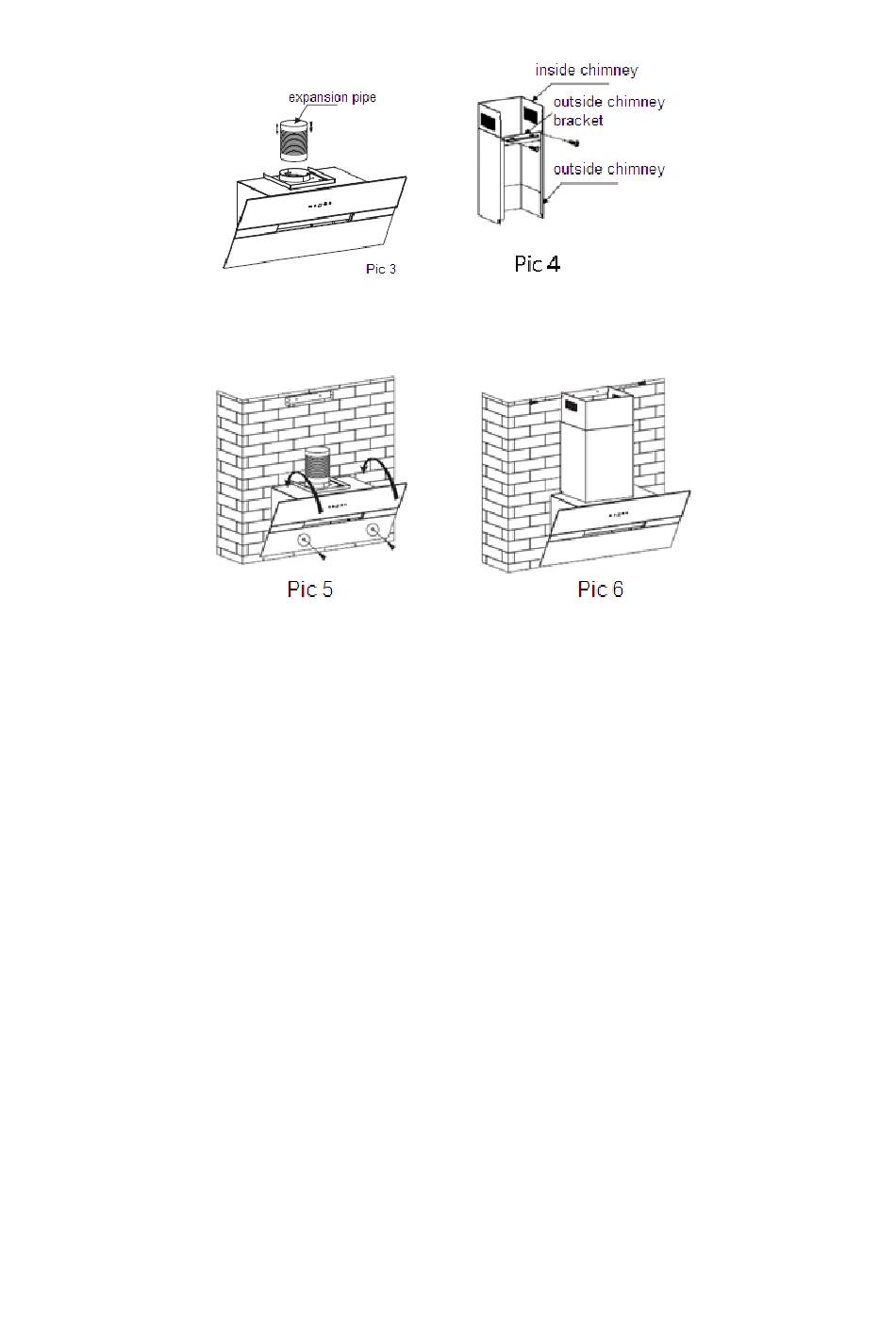

6. Install the outside chimney bracket on the outside chimney, make sure that the
inside chimney could be moved inside, see Pic 4.
7. Hang the hood on the screw,adjusting the cooker hood position, fix the cooker hood
with ST4*30mm screws (safety screw).See Pic 5.
8. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix on it by screws. See Pic 6.
Note: The two safety vents are positioned on the back housing, with diameter of 6mm.
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the range hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the ventilation pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the exhaust ducting selected for installation complies with relevant standards
and is fire retardant.
