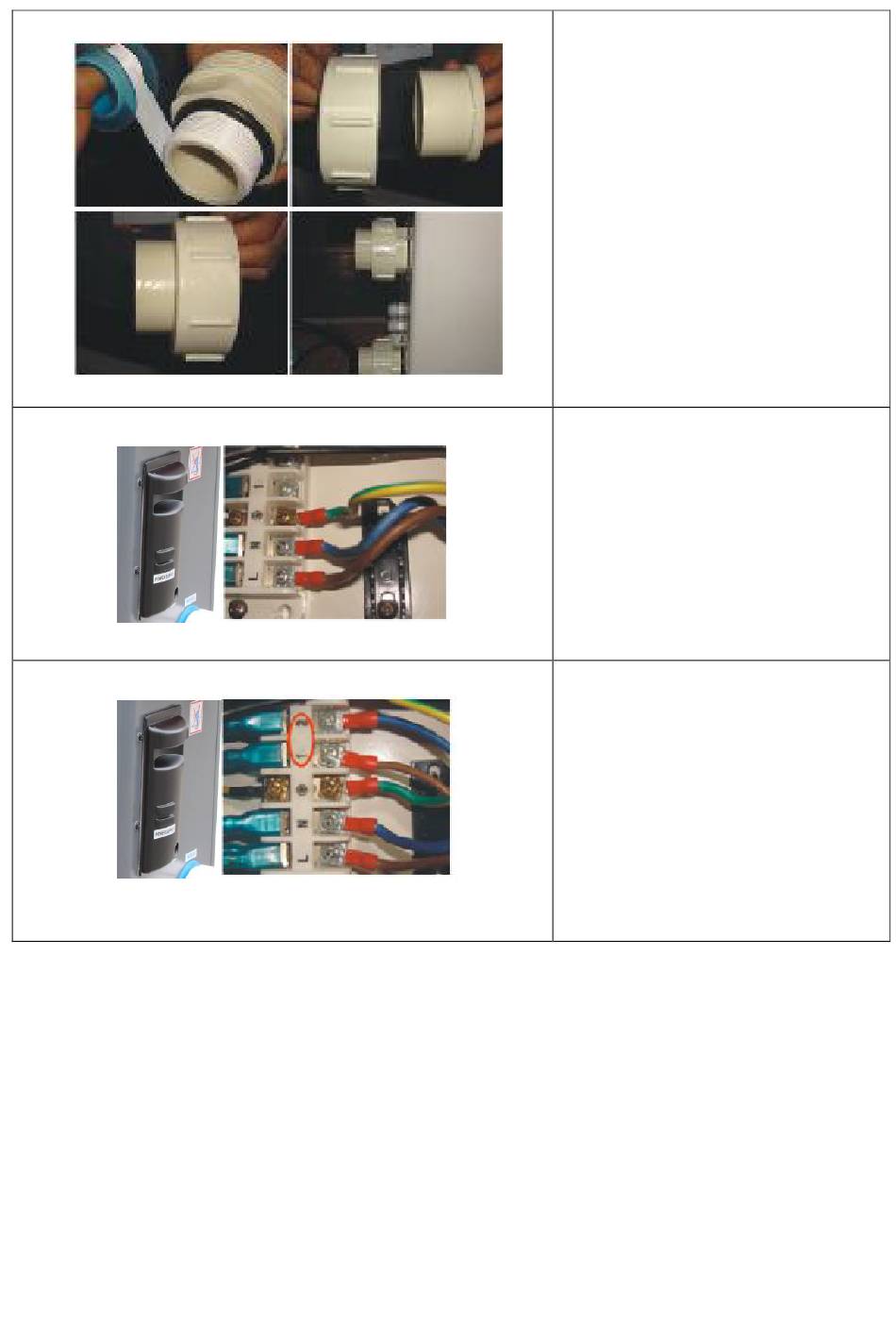

Water Inlet & outlet junction
1. Use the pipe tape to connect the
water Inlet & outlet junction onto the
heat pump
2. Install the two joints like the picture
shows
3. Screw them onto the water Inlet &
outlet junction
Cable wiring
1. Open the terminal cover
2. Fix the power supply wire on joints
Water pump wiring
1. Open the terminal cover
2. With the connector 1 and 2 you can
pilot the water filtration through the
timer of the filtration (dry contact)
