Keep this operating instruction close
by the product, protected from dirt and
humidity, and pass it over to the new
owner if you part with the tool.
No changes to the dust collector may
be made.
Daily inspect the function and
existence of the safety appliances
before you start the air cleaner.
Do not attempt operation in this case,
protect the dust collector by
unplugging the power cord.
Always disconnect the dust collector
from the power source (unplug) before
servicing or changing filters.
During the changing or cleaning of the
filters it's necessary to use a mask
(mask with filtration).
Never reach into the machine while it
is operating or running down.
To reduce the risk of injury from
moving parts, always keep inlet port
covered with the caps provided, if they
are not connected to a hose.
Make sure that the power cord does
not impede work and cause people to
trip.
Do not operate the machine under the
influence of drugs, alcohol or any
medication. Be aware that medication
can change your behaviour.
Keep children and visitors a safe
distance from the work area.
Never leave a running machine
unattended. Before you leave the
workplace switch off the unit.
Do not operate the electric tool near
inflamm able liquids or gases.
Observe the fire fighting and fire alert
options, for example the fire
extinguisher operation and place.
Do not use the dust collector in a
dump environment and do not expose
it to rain.
Do not use this equipment to filter
volatile fumes or smoke.
Wood dust is explosive and can also
represent a risk to health.
Dust form some tropical woods in
particular, and from hardwoods like
beach and oak, is classified as a
carcinogenic substance.
Connection and repair work on the
electrical installation may be carried
out by a qualified electrician only.
Have a damaged or worn power cord
replaced immediately.
3.3 Remaining hazards
When using the machine according to
regulations some remaining hazards
may still exist.
Dust can cause injuries.
The use of incorrect mains supply or a
damaged power cord can lead to
injuries caused by electricity.
Danger of explosion if not properly
grounded.
4. Machine specifications
4.1 Technical data
Dust inlet
Ø200mm (3xØ100mm)
Air flow Ø200
Air flow Ø100
Vacuum pressure
Collector bag capacity
Overall DC-1900A:
(LxWxH)
1550x760x2440mm
Net weight
Mains
400V ~3L/PE 50Hz
Output power
2,2kW (3 HP) S1
Reference current
Extension cord (H07RN-F)4x1,5mm²
Installation fuse protection
4.2 Noise emission
Acoustic pressure level (EN ISO
3744):
82 dB (A).
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of the
hazards and risks involved only.
4.3 Content of delivery
2 Filter bags (DC-1900A)
2 Canister filters (DC-1900CK)
Mobile casters
Dust inlet 3 x 100 mm
Set of 10 collection bags
5. Assembly and start up
5.1 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the unit!
Dispose of the packing in an
environmentally friendly manner.
4
Base:

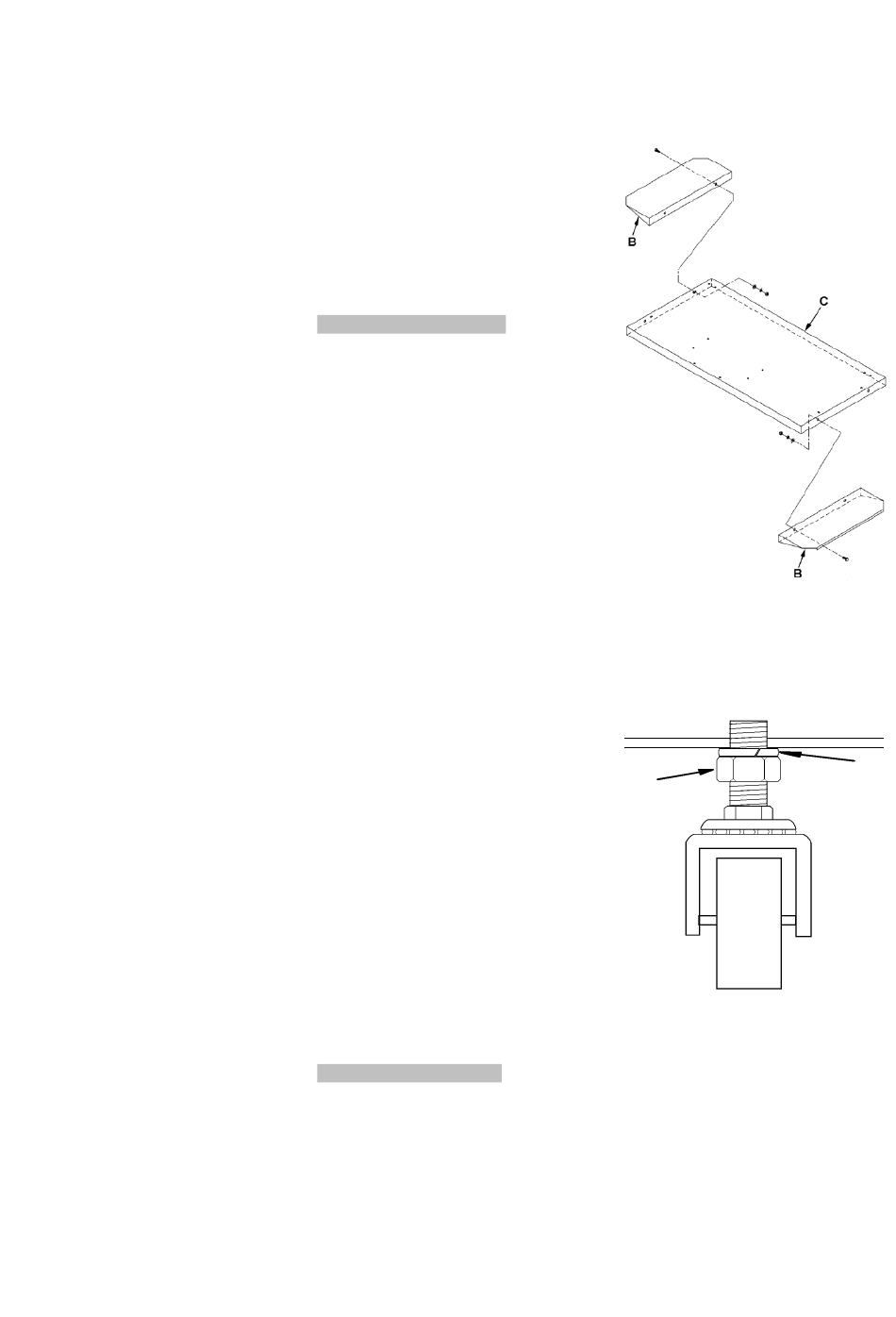

Attach the base extensions (B, Fig 1)
to the base (C) with hex head screws,
washers, lock washers and nuts.
2900 m³/h
1180 m³/h
1800Pa
2 x 200L
86 kg
4.2 A
16A
Casters:
Install four casters to the under side of
the base with lock washer and nut (Fig
2)
Motor and fan assembly:
Attach the motor and fan assembly
(A, Fig 3) to the base, using 4 hex
head screws (P) and washers.
Fig 1
Fig 2
