INSTALLATION INSTRUCTIONS
Important: Make sure the mounting surface is level. Brackets must be in line and level for shade to operate properly. Shim brackets if necessary.
2 1/2"
Inside Mount, install the brackets level and aligned to each other, using the screws provided.
Outside Mount, center the shade over the window opening at the desired height and mark the end of the clutch side of the shade. Measure the width of the
shade fabric, and mark the width of the fabric plus 1 1/4" from the previously marked mark.
Note: The Medium and Large curved Cassette uses a different bracket from Small versions for optimized performance.
2 1/2"
Inside mount (IB)
Inside Mount, install the brackets level and aligned to each other, using the screws provided.
Outside Mount, center the shade over the window opening at the desired height and mark the end of the clutch side of the shade. Measure the width of the
shade fabric, and mark the width of the fabric plus 1 1/4" from the previously marked mark.

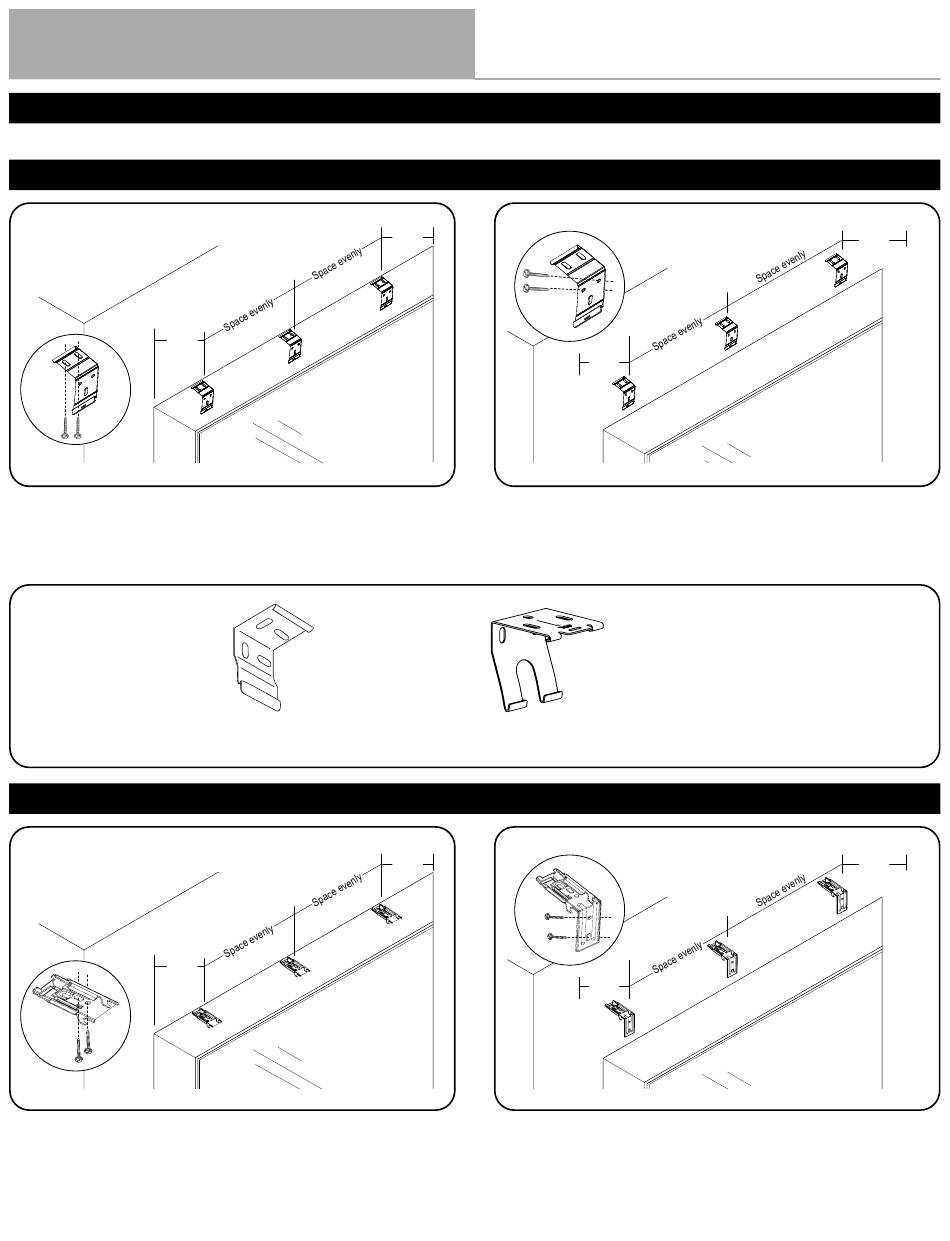

1. Install the Brackets
1a. Small, Medium and Large Curved Cassette
2 1/2"
Small
1b. Square Cassette
2 1/2"
ROLLER SHADES (SKYLINE)
Cassette Shades
2 1/2"
Desired
Cassette
end mark
Medium / Large
2 1/2"
Desired
Cassette
end mark
Outside mount (OB)
2 1/2"
Desired
Cassette
end mark
2 1/2"
Desired
Cassette
end mark
1
