3. Completed installation is shown Fig. 3a.3b.3c.
3.
Pump To Pressure Tank And To House Connection
Notes: The pump must be within 4' of the tank to prevent switch chatter. check the tank precharge on a
yearly basis
Pre-Charge Tank Connection
For Professional Technical Support call 1-844-242-2475

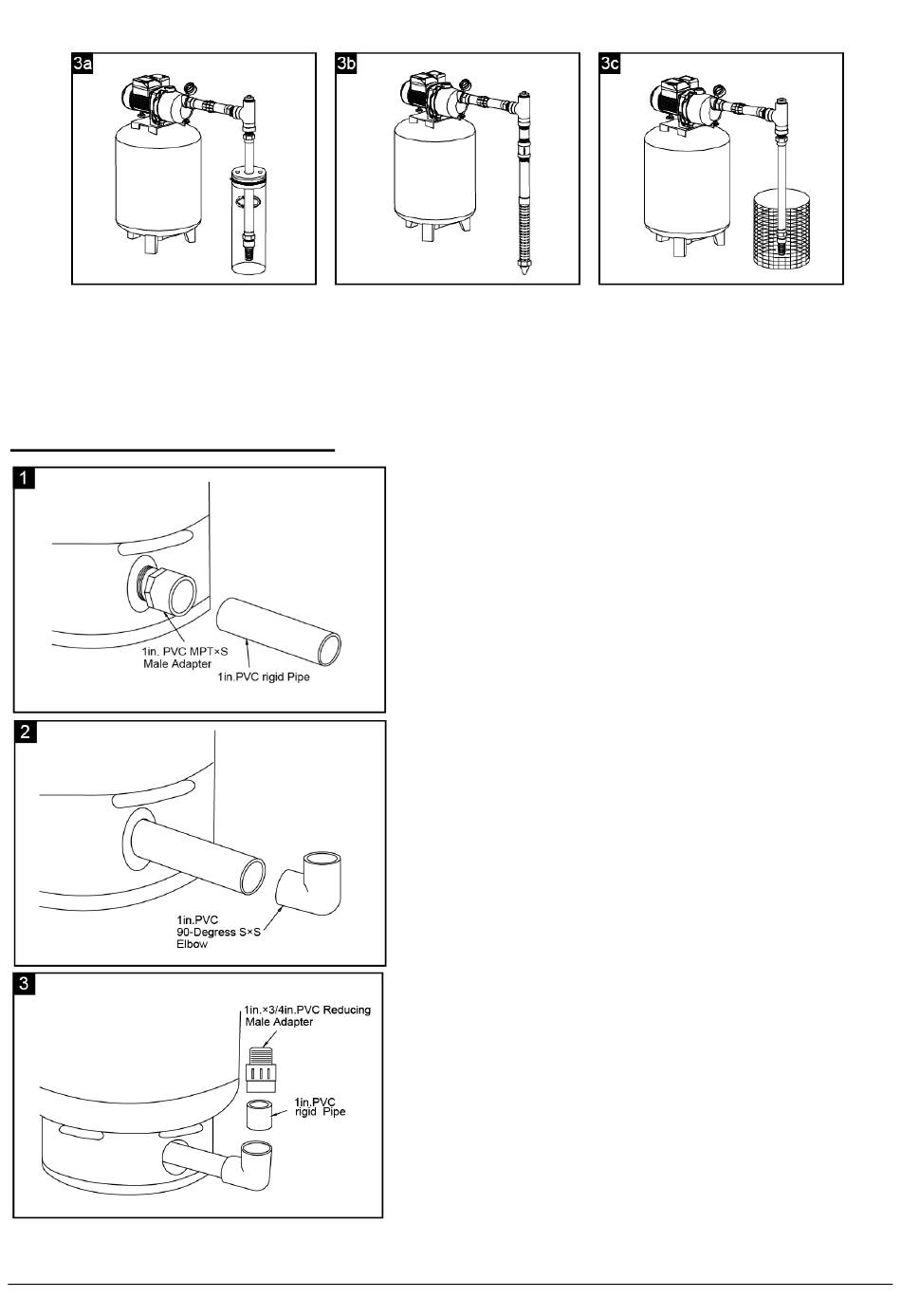

1. Most pressure tanks will have a 1in. inlet elbow on the
bottom. Connect to this elbow with a 1in. PVC MPT×S
Male Adapter and a short piece of 1in.PVC rigid Pipe.
(Fig. 1)
2. Cement a 1in.PVC 90-Degress S×S Elbow. (Fig. 2)
3. Cement a 1in.PVC rigid Pipe into elbow then cement a
1in.×3/4in.PVC Reducing Male Adapter. (Fig. 3)
