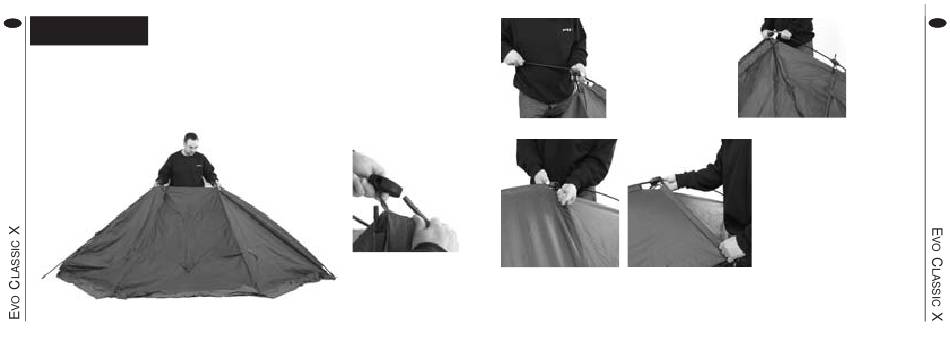

Assembly
GB
Instructions
1. Holding the tips of the
composite poles, fan the
Evo out as shown
All manuals and user guides at all-guides.com
2. The moulded bosses
should be fitted to the tip
5. Insert the two rear poles into
of each of the side poles
the boss sockets
3. Taking the short centre pole,
place it into the socket on the
block opposite to where the
side pole is connected
6. Standing at the front of the Evo,
take hold of one of the short front
poles and placing downward pressure
onto the boss, insert the pole into the
socket. This is best done using a light
downward pressure on the boss, while
lifting and inserting the pole with the
other hand
4. Tension the
GB
Evo and connect
the centre pole
into the
other boss
