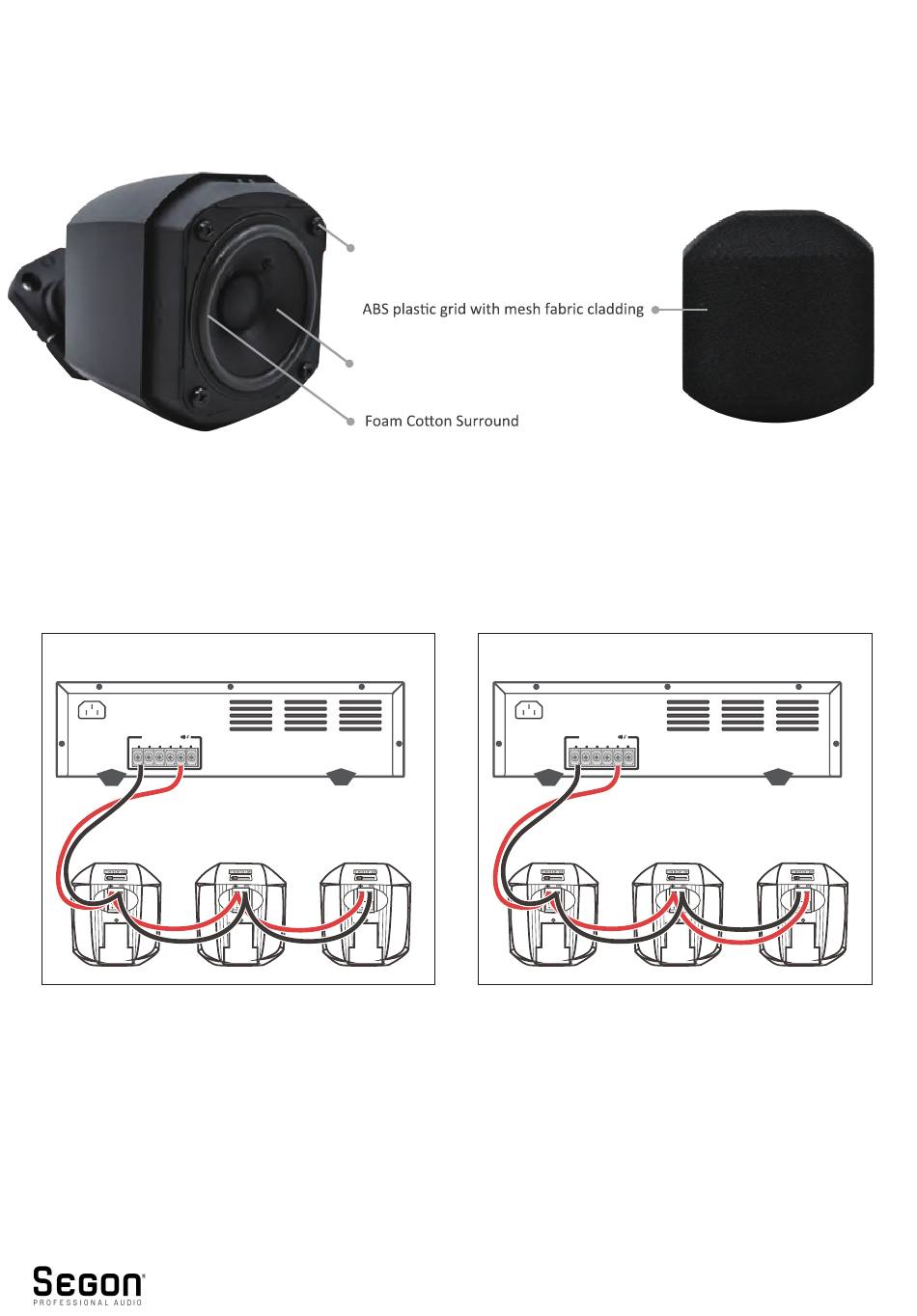

Figure 1.
Correct Speaker Wiring
SPEAKER OUTPUT
4Ω
8Ω
16Ω
COM
70V 100V
+
-
a.
b.
+
-
Be careful not to cross wires when installing your speakers. Wiring should always be negative to negative
PRODUCT DETAIL
Stainless Steel Bolts
3" Paper cone
AUDIO CONNECTIONS
c.
+
-
and positive to positive.
(Figure 2. shows speaker c. incorrectly wired)
Figure 2.
Incorrect Speaker Wiring
SPEAKER OUTPUT
4Ω
8Ω
16Ω
COM
70V 100V
+
-
a.
b.
+
-
Mini Satellite Loudspeaker JS-EST10
c.
+
-
