Installation Instruction

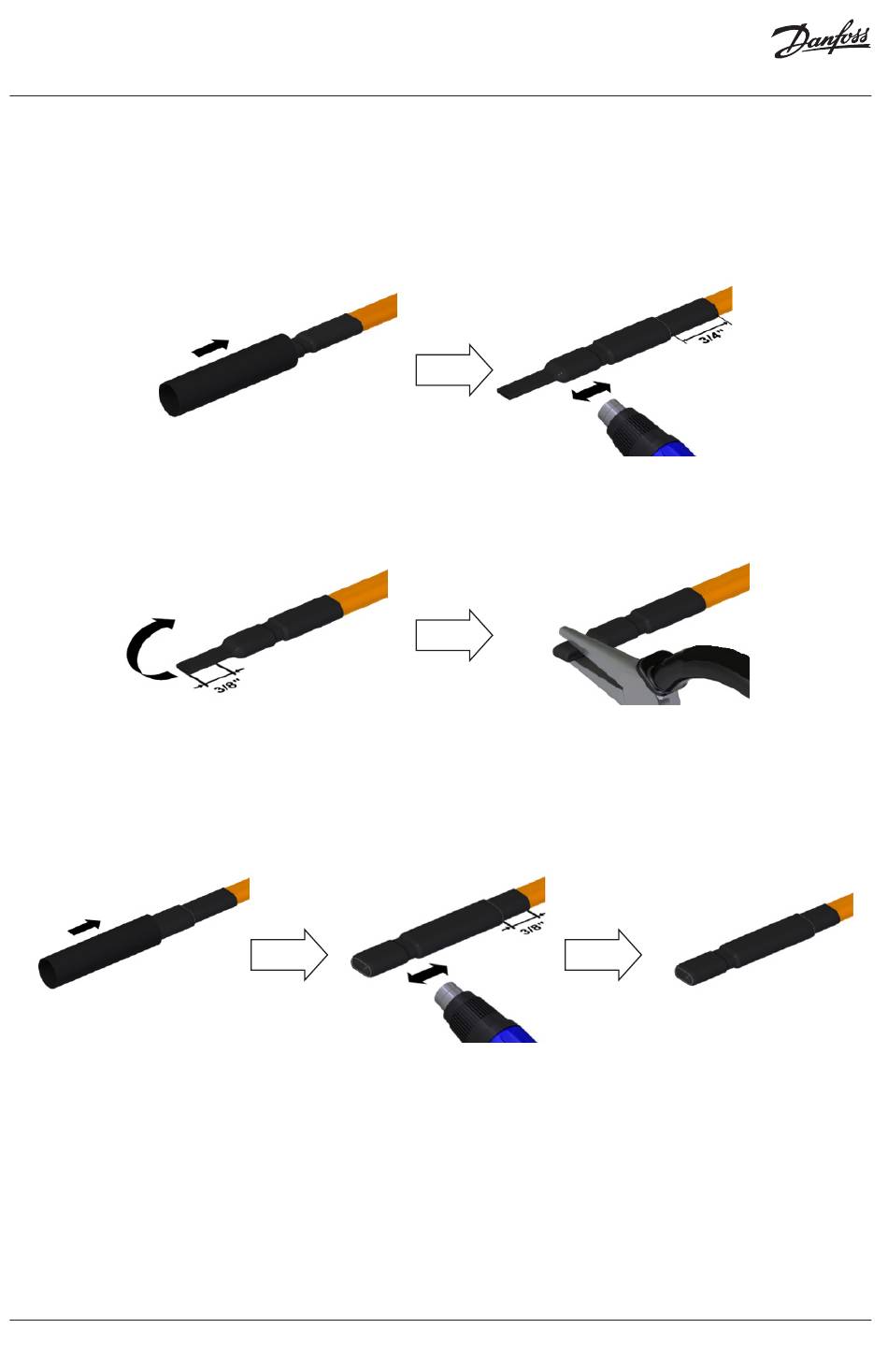

Now, put the first protection heat shrink tube (length: 2 ⅓" (60 mm); diameter: ¾" (19 mm) over the
end of the trace heater.
Leave a gap to the outer heat shrink tube of ¾" (20 mm).
Beginning at the end of the trace heater, shrink the tube at a temperature of 275 °F / 135 °C.
Fold over the overlapping end of the heat shrink tube ⅜" (10 mm).
Slightly press the end using pliers.
Now, put the second protection heat shrink tube
(length: 2 ⅓" (60 mm); diameter: ¾" (19mm)) over the end of the trace heater.
Leave a gap to the very first heat shrink tube of ⅜" (10 mm).
Beginning at the end of the trace heater, shrink the tube at a temperature of 275 °F / 135 °C.
9 | © Danfoss | 2021.11
End-termination - Heat shrink technology connection system
088L1457 & AN296061216351en-US0102
6
7
8
