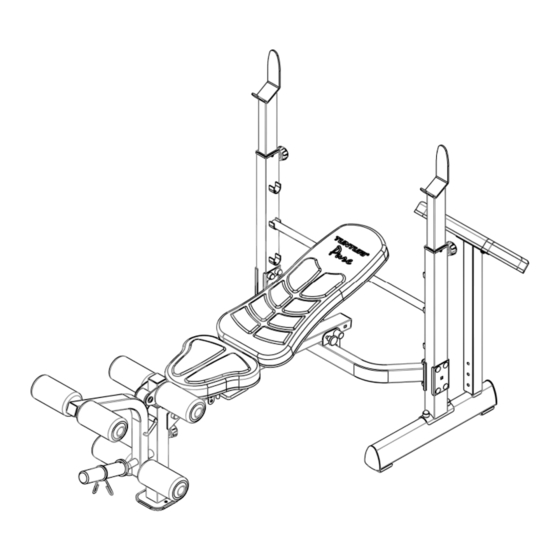

WEIGHT BENCH
140414
GB
IMPORTANT: Please read this manual before commencing assembly of this product.
NL
BELANGRIJKE: Lees deze handleiding aandachtig door alvorens dit product te monteren.
FR
IMPORTANT :Veuillez lire attentivement les instructions avant l'assemblage du produit
I
IMPORTANTE: leggere il presente manuale prima di iniziare a montare il prodotto.
DE
WICHTIG: Bitte lesen Sie dieses Handbuch, bevor Sie mit der Montage dieses Produkts beginnen
ES
IMPORTANTE: Lea este manual antes de comenzar a ensamblar el producto.
ВНИМАНИЕ: Пожалуйста, прочтите данное руководство перед сборкой изделия.
RU
All manuals and user guides at all-guides.com

Publicité

loading

Manuels Connexes pour Tunturi Pure

Sommaire des Matières pour Tunturi Pure

  • Page 1 All manuals and user guides at all-guides.com WEIGHT BENCH 140414 IMPORTANT: Please read this manual before commencing assembly of this product. BELANGRIJKE: Lees deze handleiding aandachtig door alvorens dit product te monteren. IMPORTANT :Veuillez lire attentivement les instructions avant l’assemblage du produit IMPORTANTE: leggere il presente manuale prima di iniziare a montare il prodotto.
  • Page 2 Table of Contents / Inhoudsopgave / Tables des Matieres / Sommario / Inhalt / Índice / Содержание English Nederlands P 11 Français P 20 Italiano P 29 Deutsch P 38 Español P 47 Русский язык P 56 Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 3 OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. TUNTURI NEW FITNESS B.V. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 4 NOTE: Do not over tighten any component with pivotal function. Make sure all pivotal components are able to move freely. Do not tighten all Nuts and Bolts in this step. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 5 All manuals and user guides at all-guides.com WARNING LABEL PLACEMENT Warning label affix here. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 6 6. Failure to examine regularly may affect the safety level of the equipment. WEIGHT CAPACITY AND DIMENSION 1. Maximum weight capacity (including user weight): 270kg. 2. Maximum weight on Crutch: 135kg 3. Maximum weight on Leg Developer: 45kg 4. Assembled Dimension: 1870mm x 1160mm x 1500mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 7 2. Lock the Leg Developer. 3. Pull out the Folding Lock Pin (#24) and raise the Main Seat Support to vertical position. 4. Insert the Folding Lock Pin back into the open hole on Cross Brace (#3). Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 8 Ø 49mm Standard Clip Ø 24.5mm Lock Knob Crutch Sleeve 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Foam Roll End Cap Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 9 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 10 All manuals and user guides at all-guides.com EXPLODED DIAGRAM Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 11 All manuals and user guides at all-guides.com LIMITED WARRANTY Tunturi New Fitness B.V. warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the frame and one year on all other parts and components from the date of purchase. This warranty extends only to the original purchaser.
  • Page 12 PERSONEN OUDER PERSONEN BEPAALDE GEZONDHEIDSKLACHTEN. LEES ALLE INSTRUCTIES VOORDAT FITNESSAPPARATUUR GEBRUIKT. TUNTURI NEW FITNESS BV IS NIET AANSPRAKELIJK VOOR PERSOONLIJK LETSEL SCHADE EIGENDOMMEN VEROORZAAKT DOOR OF TEN GEVOLGE VAN HET GEBRUIK VAN DIT PRODUCT. BEWAAR DEZE INSTRUCTIES GOED. Tunturi Pure Strength...
  • Page 13 Draai de bouten en moeren pas aan nadat alle componenten zijn gemonteerd. BELANGRIJK! Componenten die moeten kunnen scharnieren, mogen niet te strak worden aangedraaid. Alle scharnierende componenten moeten vrij kunnen bewegen Draai de bouten en moeren in deze stap niet aan. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 14 All manuals and user guides at all-guides.com LOCATIE VAN HET WAARSCHUWINGSLABEL Plaats waarschuwingslabel hier. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 15 MAXIMALE BELASTING EN AFMETINGEN 1. Maximum capaciteit gewicht (inclusief gebruikersgewicht): 270kg. 2. Maximum weight op pilaar: 135kg 3. Maximum weight op Leg Developer: 45kg 4. Geassembleerde Afmeting (L x B x H): 187cm x 116cm x150cm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 16 2. Vergrendel de Leg Developer. 3. Trek de vergrendelingspin voor opklappen (#24) eruit en zet de ondersteuner van de zitting in vertical positie. 4. Plaats de vergrendelingspin voor opklappen terug in het open gat op het steunkruis. (#3). Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 17 Ø 49mm Standard Clip Ø 24.5mm Lock Knob Crutch Sleeve 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Foam Roll End Cap Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 18 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 19 All manuals and user guides at all-guides.com OVERZICHTSSCHEMA Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 20 All manuals and user guides at all-guides.com BEPERKTE GARANTIE Tunturi New Fitness garandeert dat dit product, bij normaal gebruik en onderhoud, vrij is van defecten in materiaal en fabricage voor een periode van twee jaar op het frame en één jaar op alle andere onderdelen en componenten na de datum van aankoop.
  • Page 21 AGE(E) DE 35 ANS OU SI VOUS AVEZ DES ANTECEDENTS MEDICAUX PREEXISTENTS. LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER N’IMPORTE QUEL EQUIPMENT. TUNTURI NEW FITNESS BV DECLINE TOUTE RESPONSABILITE POUR DES BLESSURES PERSONELLES OU DEGATS DE MATERIELS CAUSES PAR L’UTILISATION DE CE PRODUIT.
  • Page 22 étape ou les étapes précédentes sont assemblées. NB: Ne pas trop serrez les pièces qui doivent pivoter. Vérifiez que toutes les pièces a pivot puissent pivoter. Ne pas serrez les boulons pendant cette étape. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 23 All manuals and user guides at all-guides.com ETIQUETTE D’AVERTISSEMENT COLLER L’ETIQUETTE D’AVERTISSEMENT ICI Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 24 CHARGE ET DIMENSIONS 1. Charge maximale (poids de l'utilisateur compris) : 270kg. 2. Charge maximale sur chandelle : 135kg 3. Poids maximal sur le développeur de jambes : 45kg 4. Dimensions assemblé : 1870mm x 1160mm x 1500mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 25 2. Verrouillez le développeur de jambes. 3. Retirez la goupille d'arrêt (n° 24) et amenez le support de siège principal en position verticale. 4. Réinsérez la goupille d'arrêt dans le trou ouvert sur la barre transversale (n° 3). Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 26 Cross Brace Bracket Olympic Clip Ø 49mm Standard Clip Ø 24.5mm Lock Knob Crutch Sleeve 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 27 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 28 All manuals and user guides at all-guides.com SCHÉMA ÉCLATÉ Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 29 All manuals and user guides at all-guides.com GARANTIE Tunturi New Fitness BV garantie que ce produit est sans défaut de fabrication, pour toutes usage normal ce produit est garanti a partir du moment d’achat pour 2 ans sur le châssis et 1 an pour les pièces d’usage. Cette garantie s’entend uniquement à...
  • Page 30 IN PARTICOLARE PER PERSONE DI ETÀ SUPERIORE A 35 ANNI O CON PROBLEMI DI SALUTE PREESISTENTI. LEGGERE TUTTE LE ISTRUZIONI PRIMA DI UTILIZZARE ATTREZZATURE PER IL FITNESS. TUNTURI NEW FITNESS BV NON SI ASSUME ALCUNA RESPONSABILITÀ PER EVENTUALI LESIONI PERSONALI O DANNI MATERIALI SOSTENUTI PER CAUSA O ATTRAVERSO L'USO DEL PRESENTE PRODOTTO.
  • Page 31 NOTA: non serrare eccessivamente i componenti che fungono da cardine. Assicurarsi che tutti i componenti che fungono da cardine possano muoversi liberamente. Non serrare i dadi e i bulloni in questa fase. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 32 All manuals and user guides at all-guides.com POSIZIONE DELLE ETICHETTE DI AVVERTENZA APPLICARE QUI L'ETICHETTA DI AVVERTENZA Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 33 CARICO E DIMENSIONI 1. Carico massimo (incluso il peso dell'utente): 270kg. 2. Carico massimo su gruccia: 135kg 3. Carico massimo su leg developer: 45kg 4. Dimensione montata: 1870mm x 1160mm x 1500mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 34 2. Bloccare il Leg developer. 3. Togliere il perno di bloccaggio pieghevole (#24) e sollevare il supporto del edile principale in posizione verticale. 4. Reinserire il perno di bloccaggio pieghevole nel foro aperto sulla barra incrociata (#3). Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 35 Lock Knob Crutch Sleeve 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Foam Roll End Cap Bushing Ø 50mm x Ø 16mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 36 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 37 All manuals and user guides at all-guides.com VISTA ESPLOSA Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 38 All manuals and user guides at all-guides.com GARANZIA LIMITATA Tunturi New Fitness BV garantisce che questo prodotto è esente da difetti di fabbricazione e del materiale, in normali condizioni di uso e servizio, per due anni sul telaio e un anno su tutte le altre parti e i componenti a partire dalla data di acquisto.
  • Page 39 TRAINING BEGINNEN. DAS IST BESONDERS WICHTIG FÜR PERSONEN ÜBER 35 UND PERSONEN MIT BESTEHENDEN GESUNDHEITSPROBLEMEN. LESEN ALLE ANWEISUNGEN, BEVOR TRAININGSGERÄTE BENUTZEN. TUNTURI FITNESS HAFTET NICHT FÜR PERSÖNLICHE VERLETZUNGEN ODER SACHSCHADEN, DIE DURCH VERWENDUNG DIESES PRODUKTS ENTSTEHEN. BEWAHREN SIE DIESE ANLEITUNGEN AUF. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 40 Komponenten im laufenden und vorherigen Schritt montiert wurden. ANMERKUNG: Komponenten mit Drehfunktion dürfen nicht zu fest angezogen werden. Stellen Sie sicher, dass sich alle Drehkomponenten frei bewegen können. Muttern und Bolzen dürfen in diesem Schritt noch nicht festgezogen werden. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 41 All manuals and user guides at all-guides.com PLATZIEREN DER WARNSCHILDER WARNSCHILD HIER ANBRINGEN Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 42 1. Maximale Tragkraft (einschl. Gewicht des Benutzers): 270 kg 2. Maximales Gewicht am Ständer: 135 kg 3. Maximales Gewicht auf dem Beinentwickler: 45 kg 4. Abmessungen im montierten Zustand: 1870 mm x 1160 mm x 1500 mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 43 2. Befestigen Sie den Beinentwickler. 3. Ziehen Sie den Schlossstift zum Zusammenklappen (Nr. 24) heraus und heben Sie die Hauptsitzstütze in die vertikale Position. 4. Stecken Sie den Schlossstift zum Zusammenklappen in das offene Loch an der Querstrebe (Nr. 3). Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 44 Cross Brace Bracket Olympic Clip Ø 49mm Standard Clip Ø 24.5mm Lock Knob Crutch Sleeve 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 45 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 46 All manuals and user guides at all-guides.com EXPLOSIONSZEICHNUNG Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 47 All manuals and user guides at all-guides.com BESCHRÄNKTE GARANTIE Tunturi New Fitness BV garantiert für zwei Jahre ab Kaufdatum, dass dieser Rahmen unter normalen Einsatz- Servicebedingungen frei Verarbeitungs- und Materialfehlern ist, und gibt eine einjährige Garantie für alle anderen Teile und Komponenten. Diese Garantie gilt nur für den Originalkäufer.
  • Page 48 QUIENES TENGAN MÁS DE 35 AÑOS O TENGAN PROBLEMAS DE SALUD PREEXISTENTES. LEA TODAS LAS INSTRUCCIONES ANTES DE USAR CUALQUIER EQUIPO DE EJERCICIO. TUNTURI NEW FITNESS BV NO ASUME RESPONSABILIDAD ALGUNA POR LESIONES PERSONALES O DAÑO A LA PROPIEDAD QUE PODRÍA PROVOCAR EL USO DE ESTE PRODUCTO.
  • Page 49 NOTA: No ajuste en exceso ningún componente que haga movimientos giratorios. Asegúrese de que todos los componentes giratorios puedan moverse libremente No ajuste todos los pernos y tuercas en este paso. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 50 All manuals and user guides at all-guides.com UBICACIÓN DE LA ETIQUETA DE ADVERTENCIA COLOCAR AQUÍ LA ETIQUETA DE ADVERTENCIA Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 51 1. Peso máximo admisible (incluyendo el peso del usuario): 270 kg 2. Peso máximo sobre apoyo: 135 kg 3. Peso máximo en el ejercitador de piernas: 45 kg 4. Dimensiones montado: 1870 mm x 1160 mm x 1500 mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 52 3. Extraiga el pasador de bloqueo de plegado (n.º 24) y eleve el soporte del asiento principal hasta la posición vertical. 4. Inserte el pasador de bloqueo de plegado en el orificio abierto situado en la barra transversal(n.º 3). Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 53 Ø 49mm Standard Clip Ø 24.5mm Lock Knob Crutch Sleeve 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Foam Roll End Cap Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 54 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 55 All manuals and user guides at all-guides.com DIAGRAMA ESQUEMÁTICO Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 56 All manuals and user guides at all-guides.com GARANTÍA LIMITADA Tunturi New Fitness BV garantiza que este producto no posee defectos en la mano de obra y el material, bajo condiciones de uso y servicio normales, durante un período de dos años respecto del armazón y de un año respecto del resto de las piezas y los componentes, ambos períodos a ser contados desde la fecha de...
  • Page 57 НА СКАМЬЕ СЛЕДУЕТ ПРОКОНСУЛЬТИРОВАТЬСЯ С ВРАЧЕМ. ЭТО ТРЕБОВАНИЕ ОСОБО ВАЖНО ДЛЯ ЛИЦ СТАРШЕ 35 ЛЕТ И ДЛЯ ЛИЦ, ИМЕВШИХ ПРОБЛЕМЫ СО ЗДОРОВЬЕМ. ПЕРЕД ИСПОЛЬЗОВАНИЕМ ЛЮБОГО СПОРТИВНОГО ОБОРУДОВАНИЯ НУЖНО ВНИМАТЕЛЬНО ПРОЧИТАТЬ ВСЕ ПУНКТЫ ИНСТРУКЦИИ. КОМПАНИЯ TUNTURI NEW Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 58 Аккуратно затяните все гайки и болты после присоединения всех частей, описанных в данном этапе и ранее. ПРИМЕЧАНИЕ: Не затягивайте слишком сильно вращающиеся элементы. Убедитесь, что все вращающиеся элементы могут свободно вращаться. Не затягивайте все гайки и болты на данном этапе. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 59 All manuals and user guides at all-guides.com РАСПОЛОЖЕНИЕ ПРЕДУПРЕДИТЕЛЬНОЙ ЭТИКЕТКИ Предупреждающую надпись разместить здесь. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 60 1. Максимальная нагрузка (включая вес пользователя): 270 кг 2. Максимальная нагрузка на раздвоенную опору: 135 кг 3. Максимальная нагрузка на устройство экстензии ног: 45 кг 4. Габариты в собранном виде: 1870 x 1160 x 1500 мм Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 61 1. Установите ручку (8) регулировки спинки в самое низкое углубление на стойке. 2. Зафиксируйте устройство экстензии ног. 3. Вытяните фиксатор (24) для складывания и установите опору главного сиденья вертикально. 4. Вставьте фиксатор для складывания в открытое отверстие на подпорке (3) стоек. Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 62 65mm x 32mm End Cap 45mm x 45mm End Cap 50mm x 50mm End Cap 40mm x 60mm Sleeve 60mm x 50mm Foam Roll End Cap Bushing Ø 50mm x Ø 16mm End Cap 25mm x 25mm Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 63 Ø 28mm x Ø13mm Washer Ø 20mm x Ø10.5mm Washer Ø 16mm x Ø8.4mm Washer Ø 6mm Washer Ø 25mm x 11mm Aircraft Nut Aircraft Nut Sleeve Ø 28mm x 200mm Sleeve Ø 30mm x 200mm Lock Pin Cover Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 64 All manuals and user guides at all-guides.com РАЗНЕСЕННЫЙ ЧЕРТЕЖ Tunturi Pure Strength www.tunturi-fitness.com...
  • Page 65 неестественного использования, самостоятельного ремонта и использования в рекламных и коммерческих целях. Компания Tunturi New Fitness BV признает лишь действие гарантии, описанной в данном документе. Компания Tunturi New Fitness BV не несёт ответственности за любые косвенные, особые или побочные убытки, возникающие из или в связи с использованием/исполнением...
  • Page 66 All manuals and user guides at all-guides.com Tunturi New Fitness B.V. P.O. Box 60001 1320 AA Almere The Netherlands www.tunturi-fitness.com service.international@tunturi-fitness.com Tunturi Pure Strength www.tunturi-fitness.com...
