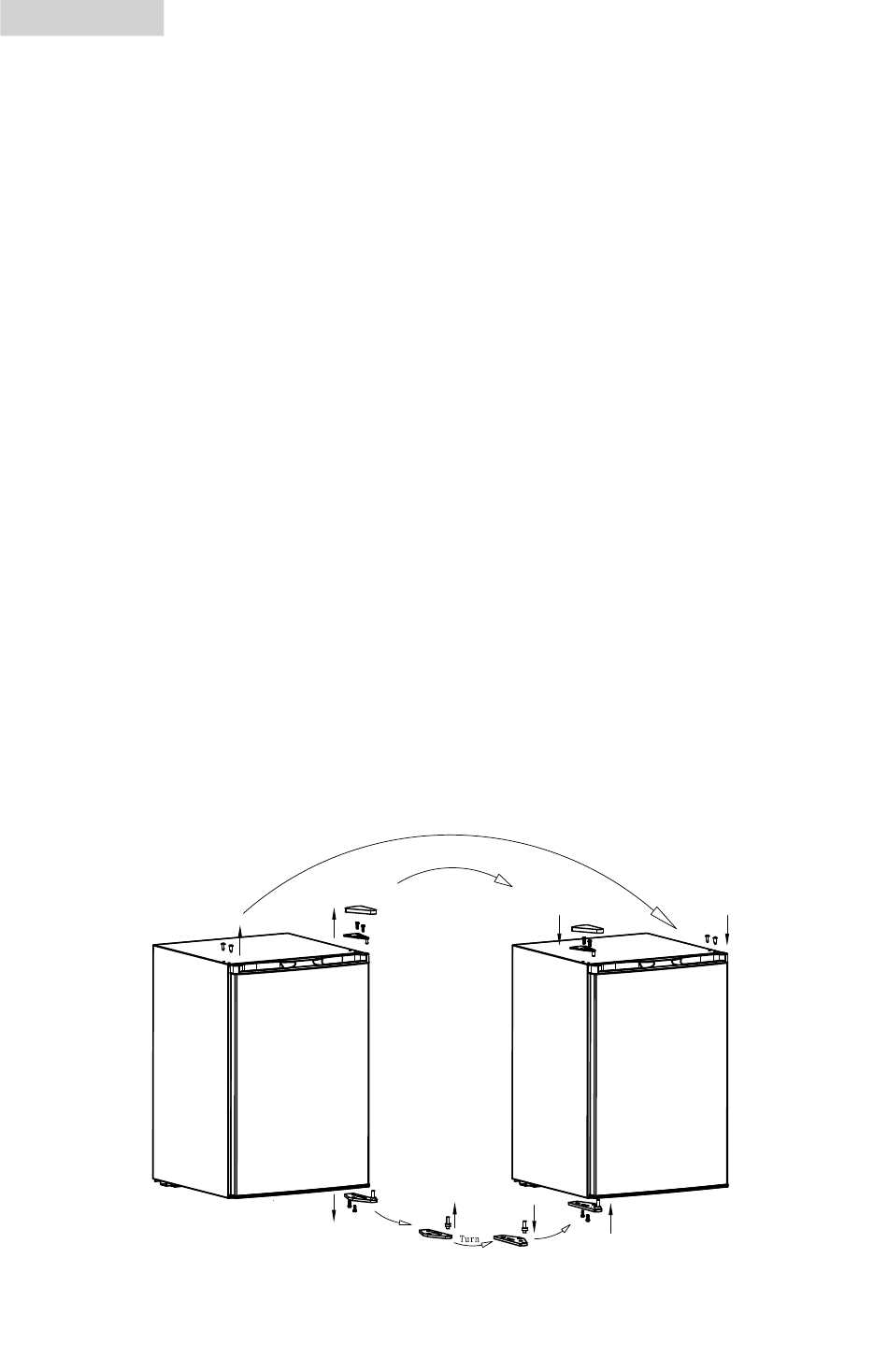

Reversing the Door Hinge

1. Remove the top hinge cover.
2. Using Phillips Head Screwdriver, loosen and remove the screws holding the
top hinge in place.
3. Remove top hinge and carefully lift off the door.
4. Remove the screw hole plugs from the opposite side and insert the plugs in
the screw hole openings of the just removed screws.
5. Remove any loose items in the refrigerator and carefully turn refrigerator on
its back and place in a secure area.
6. Loosen the screws holding the lower hinge bracket to the refrigerator and
remove screws and bracket.
7. Remove (2) screws from the other side and insert in the previously removed
screw holes.
8. Remove door pin by turning counter clockwise and reinsert to the underside
of the bracket and tighten.
9. Align bracket and insert (2) remaining screws into the holes provided .
10. Align hole in the door with the door pin and washer and gently push down
until firm.
11. Align upper hinge bracket with screw holes insert screws and partially
secure, check that door and cabinet are properly aligned and then secure
tightly.
12. Replace hinge cap.
