OPERATION INSTRUCTIONS

DRIVE BELT REPLACEMENT

WARNING Entanglement Hazard - Before performing any service procedures, make sure
the snow thrower is disconnected from the power source.
Note: Record component position before disassembly, to assist in reassembly.

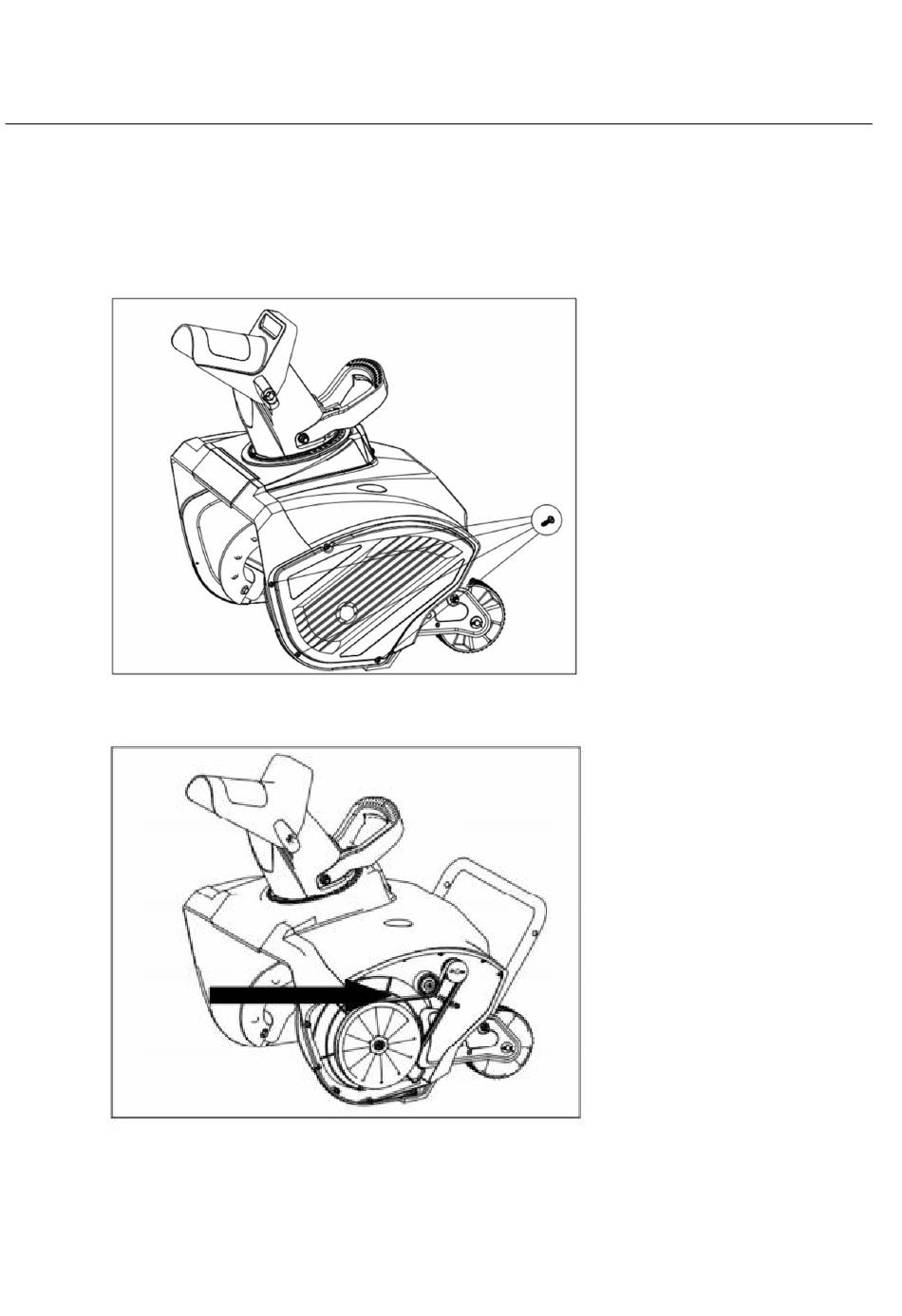

1. Using Phillips screw driver, remove 4 screws attaching belt cover to housing.
2. Manually push the belt tension pulley up to reduce belt tension.
Note: When replacing the belt it is important to determine the cause of the failure (if
applicable) and take corrective action to avoid repeated failure.
3. Inspect the old belt, pulleys and tension spring before installing a new belt for damage
and wear, replace parts as required.
17
