Buckle on the base
3-Axis:
For 3-Axis, after adjusting the lens horizontally and vertically (see step 5), you can
also rotate the lens clockwise or counterclockwise to get the desired monitoring
direction. Please stop rotating the camera when the lens is blocked, otherwise the
camera lens might be damaged.
Buckle on the base
7.

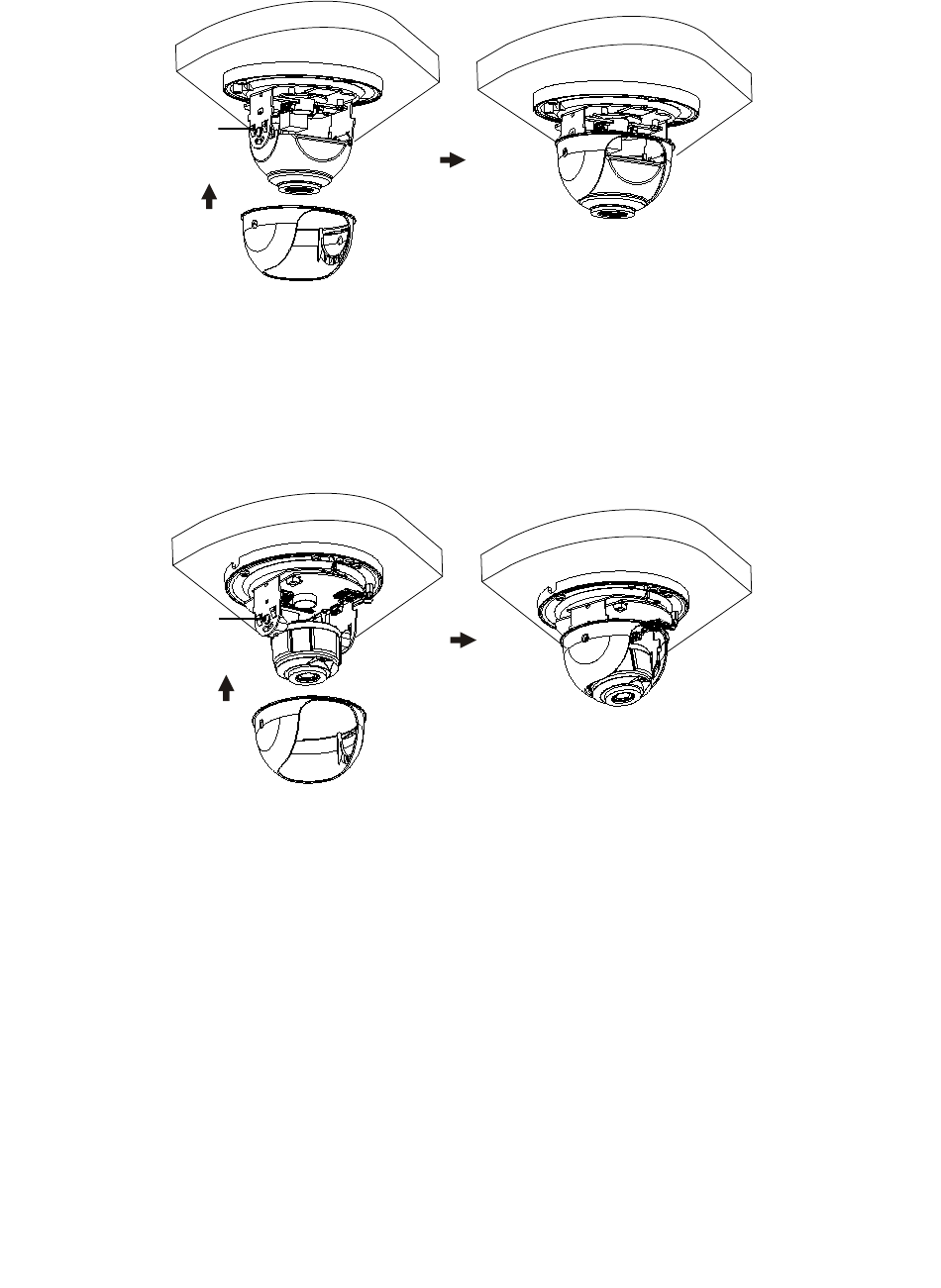

Mount the transparent dome housing.
(1)
Align the screw holes in the base, and tighten the two cross-recessed pan-
head screws on the edge of the transparent dome housing to fix it, as shown
by  in the following figure.
(2)
Align the grooves (non-tail cable grooves) of the transparent dome housing
to the buckle of the base, and push up the dome housing to fix it, as shown
by  in the following figure.
