4.

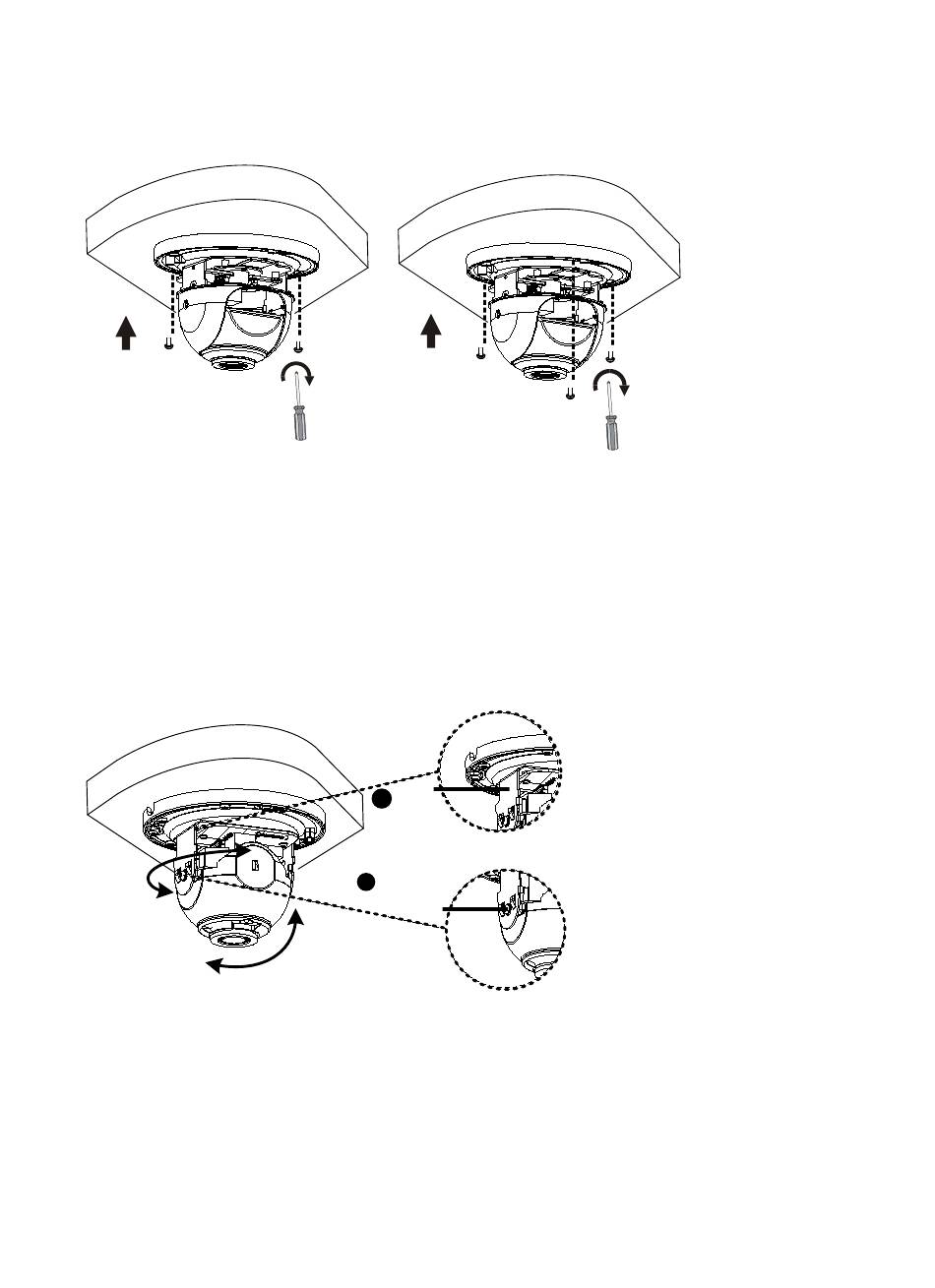

Mount the camera. Connect all cables of the ceiling and the camera, lead self-
tapping screws through the guide holes in the camera base, and fix the camera
on the ceiling by using a screwdriver.
5.
Adjust the monitoring direction of the lens (tighten screws after vertically
adjusting the lens). The lens can horizontally turn by rotating the lens base, as
shown by in the following figure. After loosening the fastening screws, you
can vertically turn the lens, as shown by in the following figure.
6.
Attach the lining and lock it into the buckle on the base. The following shows the
installation instructions of cameras 2-Axis and 3-Axis. The linings are different.
Please see the actual products for the differences.
2-Axis:
Lens
1
base
2
Fastening
screw
7
