Items Required for Installation

Tools:
Drill, drill bits, Screwdriver, tube cutter, adjustable wrench, Phillips Offset
Screwdriver, and vinyl gloves .
Parts not included in package:
Inlet shut off valve, PTFE Thread Sealant Tape, 1/4 inch O.D. tubing,
additional 3/8 inch O.D. tubing and mounting screws.

Installation Location

For your convenience, the Ultrefiner II bracket assembly is designed to be
mounted on either side of the cabinet, with the tubing ports pointing to
the back.
Kitchen Sink Installation
• Systems being mounted under a kitchen sink require an air gap faucet.
See figure 3.

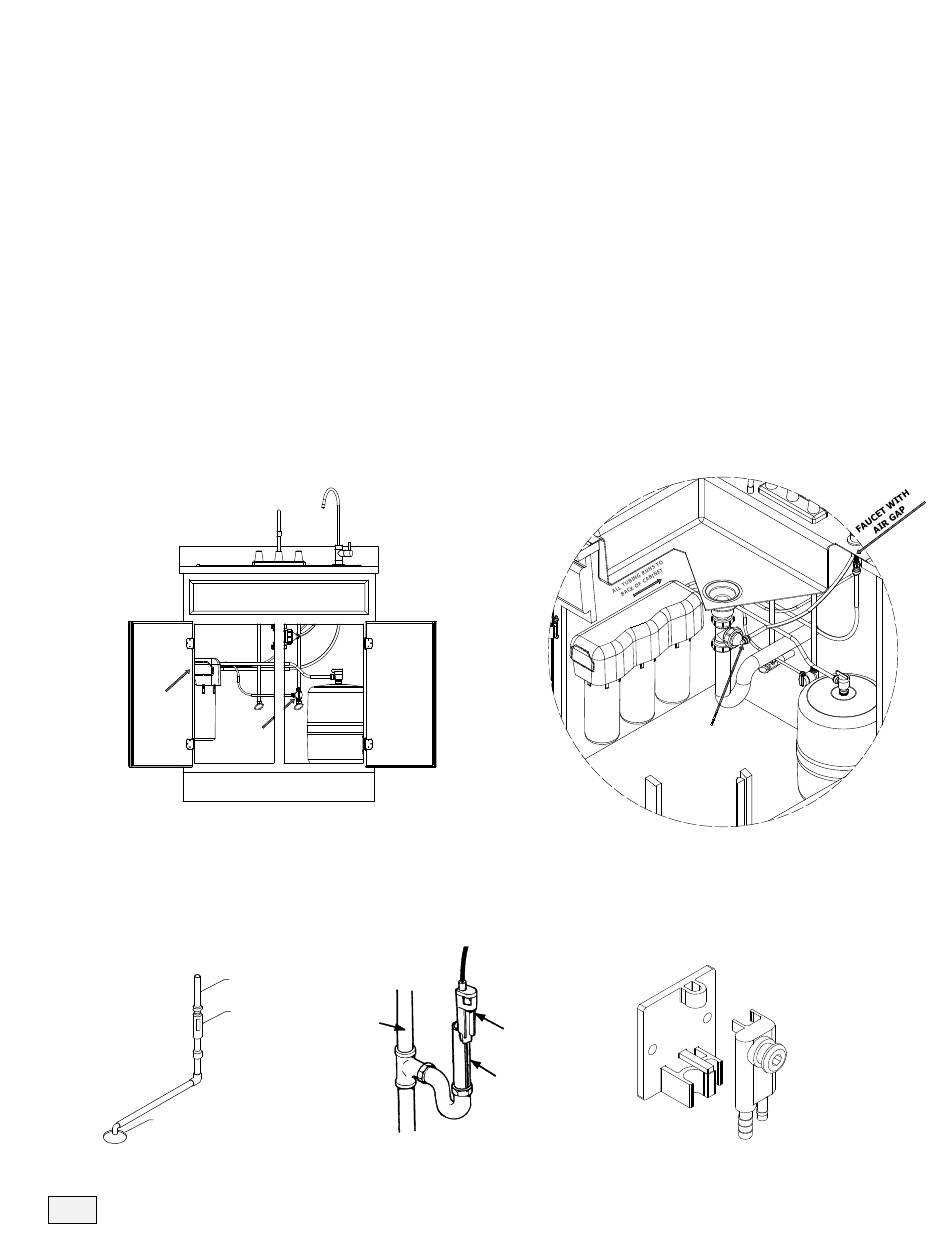

Figure 3
REVERSE OSMOSIS
MOUNTED
UNDER SINK
INLET VALVE
CONNECTED TO
COLD WATER LINE
Wall Mount or Other
• Systems being mounted in different location than under a kitchen sink
can use a non air gap faucet with the drain line connecting to a separate
air gap device.
1/2 " DRAIN LINE
GAP−A−FLOW AIR GA
FLOOR DRAIN
AIR GAP - floor drain
6
STORAGE TANK
DRAIN
STACK
AIR GAP - Mr. Drain
!
Important Notes:
The tubing used for installation must be of
food grade type. John Guest or Parker brand
tubing is recommended for their compatibility
with the fittings on your system.
CONNECTION
FROM AIR GAP
FAUCET
"Mr. Drain"
AIR GAP
STAND PIPE
FOR
WASHER,
AIR GAP - Wall Mount
DRAIN
