Oce VarioLink 4550p Guide D'installation page 4

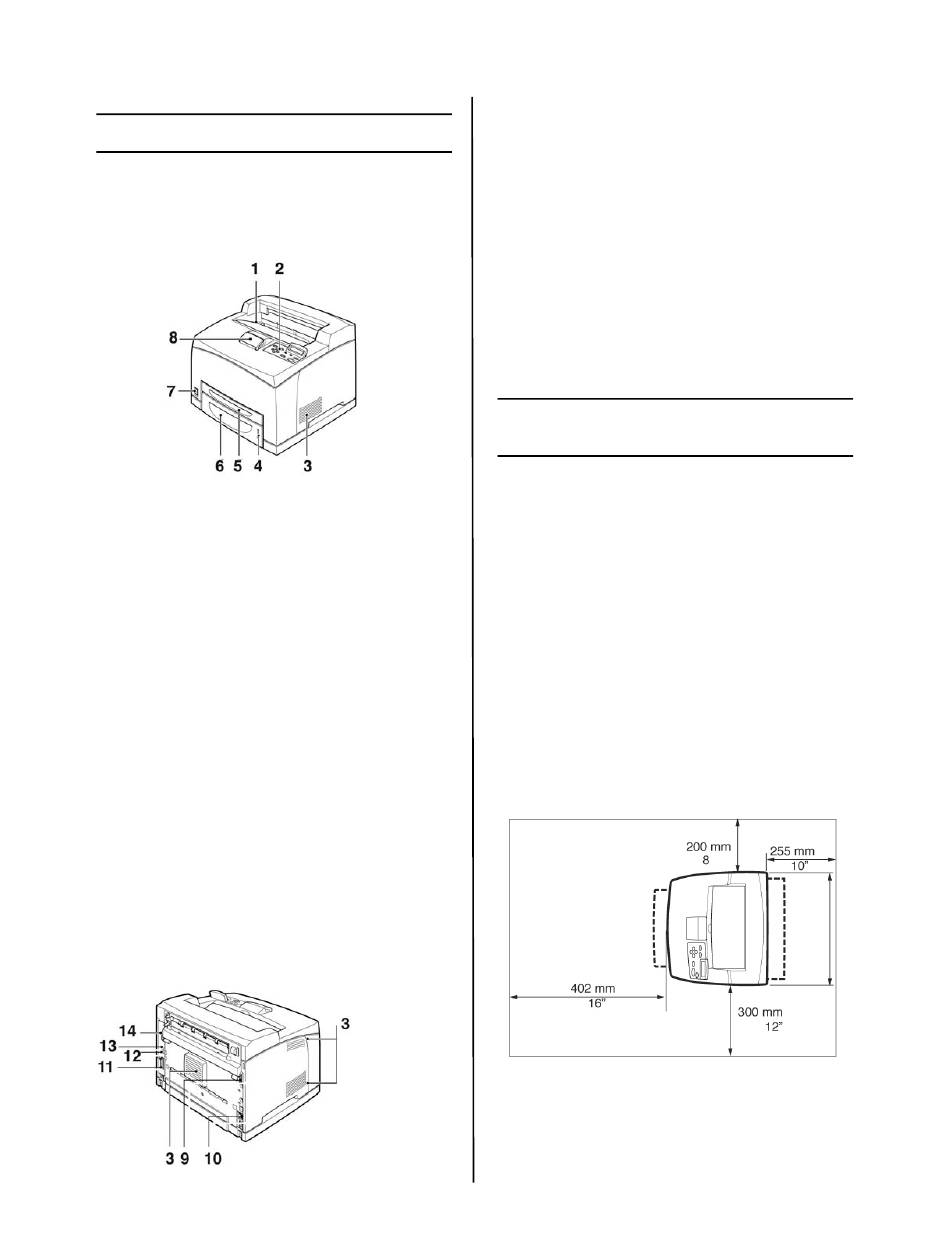

Locating parts of the printer
The main parts of the printer and a brief
description of their functions are shown
below:
1 Center output tray
Print jobs are output here with printed side
facing down.
2 Control panel
Consists of the control buttons, indicators and
display.
For control panel details, refer to "The Control
Panel and Menu system" on page 8.
3 Ventilation slots
Provide ventilation for the interior of the printer.
4 Paper level indicator
Indicates the level of the remaining paper in the
550-sheet paper tray.
5 Tray 1
Holds 150 sheets of paper.
6 Tray 2
Holds 550 sheets of paper.
7 Power switch
Switches the printer power on and off.
8 Extension output tray
Pull this tray out to print on paper larger than
Letter.
9 Duplex unit connector
10 Power cord connector
11 Parallel connector
12 Network connector
13 USB connector
14 Serial connector
Preparing a location for the
printer
Place the machine on a level and sturdy
surface that can withstand the machine
weight, 22.6 kg (50lb). If tilted, the machine
may fall over and cause injuries.
Space requirements
The printer has ventilation holes on the side
and rear panels. Ensure that the printer is
installed with a minimum clearance of 255mm
(10in) from the rear vent to any wall, 200mm
(8in) from the left vent to any wall, and
300mm (12in) from the right vent to any wall.
A poorly ventilated machine can cause
excessive internal heat and fire. The following
diagram shows the minimum clearances
required for normal operation, consumables
replacement, and maintenance to ensure
your machine operates at peak performance.
Environment
Ensure that the installation location meets
the following conditions:
VarioLink 4550p Series Setup Guide
English - 4
For connecting the duplex unit (option).
For connecting the power cord.
For connecting a parallel cable.
For connecting the network cable when using
the printer as a network printer. (The Network
Software Kit option needs to have been installed
to enable networking capability.)
For connecting a USB cable.
For connecting a serial cable.
