Bracket Mounting:

1. Select a mounting location for the unit on a flat surface.

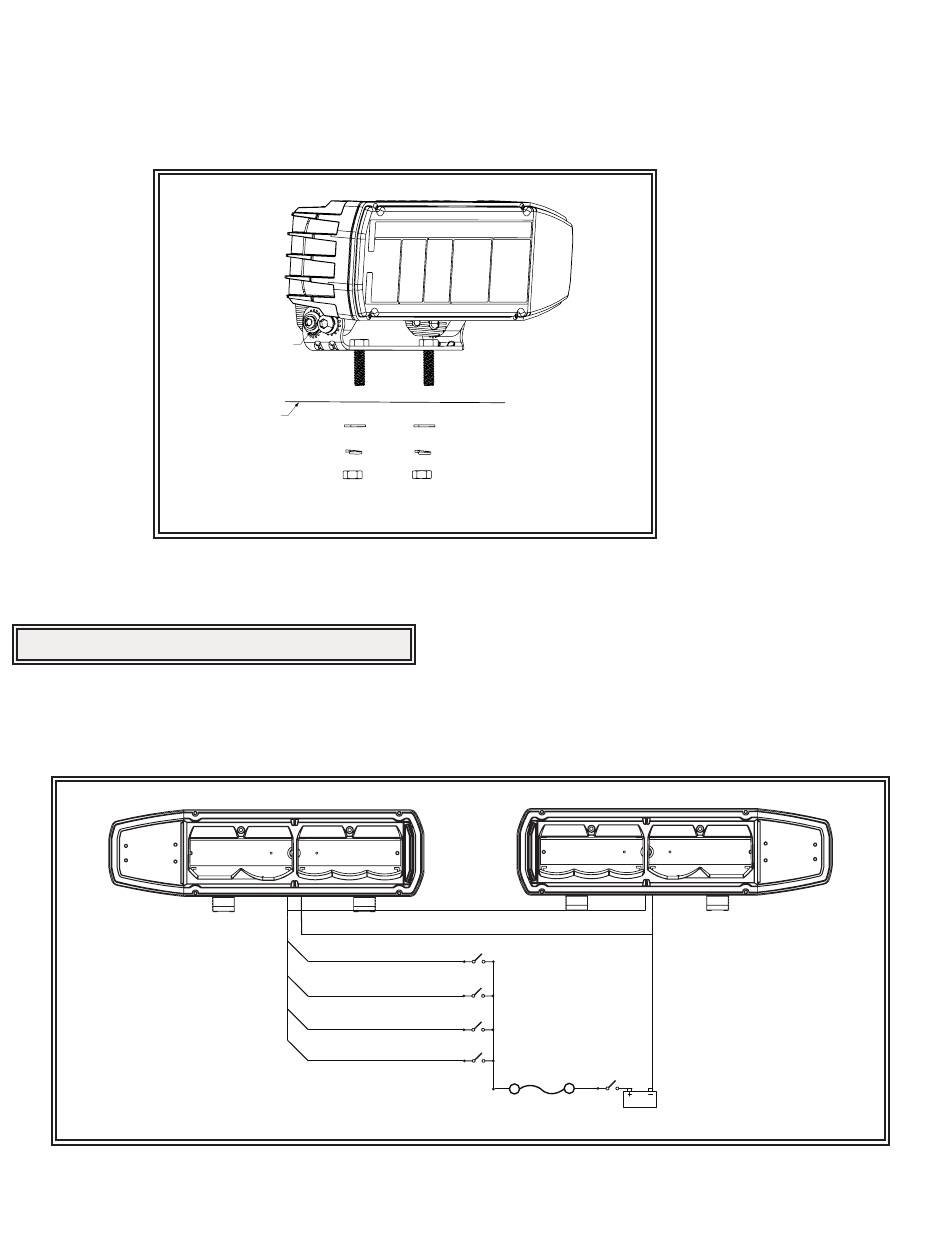

2. Secure the light head with the supplied hardware as shown in Figure 1. Adjust the beam angle as needed before ensuring all hardware is
tightened.
Aiming Instructions:
Installer is responsible for ensuring the headlights are aimed properly such that beams comply with current highway regulations. Beams should
project the same distance ahead as compliant OEM headlights.

Wiring Instructions:

Important! Disable power before wiring the product.
The wiring configuration is as shown in Figure 2. Use the supplied mating connector All wiring should be a minimum of 16 AWG. The positive line
must have a slow blow 25 amp fuse. Routing the ground wire directly back to negative battery terminal is recommended. Pack dielectric grease,
such as Dow Corning 4, around each electric connection exposed to moisture or the ambient environment.
Loosen on both sides
to adjust beam angle
MOUNTING SURFACE
Image shown: EZ4009-R. Ensure LEDs reflect onto the roadway.
FIGURE 1
Ground (-) (Black)
High Beams (Red)
Low Beams (Yellow)
Parking Light (Green)
Indicator Light (Grey)
Ignition
Switch
25A In-line
Fuse
FIGURE 2
