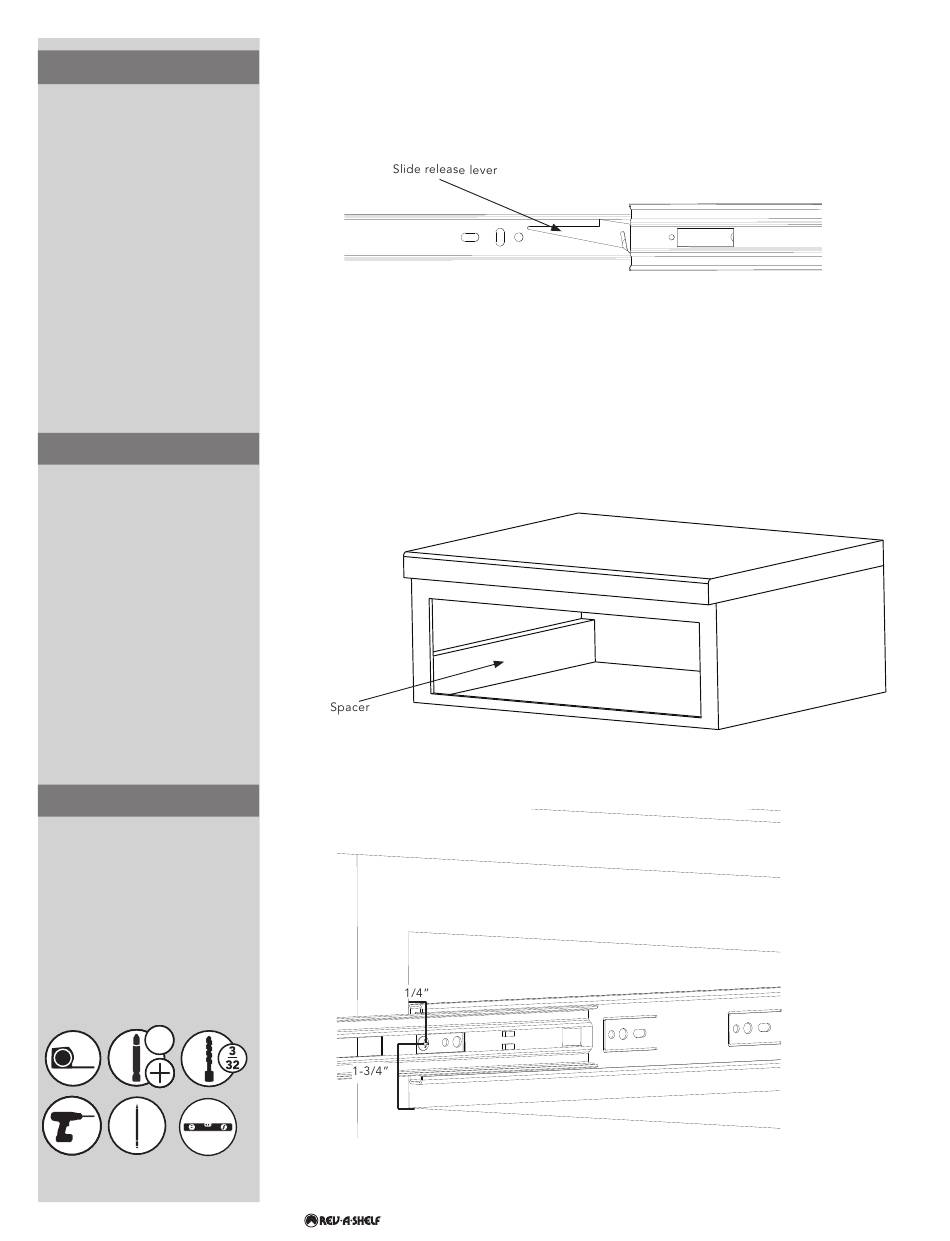

STEP 1
Notes: Designed for closet
and vanity cabinets with
minimum width openings
ranging from 14-1/4" (362
mm) and 21" (533 mm) and
depths of 16" (406 mm) (CIB-
16CR) and 20" (508 mm) (VIB-
20CR).
Units are NOT compatible
with inset cabinetry.
Disengage the ball-bearing
slides by extending them fully,
depressing the slide release
levers, and pulling the unit
away from the slide assembly
(See Figure A).
STEP 2
Frameless cabinets skip to
step 3.
For face frame cabinets
create a pair of side spacers
by cutting a piece of wood at
least 2-1/2" tall and as thick as
the face frame (See Figure B).
STEP 3
Mark the front mounting hole
location by measuring up
1-3/4" from the lowest point
of your opening and back ¼"
from the front of the opening.
Pre-drill holes, making sure
slide is level, and secure using
(6) #8 x 5/8" flat head screws
(See Figure C).
#2
#2
#2
2
FIG. A
FIG. B
FIG. C
Customer Service: 800-626-1126 | rev-a-shelf.com
