MEGA 360 ICE ADAPTER Installation Guide
| Routing the Cables
3
1. Connect the power cable to the power cable connector on the pod shaft, and connect the
transducer cable to the transducer cable connector on the pod shaft.
The connectors are keyed to prevent reversed installation, so be careful not to force the
connectors. Hand-tighten the screw nuts on each connector.
2. Sonar: Insert the transducer adapter cable to the transducer port on the HELIX control head.
3. Power: Install an inline fuse holder and a 1 Amp fuse (not included) for the protection of the
unit. Attach the black wires to ground (-), the red wire to positive (+) 12 VDC power.
NOTE: Humminbird is not responsible for over-voltage or over-current failures. The MEGA
360 Imaging transducer must have adequate protection through the proper selection and
installation of a 1 Amp fuse.

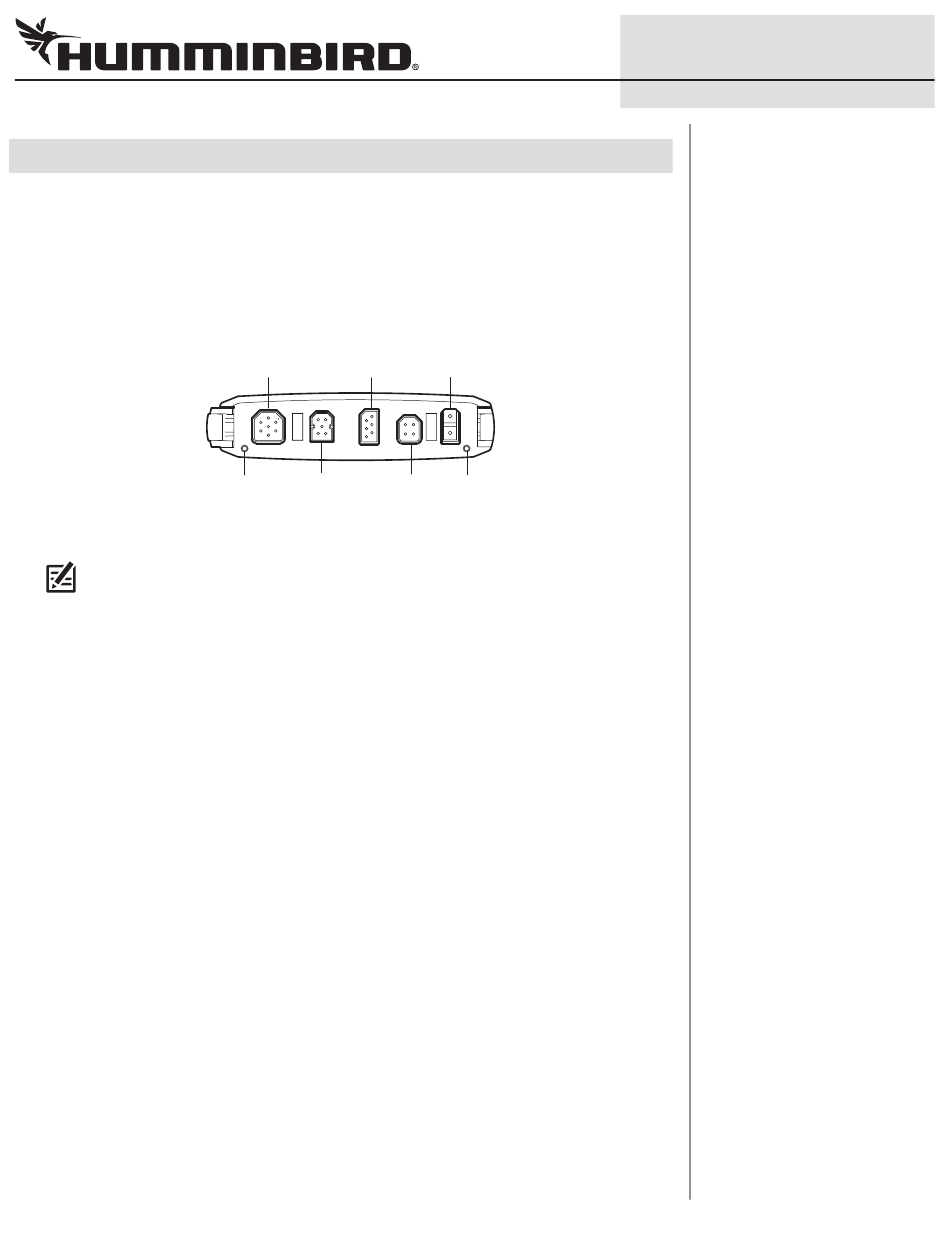

HELIX 8, 9, 10, 12 Cable Tray
COM
(communications)
transducer
pin Ethernet temp/speed
power
pin
