3.1 User Interface

USER MANUAL | MANUEL D'UTILISATION | РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ | KULLANIM KILAVUZU

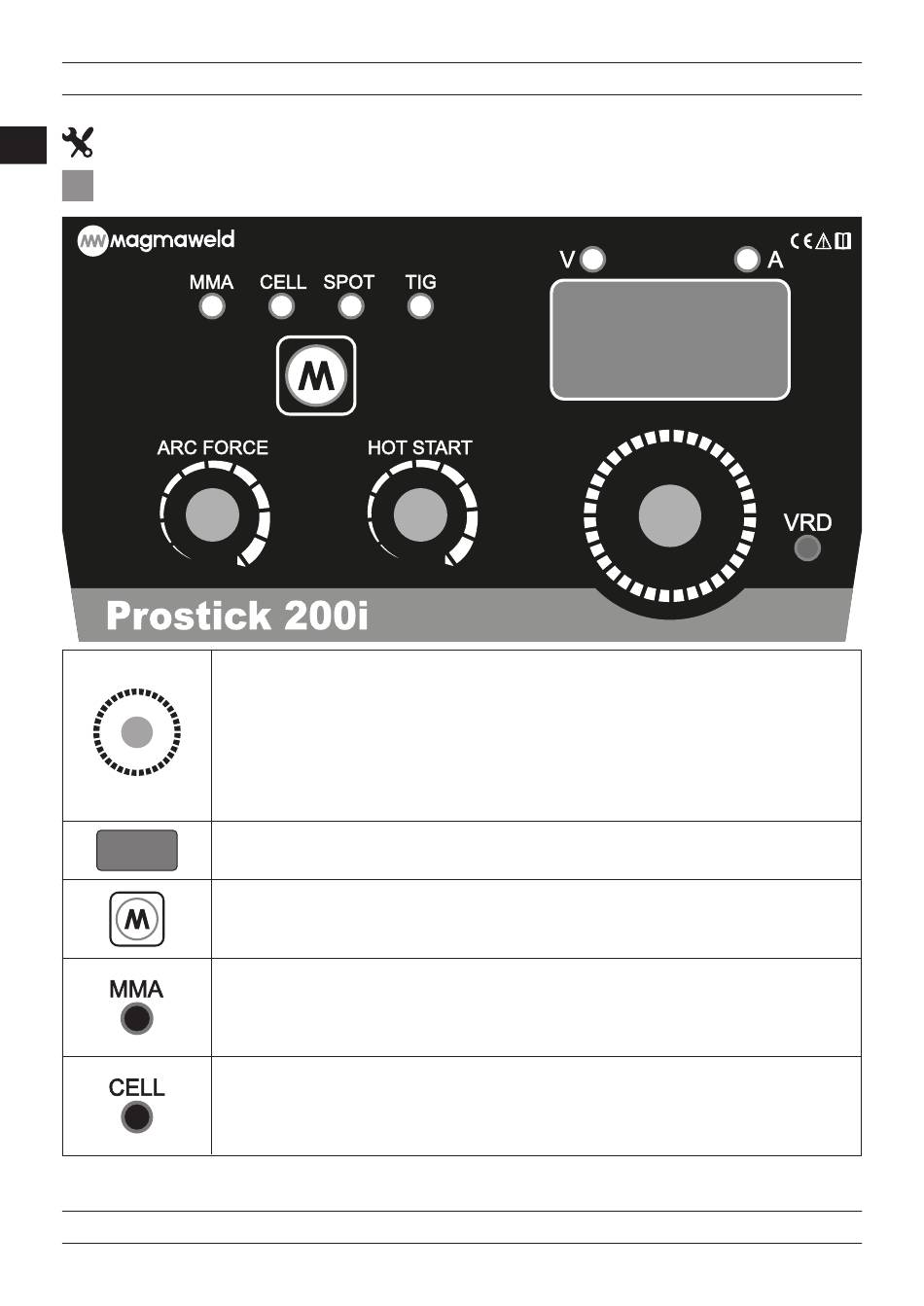

• Welding current is set between 5-200A in all welding modes with the current
Current Setting Button
adjustment knob. The value set by turning left and right will be monitored on the
digital display.
• You can switch between the current and voltage values at the time of welding or in idle
position by pressing the current adjustment button.
• Switch to the VRD menu by pressing the current adjustment button for 3 seconds.
VRD menu is described under the VRD section.
• Welding current, welding voltage and other parameters can be monitored.
Digital Display
• Used for selecting one of MMA-CEL-SPOT-TIG welding modes. Press the button once to
Welding Mode Selection Key
switch to the other welding mode. The led of the selected mode will be lit.
• MMA mode is selected by using the Menu button and the relevant led will light when
MMA Mode
this mode is selected. MMA mode should be selected when welding of rutile and basic
electrodes is desired.
• Cel mode is selected by using the Menu button and the relevant led will light when
Cellulosic Electrode Mode
this mode is selected. If cellulosic electrode welding will be done, welding connections
must be made correctly and CELL mode should be selected.
