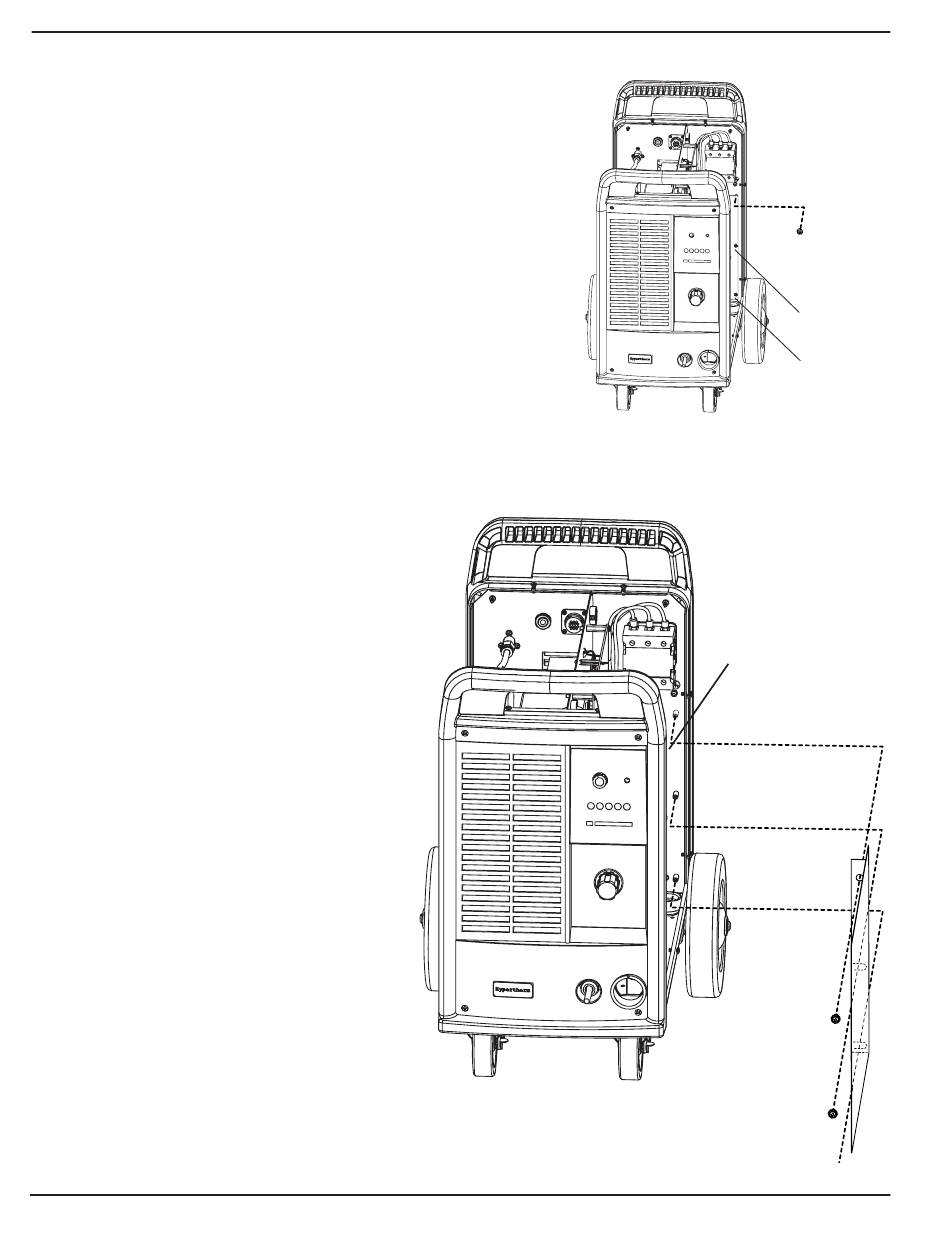

INSULATOR INSTALLATION
Installation for CE units
1. Remove the top screw and washer.
2. Loosen the middle and bottom screws.
Note:
Install the insulator behind the CE filter board.
3. Slide the slots on the insulator over the
middle and bottom screws that you
loosened in step 2. Align the top hole on
the insulator with the hole in the stud.
4. Reinstall the top screw and tighten the
middle and bottom screws.
4
0
Top screw
Middle
screw
Bottom
screw
CE filter board
Field Service Bulletin
