hearth panel installation
Hearth panels are shipped separate from unit and are included with the burner assembly and the logs. Due to the
brittle material of the panels, care must be taken not to bend or force them into place.
When shipped, the hearth panels range in varying shades of Sandstone. During initial use, the panels will darken
temporarily. The appearance of the panels will permanently lighten in color with use.

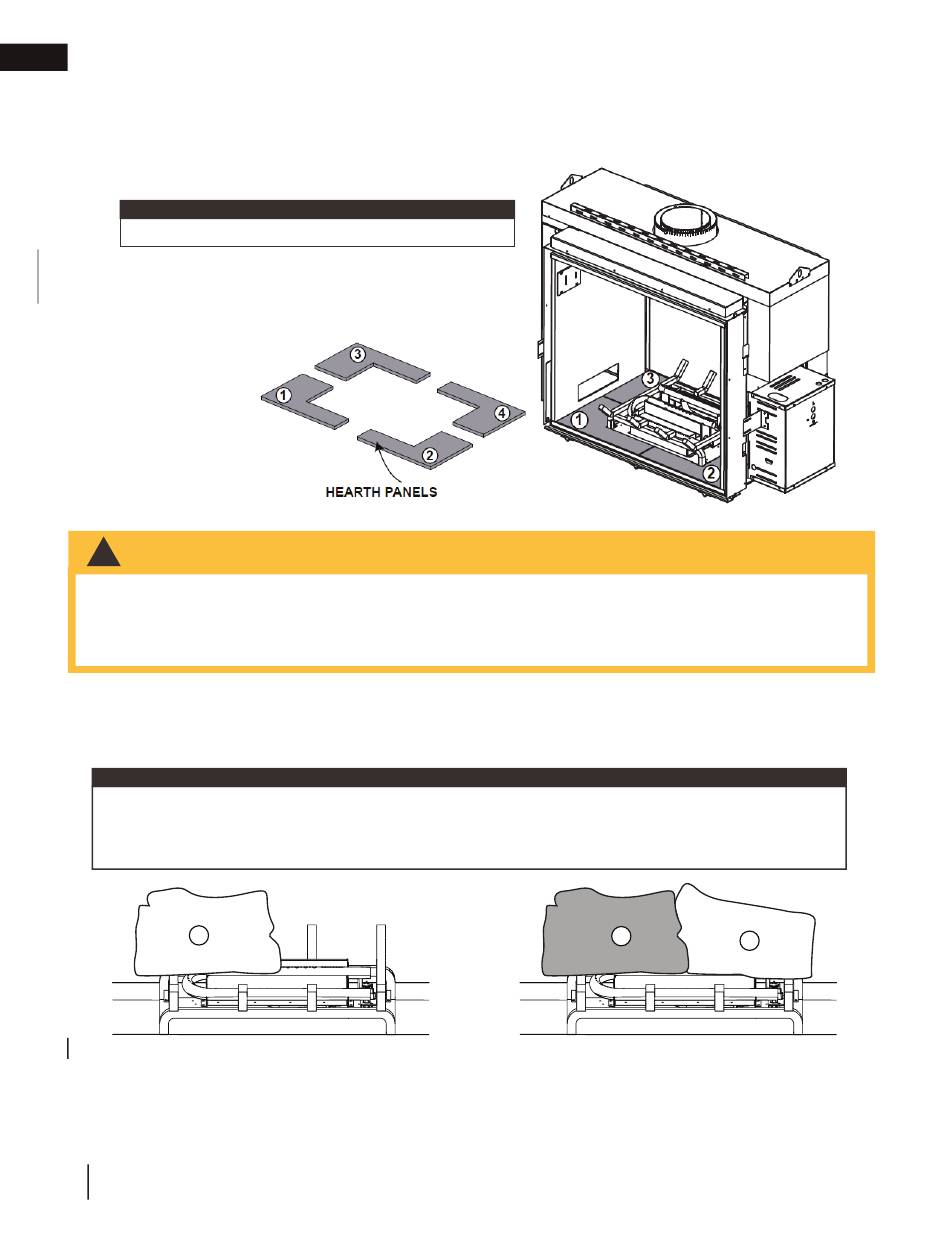

INSTALL HEARTH PANELS IN THE FOLLOWING ORDER:
note:
Burner assembly must be installed first.
A. Side brick panels or porcelain panels must be installed prior to
hearth panels. For brick panel and porcelain panel installation
see leaflets supplied with kits.
B. Install the left and right hearth panels on both sides.
2.6
log placement
WARNING
!
•
Failure to position the logs in accordance with these diagrams or failure to use only logs specifi cally approved
with this appliance may result in property damage or personal injury.
•
Logs must be placed in their exact location in the appliance. Do not modify the proper log positions, since
appliance may not function properly and delayed ignition may occur.
•
The logs are fragile and should be handled with care.
logs and glowing embers exclusive to Napoleon, provide a unique and realistic glowing effect that is dif-
PHAZER
TM
ferent in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect. Log
colours may vary. During the initial use of the appliance, the colours will become more uniform as colour pigments
burn in during the heat activated curing process.
note:
Logs C, D , E , F and G are included twice. Install these logs on the opposite side. Logs H and I are only
included once, to give it a different appearance to each side. Install logs H and I on the side that you prefer. If
desired, a second set of H and I logs are available in an upgrade kit (GL81L2) and can be purchased to make
both sides identical.
A
A. Place the rear left log (W135-0366) onto the
locating stud on the middle log support. Ensure the
hollow underside of the log is over the bend tab.
4
W415-0713 / E / 05.10.18
All manuals and user guides at all-guides.com
B. Slide the rear right log (W135-0367) from right to
48.1
A
left on the middle log support creating a tight fit
between logs A & B. Ensure the hollow underside
of the log is over the bend tab.
B
