6.7.2. 75 canaux (1 guirlande LED)

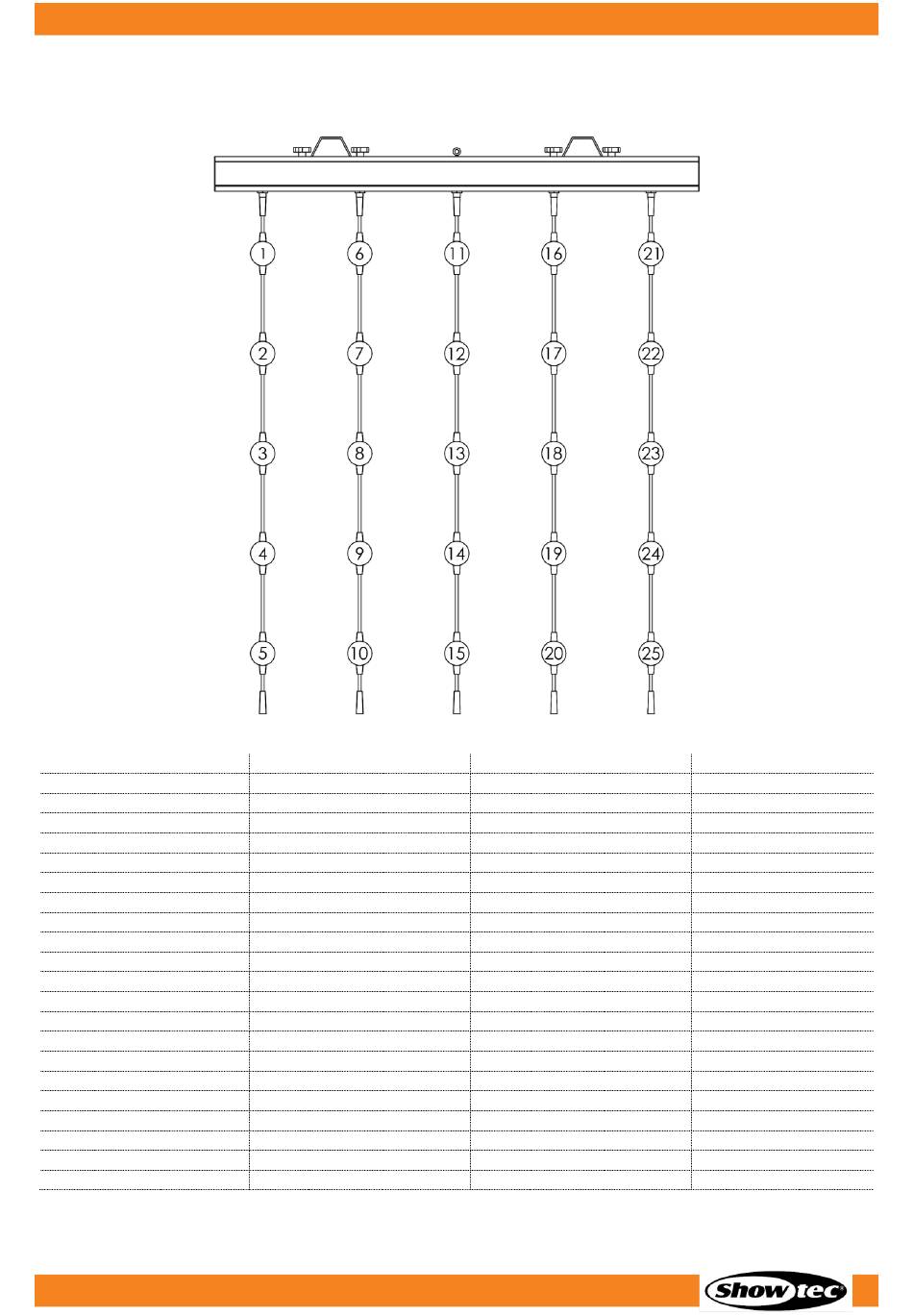

Remarque : En mode 75 canaux, les numéros des LEDs progressent verticalement. Voir ci-dessous :
Canal LED Couleur
LED 1 Rouge
1
2 LED 1 Vert
LED 1 Bleu
3
LED 2 Rouge
4
LED 2 Vert
5
LED 2 Bleu
6
7 LED 3 Rouge
LED 3 Vert
8
LED 3 Bleu
9
10 LED 4 Rouge
LED 4 Vert
11
LED 4 Bleu
12
13 LED 5 Rouge
14 LED 5 Vert
15 LED 5 Bleu
16 LED 6 Rouge
17 LED 6 Vert
18 LED 6 Bleu
19 LED 7 Rouge
20 LED 7 Vert
21 LED 7 Bleu
Code de produit : 44570
Canal LED Couleur
22 LED 8 Rouge
23 LED 8 Vert
24 LED 8 Bleu
25 LED 9 Rouge
26 LED 9 Vert
27 LED 9 Bleu
28 LED 10 Rouge
29 LED 10 Vert
30 LED 10 Bleu
31 LED 11 Rouge
32 LED 11 Vert
33 LED 11 Bleu
34 LED 12 Rouge
35 LED 12 Vert
36 LED 12 Bleu
37 LED 13 Rouge
38 LED 13 Vert
39 LED 13 Bleu
40 LED 14 Rouge
41 LED 14 Vert
42 LED 14 Bleu
Canal LED Couleur
43 LED 15 Rouge
44 LED 15 Vert
45 LED 15 Bleu
46 LED 16 Rouge
47 LED 16 Vert
48 LED 16 Bleu
49 LED 17 Rouge
50 LED 17 Vert
51 LED 17 Bleu
52 LED 18 Rouge
53 LED 18 Vert
54 LED 18 Bleu
55 LED 19 Rouge
56 LED 19 Vert
57 LED 19 Bleu
58 LED 20 Rouge
59 LED 20 Vert
60 LED 20 Bleu
61 LED 21 Rouge
62 LED 21 Vert
63 LED 21 Bleu
40
CH LED Couleur
64 LED 22 Rouge
65 LED 22 Vert
66 LED 22 Bleu
67 LED 23 Rouge
68 LED 23 Vert
69 LED 23 Bleu
70 LED 24 Rouge
71 LED 24 Vert
72 LED 24 Bleu
73 LED 25 Rouge
74 LED 25 Vert
75 LED 25 Bleu
