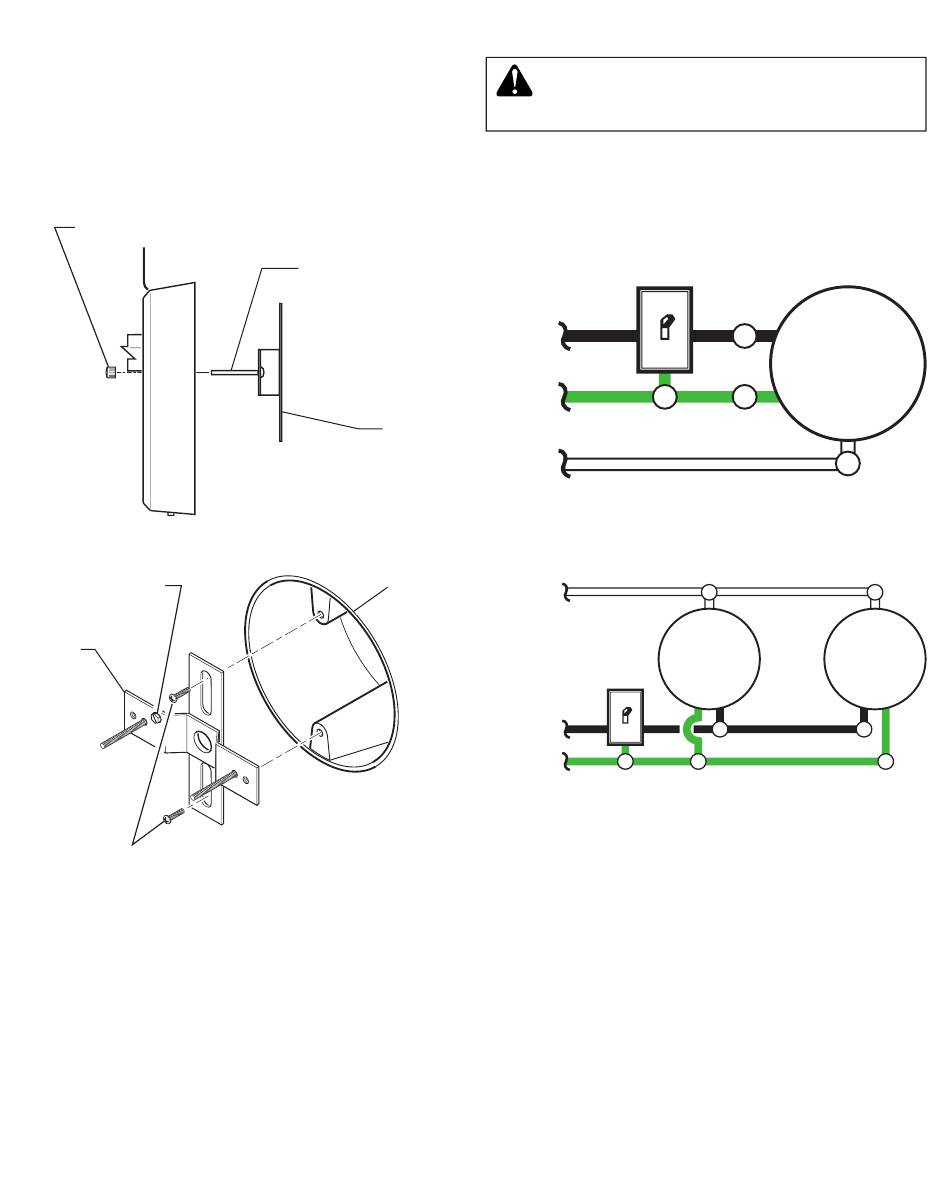

LIGHT FIXTURE INSTALLATION

For best performance, mount the fixture about 6 feet (1.8 m)
above the ground.
1. Remove two decorative nuts.
2. Remove mounting bracket.
3. Tighten mounting screws finger tight.
4. Attach mounting bracket to junction box.
Decorative Nut
Ground Screw
Mounting
Bracket
Bracket Mounting
Screws
Note: We recommend having an assistant help hold the
lantern assembly during the wiring process.
210268-01
All manuals and user guides at all-guides.com
Mounting Screw
Mounting
Bracket
Junction
Box

WIRING THE LIGHT FIXTURE

WARNING: Turn power off at circuit breaker
or fuse.
Note: All wiring must be run in accordance with the Na-
tional Electrical Code through conduit or another accept-
able means. Contact a qualified electrician if there is any
question as to the suitability of the system.
Black
Green
or Bare
Copper
White
One Motion Light
White
Black
Green
or Bare
Copper
Two Motion Lights
3
Light
Fixture
Light Light
Fixture Fixture
