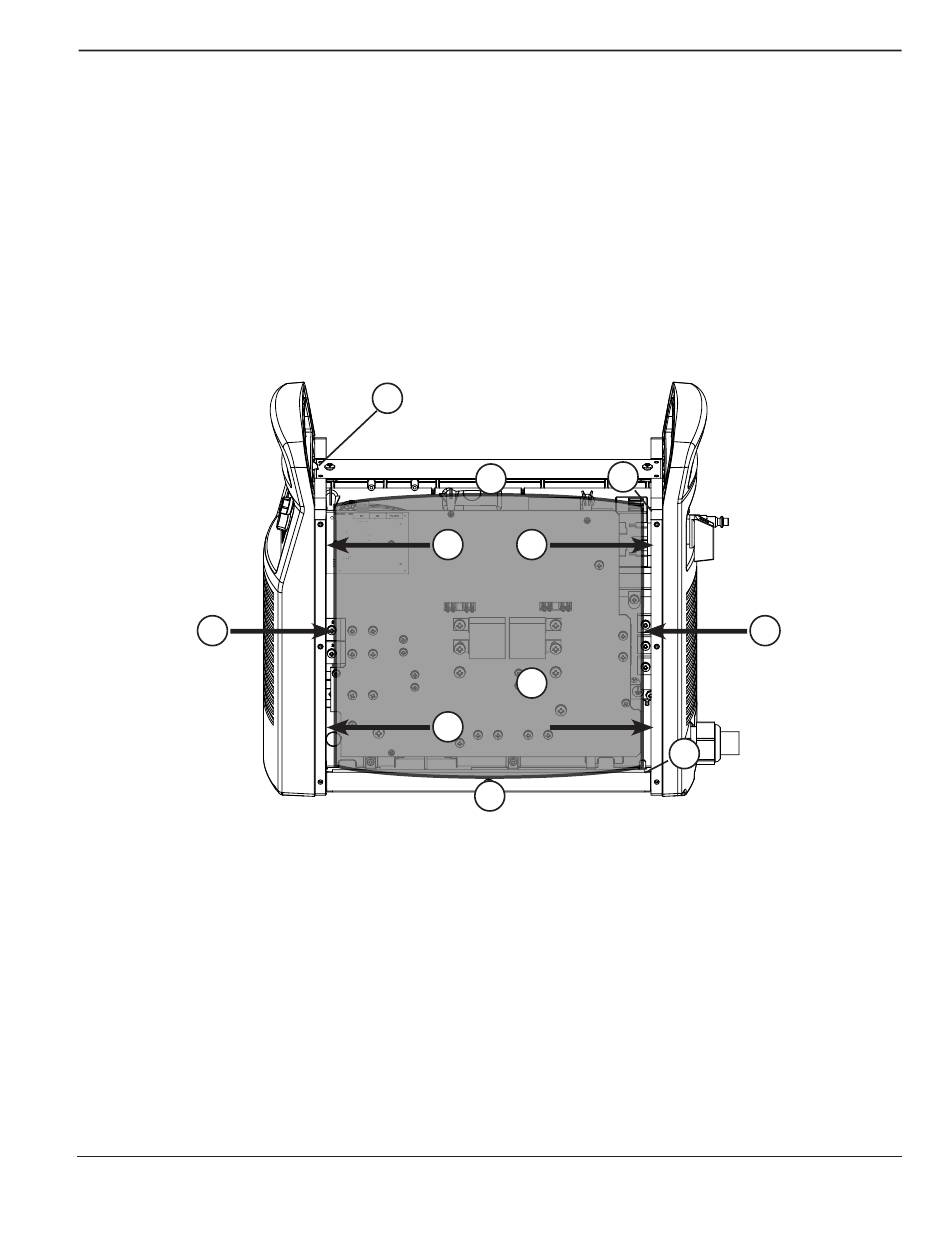

Replace the Mylar barrier and end panel bracket
1. Carefully push in the sides (1) of the Mylar barrier so that the barrier bends out slightly at the top and bottom (2).
2. Slide the sides of the Mylar barrier behind the power supply frame (3). Be careful not to damage wires or
accidentally disconnect wires from the connectors.
3. Gently bend the top of the barrier at the perforation so that the top bends over the top of the power supply.
4. Slide the barrier down so that the bottom edge fits inside the power supply frame (4).
5. Replace the metal end panel bracket on the top of the power supply. Align the slot in the bracket (6) with the plastic
tab in the front panel and push the bracket straight down. The four pins in the bracket snap into the front and rear
panels.
1
Field Service Bulletin
All manuals and user guides at all-guides.com
Powermax65/85 Power board rePlacement
6
2
3
3
2
4
3
3
5
1
13
