26. Never use a naked flame (matches, lighter, candle) to test for gas leaks.
27. Be aware that the appliance will remain hot for some time after use.
28. Household use only.
29. DO NOT COVER THE APPLIANCE.

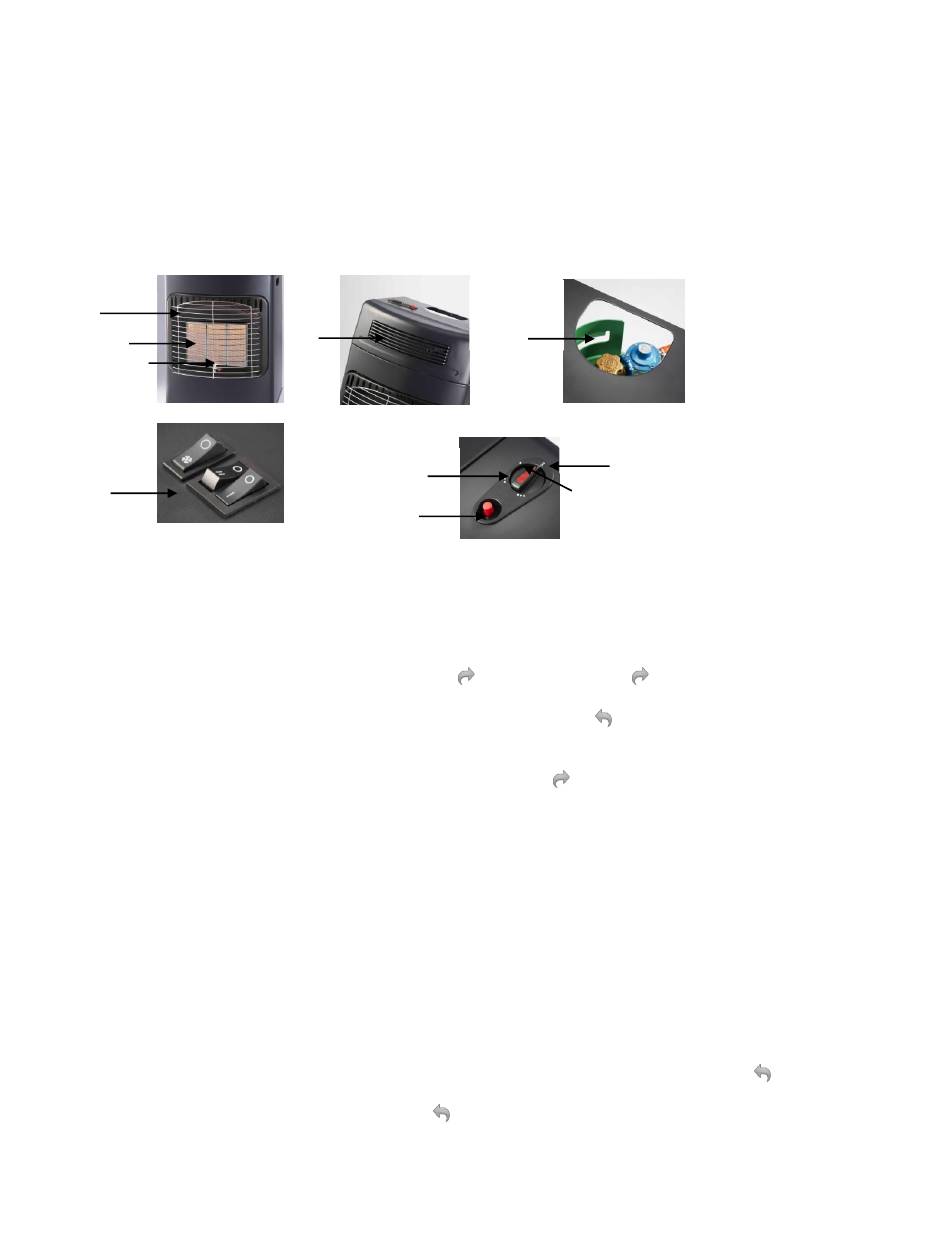

PARTS DIAGRAM

Safety Guard
Heating Panel
Pilot Flame
Fan Heater
Switches
TO TEST FOR GAS LEAKS

Extinguish all naked flames (open flames) and do not smoke or bring naked flames near the gas
heater whilst testing.

Take the heater outside.

Turn the heater OFF at the cylinder (clockwise

Check all the hose connections and inspect the condition of the seal fitted on the regulator.

Refit the regulator and then slowly turn the gas ON (anticlockwise
the connections with a cloth or brush moistened with soapy water or detergent.

A gas leak will form bubbles in the areas where the solution has been applied. If a gas leak is
detected, turn the gas cylinder control valve OFF (clockwise

Do not use the heater again until an approved/authorised service agent has inspected it.
OPERATING INSTRUCTIONS
CAUTION!

Turn the gas ON and OFF at the Gas Cylinder Valve only.

A max 13.1 kg cylinder (includes max 9.0 kg gas) is suitable for use with this heater.

Unpack the heater and remove all protective wrapping.

Untie the regulator from its shipping location and ensure that the hose is in perfect condition
(fig. 3)

Unclip the gas cylinder retaining panel from the back of the heater body (fig. 3)

Place the full LPG cylinder beside the rear of the heater. Ensure that the valve is clean and
free of any obstructions or foreign matter and screw the regulator (anticlockwise
cylinder valve. Turn by hand and do not use a spanner.

Turn the gas supply ON (anticlockwise
All manuals and user guides at all-guides.com
Fan
Heater
Grill
Heat Selection
Knob
Piezo Ignition
Button
) one and half turns at the cylinder control valve.
Gas Bottle
Access
Opening
Zero/Off Position
Spark and 1
Flame Mark
) and undo (clockwise ) the regulator.
) one and a half turns. Coat all
). Inform the nearest service agent.
) onto the
