1.2. Physical Interfaces

Figure 2 illustrates the connector layout for the Kona Micro Gateway.
DC Power
The Gateway connectors are listed in Table 2.
Table 2: Kona Micro Gateway Interface Connector Types
Interface
LoRa Antenna Ports
DC Power Input Port
Ethernet Port

1.3. Specifications

The Kona Micro Gateway specifications are listed in Table 3.
Kona Micro User Guide
TEKTELIC Communications Inc.
Ethernet

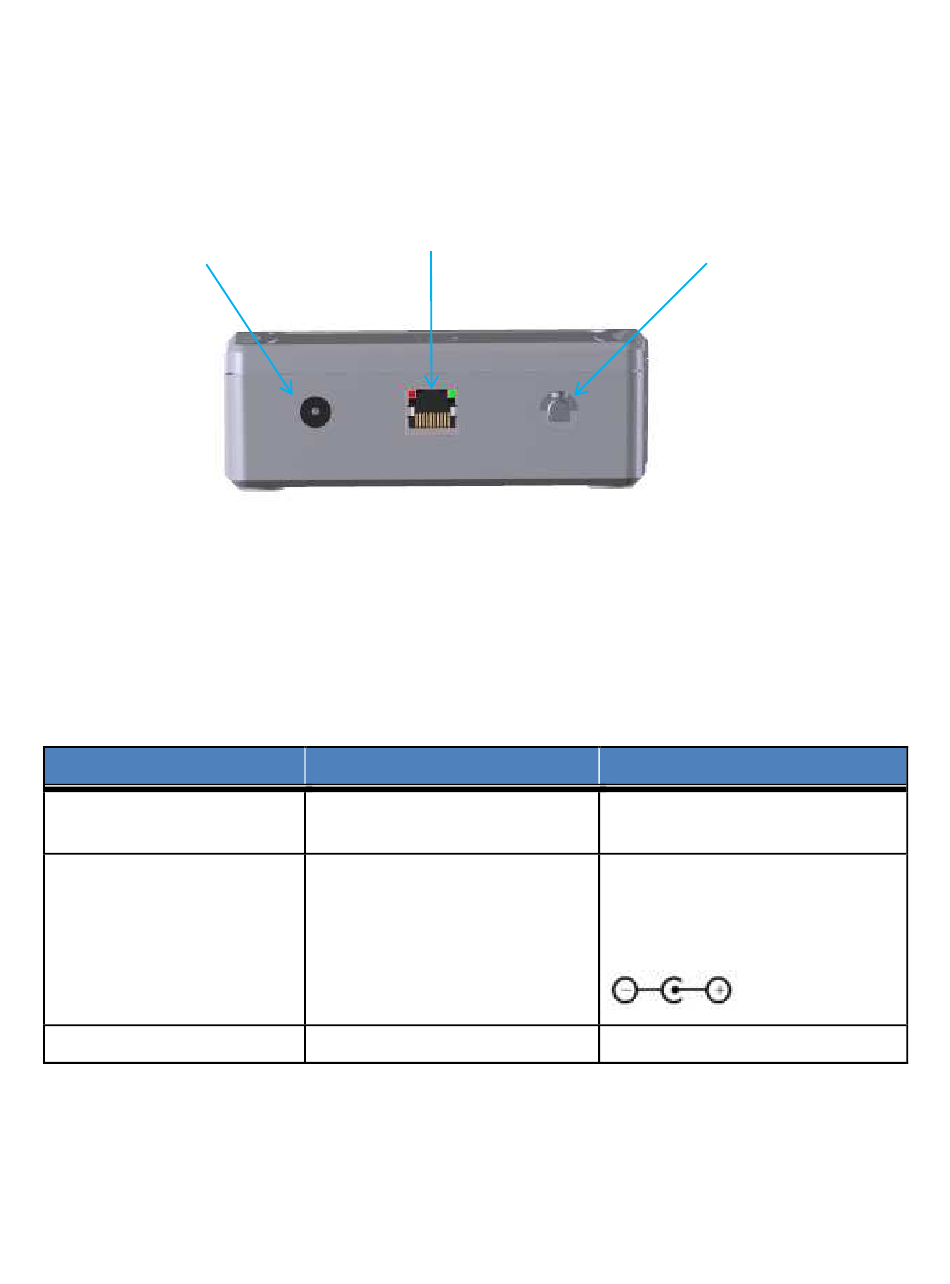

Figure 2: Kona Micro Gateway Bulkhead Layout
Connector Type
Reverse SMA female
Barrel Jack
RJ-45
Mating Connector
Industry standard Reverse SMA
male
DC Barrel plug
2.1 mm (inner), 5.5 mm (outer)
Center positive
Industry standard RJ45 plug
T0005281_UG
LoRa RF
Antenna
Version 1.3
Page 6 of 25
