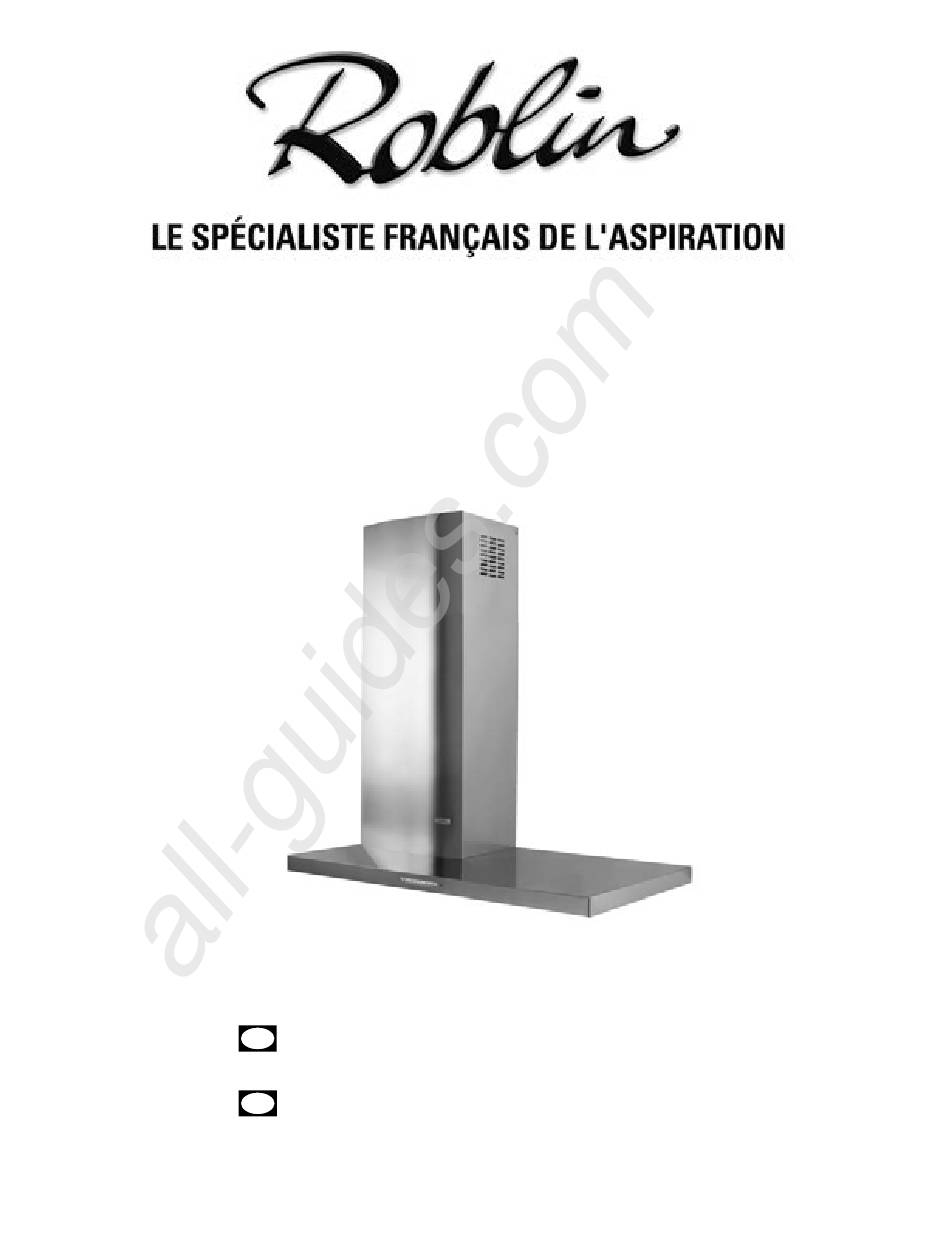

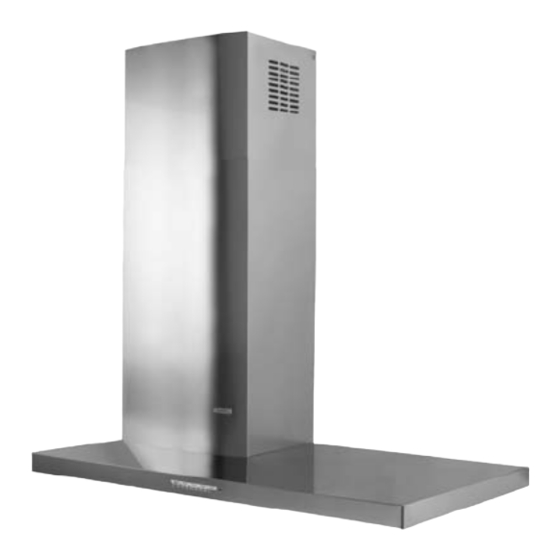

- Page 1 All manuals and user guides at all-guides.com ATRIUM/3 Asymétrique Murale Mode d’emploi et installation Hotte de Cuisine Instructions for use and installation Cooker Hood...
-
Page 2: Table Des Matières
All manuals and user guides at all-guides.com SOMMAIRE CONTENTS RACCORDEMENT ÉLECTRIQUE ELECTRICAL WIRING CONSEILS D’INSTALLATIONS INSTALLATION ADVICE FITTING THE APPLIANCE POSE DE L’APPAREIL FONCTIONNEMENT OPERATION CONSEILS D’UTILISATIONS USEFUL HINTS ENTRETIEN MAINTENANCE GARANTIE ET SERVICE APRÈS-VENTE GUARANTEE AND AFTER-SALES-SERVICES REMARQUES REMARKS... -
Page 3: Raccordement Électrique
All manuals and user guides at all-guides.com Nous vous remercions de la confiance que vous nous avez accordée en choisissant un appareil de la gamme ROBLIN. Celui-ci a fait l’objet de toute notre attention dans sa conception et sa réalisation. -
Page 4: Pose De L'appareil
All manuals and user guides at all-guides.com L es enfants doivent ê tre surveillé s pour s’assurer qu’ils ne j ouent pas avec l’appareil. POSE DE L’APPAREIL. M ontage et raccordement doivent ê tre ré alisé s par un installateur ualifi... - Page 5 All manuals and user guides at all-guides.com (5 ). c) Fonctions com pl é m entair es : • Vitesse intensiv e tem por isé e Pour obtenir une bonne efficacit d vacuation nous vous conseillons en d but de cuisson une p riode de fonctionnement en position intensive.
-
Page 6: Entretien
All manuals and user guides at all-guides.com onfiguration r ception t l commande • V otre hotte est programmé e pour fonctionner sans ré ception té lé commande. Si vous souhaitez l’utiliser avec la t l commande vous deve imp rativement la configurer suivant la procé dure suivante : M oteur et é... -
Page 7: Garantie Et Service Après-Vente
All manuals and user guides at all-guides.com GARANTIE ET SERVICE APR S-VENTE. • En cas d’anomalie de fonctionnement, pré venez votre installateur qui devra v rifier l’appareil et son raccordement. • Dans le cas où un composant é lectrique viendrait à ê tre endommagé , celui-ci ne peut ê tre remplacé que par un atelier de ré... -
Page 8: Installation Advice
All manuals and user guides at all-guides.com ou for bu ing a oblin product which has been manufactured to the highest ualit standards to meet our re uirements. We recommend ou carefull read this boo let in which ou will find instructions for installation hints for use and maintenance. - Page 9 All manuals and user guides at all-guides.com green / yellow : earth blue : neutral brown : live A s the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows. The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol or coloured green or green and yellow.
-
Page 10: Operation
All manuals and user guides at all-guides.com OPERATION A - EXTRACTION OR RECYCLING :Your cooker hood is supplied in the extraction mode. To use the cooker hood in the recycling mode re-programme the hood as follows: Starting in the recycling mode (the contaminated air passes into the hood through the grease filters and the purifying activated charcoal filter and back out into the kitchen through grilles). - Page 11 All manuals and user guides at all-guides.com with a pre-set stop of the boost speed re-programme the hood as follows: The lights and the fan motor should be switched ‘OFF’ to set the timer. Push the LED button ‘-’ until the LED lights will flash : One flash of the LED lights 2,3, and 4 = function is switched ‘OFF’.
-
Page 12: Useful Hints
All manuals and user guides at all-guides.com life. These batteries must be disposed of properly and could explode if damaged or exposed to heat. Do not dispose of on fire. Dispose of batteries in the appropriate sort container to protect the environ- ment. -
Page 13: Guarantee And After-Sales-Services
All manuals and user guides at all-guides.com GUARANTEE AND AFTER SALES SERVICE In the event of any malfunction or anomaly, notify your fitter who will have to check the ap- • pliance and its connection. • In the event of damage to the mains supply cable, this can only be replaced by at approved repair centre appointed by the manufacturer who will have the required tools and equipment to carry out any repairs properly. - Page 14 All manuals and user guides at all-guides.com ECLAIRAGE LIGHTING BELEUCHTUNG 2 X LEDS 1 W Brown Blue L2 F motor MULTI-FLACH KABEL LIMANDE COMMANDE FLAT CABLE Brown Green-Yellow Blue A - AZUR - AZUR - AZUR BLAU 100 W BK - BLACK - NOIR- SCHWARZ B - BLUE - BLEU - BLAU Br - BROWN - BRUN - BRAUN G-Y - GREEN YELLOW - VERT JAUNE - GRÜN GELB...
-
Page 15: Electrical Connection
All manuals and user guides at all-guides.com The wires in this mains ELECTRICAL CONNECTION lead are coloured in ELECTRICAL REQUIREMENTS accordance with the Any permanent electrical installation must comply following code: with the latest I.E.E. Regulations and local Electricity Green-Yellow Earth Board regulations. - Page 16 All manuals and user guides at all-guides.com...
- Page 17 All manuals and user guides at all-guides.com Ø150...
- Page 18 All manuals and user guides at all-guides.com Composants - Components...
-
Page 19: Pose De L'appareil - Fitting
All manuals and user guides at all-guides.com Pose de l’appareil - Fitting N°1 N°2 N°5 N°3 N°6 N°4... - Page 20 All manuals and user guides at all-guides.com Pose de l’appareil - Fitting...
- Page 21 All manuals and user guides at all-guides.com LED : 2 x 1.1 W press press* Il est nécessaire de déposer le support éclairage sur certain produit, pour accéder au dos du spot It is necessary to remove the light holder on certain product, to access the back of the spot...
- Page 22 All manuals and user guides at all-guides.com...
- Page 23 All manuals and user guides at all-guides.com...
- Page 24 50800 VILLEDIEU-LES-POËLES - France Tél. 02 33 91 26 50 - Fax 02 33 51 54 79 - e-mail : com.france@roblin.fr For outside France : Tel. +33 (0)2 33 91 26 57 - Fax. : +33 (0)2 33 51 54 79 e-mail : com.export@roblin.fr...
