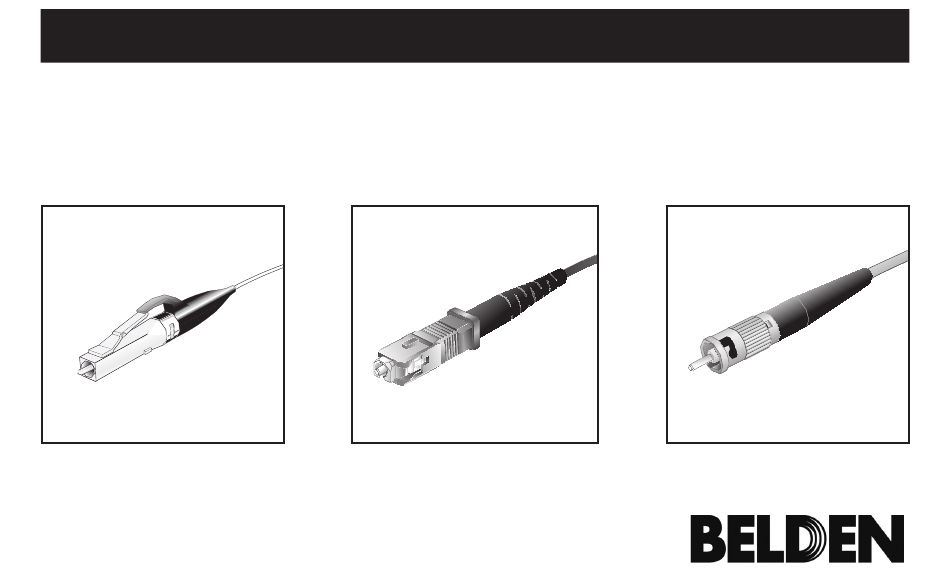

- Page 1 PX104468 Optimax LC, SC and ST Compatible Connectors Optimax Connecteur Compatible LC, SC et ST Installation Instructions Directives d’installation...
- Page 3 Optimax implies the Optimax Multimode (50 µm & 62.5 µm) and Singlemode connectors Monomode Information subject to change without notice. Belden reserves the right to © 2007 Belden, Inc. make changes in product design or components as progress in All rights reserved.
- Page 5 Table of contents Table des matières About this guide Renseignements généraux Safety precautions Mesures de sécurité Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Installation on jacketed fiber Installation sur fibre avec gaine de protection Cleaning procedures Nettoyage Fiber Preparation Guide...
- Page 6 About this guide Renseignements généraux This guide contains assembly procedures for the Optimax Connector. Before starting an installation, check to make sure that you have the required tools and materials outlined at the start of the procedure. Review each procedure to familiarize yourself with the graphic symbols and the actions required. Le présent guide contient les directives d’assemblage du connecteur Optimax.
- Page 7 Safety precautions Mesures de sécurité CAUTION: • When installed on a live system, invisible laser radiation may be present. Do not stare into connector endface or view directly with optical instruments. • Wear safety glasses when working with optical fiber. •...
- Page 8 Connector components Composants du connecteur dust cap 900 µm strain relief boot Accessories capuchon antipoussière 900 µm gaine de maintien 2.0 mm Accessoires 2 2 m m m m 2.0 mm 3.0 mm 3.0 mm connector body 3 3 m m m m dust cap corps du connecteur languette antipoussière...
- Page 9 Connector installation tools Outils d’installation du connecteur alcohol wipes fiber cleaver chiffons imbibés coupe-fibre d'alcool P P X X 1 1 0 0 4 4 4 4 6 6 8 8 multihead adapter Optimax LC, SC and ST Compatible Connectors tool clamp Optimax adapteur multi tête...
- Page 11 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Open the bag and select the parts required for installation on 900 µm buffered fiber. (Connector body and 900 µm strain relief boot.) Ouvrez le sac et choisissez les pièces nécessaires à l’assemblage sur fibre à revêtement serré de 900 µm (corps du connecteur et gaine de maintien de 900 µm).
- Page 12 Installation on 900 μm buffered fiber Installation sur fibre à revêtement serré de 900 μm Install the installation tool on the C clamp as shown, then clamp to the table. The table top base can be used as an alternative option. Installez l'outil d'installation sur le serre-joint et fixez le à...
- Page 13 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Install the 3 in 1 adapter on the tool in the appropriate position as illustrated below. Installez l'adaptateur 3 dans 1 sur l'outil à la position appropriée comme illustré ci-bas. LC position SC position ST position...
- Page 14 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Load the connector body into the installation tool, with the release wire up. Insérez le corps du connecteur dans l’outil d’installation, le fil de dégagement vers le haut. Leave dust cap on.
- Page 15 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Slide the boot down the fiber, narrow end first, Slide the 900 µm strain relief boot onto the rear Slide the boot down the fiber, narrow end first, until it is out of the way.
- Page 16 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Strip approximately 40 mm of the 900 µm buffered fiber. Be sure to strip fiber in small (5 mm) sections to avoid breaking it. Buffer end should be clean and square. After stripping, measure and mark the buffer from its end as illustrated below. Dénudez environ 40 mm de la fibre à...
- Page 17 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Carefully clean the bare fiber with a folded alcohol wipe or alcohol soaked lint-free paper. Use two or three passes. Avoid touching the bare fiber after it has been cleaned. Nettoyez avec précaution la fibre dénudée à...
- Page 18 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Cleave the fiber 7 mm from the end of the buffer. Be sure to read and understand the operating instructions included with the cleaver. Using tweezers, discard waste fiber into the proper waste container. Coupez la fibre à...
- Page 19 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Use the microscope to check the quality of the cleave. Pointing the microscope at a white surface will provide a brighter image. Vérifiez la qualité de la coupe au moyen du microscope. Pour obtenir une meilleure image, pointez le microscope vers une surface blanche.
- Page 20 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Close stage and check fiber. It is recommended to rotate the fiber 90 - 180 to verify from different angles. Fermez la plaque d’examen et vérifiez la fibre. Il est recommandé de tourner la fibre de 90 - 180 pour vérifier les différents angles.
- Page 21 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Break dust cap from disposable tool and discard it. Break dust cap from disposable tool and discard it. Remove rear dust cap from connector body. Discard.
- Page 22 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Carefully insert the bare fiber into the stem of the connector until you feel the fibers make contact. Gently twisting the fiber may ease insertion. Do not twist or remove the fiber once it is fully inserted. clamp When fully inserted, the pen mark on the buffer should be near the edge of the stem of the connector.
- Page 23 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Depress the installation tool plunger. Ensure it hooks the release wire, then slowly release the plunger. Enfoncez le piston de l’outil d’installation. Assurez-vous qu’il accroche le fil de dégagement et relâchez-le lentement. Optimax Connector Installation Instructions Connecteur Optimax Directives d’installation Page 13...
- Page 24 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Unclamp the fiber. Carefully remove the connector from the installation tool. Hold the crimping tool horizontally and close it partially. Load the connector into the first die of the crimping tool as shown with the disposable tool tab pointing at the crimping tool handle.
- Page 25 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Remove disposable tool and discard it.Holding the Grab the disposable tool as shown. Pull until a click is Align and press the rear housing with boot into the boot by its collar, align the anti snag with the latch of heard.
- Page 26 Installation on 900 µm buffered fiber Installation sur fibre à revêtement serré de 900 µm Holding the boot by its collar, slide it onto the rear of the connector until its step reaches the connector body. The installation is now completed. En tenant la gaine de maintien par son collet, glissez-la jusqu’à...
- Page 27 Installation on jacketed fiber Installation sur fibre avec gaine de protection Open the connector bag and the accessories bag. Select 1a) Before you start an installation on jacketed fiber, you Open Open the bag of materials and take out the connector the appropriate parts required for installation on 2.0mm or need to determine the installation method (there are two) body and the rear housing.
- Page 28 Installation on jacketed fiber Installation sur fibre avec gaine de protection Install the installation tool on the C clamp as shown, then clamp to the table. The table top base can be used as an alternative option. Installez l'outil d'installation sur le serre-joint et fixez le à la table. Le support sur table peut être utilisé comme une option alternative.
- Page 29 Installation on jacketed fiber Installation sur fibre avec gaine de protection Install the 3 in 1 adapter on the tool in the appropriate position as illustrated below. Installez l'adaptateur 3 dans 1 sur l'outil à la position appropriée comme illustré ci-bas. LC position SC position ST position...
- Page 30 Installation on jacketed fiber Installation sur fibre avec gaine de protection Load the connector body into the installation tool, with the release wire up. Insérez le corps du connecteur dans l’outil d’installation, le fil de dégagement vers le haut. Leave dust cap on. Leave dust cap on.
- Page 31 Installation on jacketed fiber Installation sur fibre avec gaine de protection Slide the boot down the fiber, narrow end first, Slide the strain relief boot onto the rear housing Slide the boot down the fiber, narrow end first, until it is out of the way. until it locks in place.
- Page 32 Installation on jacketed fiber Installation sur fibre avec gaine de protection Using the universal stripper as shown cut squarely and remove 50 mm of the outer jacket from the end of the cord. The jacket must be cut cleanly and square. À...
- Page 33 Installation on jacketed fiber Installation sur fibre avec gaine de protection Insert the crimp sleeve down the fiber approx. 30 mm from the edge of the jacket, hold the Kevlar with the crimp sleeve. Faites glisser la bague de sertissage sur la fibre à environ 30 mm de la gaine de manière à replier la mèche de Kevlar et à la maintenir en place.
- Page 34 Installation on jacketed fiber Installation sur fibre avec gaine de protection Make sure all the slack fiber is pushed back inside the jacket. First mark the buffer at the end of the jacket. Then mark it again at 16 mm. Si la fibre glisse légèrement à...
- Page 35 Installation on jacketed fiber Installation sur fibre avec gaine de protection A For 2.0 mm to smaller than 2.4 mm cord B For 2.4 mm to 3.0 mm cord Cordon de 2,0 mm à plus petit que 2,4 mm Cordon de 2,4 mm à 3,0 mm Make sure all the slack fiber is pushed back inside the jacket.
- Page 36 Installation on jacketed fiber Installation sur fibre avec gaine de protection Make sure all the slack fiber is pushed back inside the jacket. First mark the buffer at the end of the jacket. Then mark it again at 11 mm. Si la fibre glisse légèrement à...
- Page 37 Installation on jacketed fiber Installation sur fibre avec gaine de protection Hold the fiber on the exposed buffer section. Strip the fiber to the mark. Be sure to strip the buffer from the fiber in small (5 mm) sections to avoid breaking the fiber. Tenez la fibre par le revêtement exposé.
- Page 38 Installation on jacketed fiber Installation sur fibre avec gaine de protection Carefully clean the bare fiber with a folded alcohol wipe or alcohol soaked lint-free paper. Use two or three passes. Avoid touching the bare fiber after it has been cleaned. Nettoyez avec précaution la fibre dénudée à...
- Page 39 Installation on jacketed fiber Installation sur fibre avec gaine de protection Press the buffer into place on the cleaver, and cleave the fiber 7 mm from the end of the buffer. Be sure to read and understand the operating instructions included with the cleaver. Using tweezers, discard waste fiber into the proper waste container.
- Page 40 Installation on jacketed fiber Installation sur fibre avec gaine de protection Use the microscope to check the quality of the cleave. Pointing the microscope at a white surface will provide a brighter image. Vérifiez la qualité de la coupe au moyen du microscope. Pour obtenir une meilleure image, pointez le microscope vers une surface blanche. Turn microscope over and place fiber on stage.
- Page 41 Installation on jacketed fiber Installation sur fibre avec gaine de protection Close stage and check fiber. It is recommended to rotate the fiber 90 - 180 to verify from different angles. Fermez la plaque d’examen et vérifiez la fibre. Il est recommandé de tourner la fibre de 90 - 180 pour vérifier les différents angles.
- Page 42 Installation on jacketed fiber Installation sur fibre avec gaine de protection 1 1 2 2 Break dust cap from disposable tool and discard it. Remove rear dust cap from connector body. Break dust cap from disposable tool and discard it. Discard.
- Page 43 Installation on jacketed fiber Installation sur fibre avec gaine de protection Carefully insert the bare fiber into the stem of the connector until you feel the fibers make contact. Gently twisting the fiber may ease insertion. Do not twist or remove the fiber once it is fully inserted. When fully inserted, the pen mark on the buffer should be near the edge of the stem of the connector.
- Page 44 Installation on jacketed fiber Installation sur fibre avec gaine de protection Depress the installation tool plunger. Ensure it hooks the release wire, then slowly release the plunger. Enfoncez le piston de l’outil d’installation. Assurez-vous qu’il accroche le fil de dégagement et relâchez-le lentement. Standard Release 01.00 October 2007 Catégorie courante Version 01.00 Octobre 2007 Page 34...
- Page 45 Installation on jacketed fiber Installation sur fibre avec gaine de protection Unclamp the cord. Carefully remove the connector from the installation tool. Hold the crimping tool vertically and rest the crimping tool against the disposable tool tab to ensure it is aligned properly. The disposable tool must be rotated in order for it’s tab to be pointing at the crimp tool handle.
- Page 46 Installation on jacketed fiber Installation sur fibre avec gaine de protection Remove disposable tool and discard it. Gently pull the Kevlar towards the connector to make sure there is no slack. Slide the crimp sleeve over the Kevlar. Spread the Kevlar evenly around the connector. Carefully remove the connector from the installation tool.
- Page 47 Installation on jacketed fiber Installation sur fibre avec gaine de protection Holding the boot by its collar, align the anti snag with the latch of the LC connector, slide it onto the rear of the connector until its step reaches the connector body. The installation is now completed. En tenant la gaine de maintien par son collet, alignez la languette d’anti-accrochage avec la languette de du connecteur LC, glissez-la jusqu’à...
- Page 48 Installation on jacketed fiber Installation sur fibre avec gaine de protection Rest the crimping tool against the disposable tool tab to ensure it is aligned properly. The disposable tool must be rotated in order for it’s tab to be pointing at the crimp tool handle. Using the first die on the crimping tool, strongly crimp the stem on the buffer at the “buffer crimp area”, making sure neither the jacket nor any Kevlar is in the way.
- Page 49 Installation on jacketed fiber Installation sur fibre avec gaine de protection Grab the disposable tool as shown. Pull in order to expose approximately 8 mm of the sliding part and until a click is heard. During this operation, if you are using the cord adaptor, hold it carefully and facilitate its mating with the sliding part. Remove the tool and discard it.
- Page 50 Installation on jacketed fiber Installation sur fibre avec gaine de protection Gently pull the Kevlar towards the connector to make sure there is no slack. Slide the crimp sleeve over the Kevlar. Spread the Kevlar evenly around the connector. Carefully remove the connector from the installation tool. Ensure the crimp sleeve is against the rear of the connector and strongly crimp the crimp sleeve using the middle die of the crimping tool.
- Page 51 Installation on jacketed fiber Installation sur fibre avec gaine de protection Holding the boot on its ribbed section, slide it onto the rear of the connector until it snaps in place. The installation is now complete. En tenant la gaine de maintien par sa section rainurée, glissez-la à l’arrière du connecteur jusqu’à ce qu’un déclic se fasse entendre.
- Page 52 Installation on jacketed fiber Installation sur fibre avec gaine de protection Push and rotate the connector body 1/4 turn counterclockwise in order to unlock the connector from the installation tool. Rest the crimping tool against the connector body to ensure it is aligned properly. Using the first die on the crimping tool, crimp the stem on the buffer at the “buffer crimp area”, making sure neither the jacket nor any Kevlar is in the way.
- Page 53 Installation on jacketed fiber Installation sur fibre avec gaine de protection Reinsert the connector in the installation tool and lock it in place. Turn the connector body housing 1/8 turn counterclockwise so the housing is resting as shown. Réinsérez le connecteur dans l’outil d’installation de manière à ce qu’il soit vérrouillé. Tournez le connecteur un huitième de tour dans le sens anti-horaire de façon à...
- Page 54 Installation on jacketed fiber Installation sur fibre avec gaine de protection Gently cut the Kevlar ensuring that it reaches the end of the connector body. Spread the Kevlar evenly around the stem of the connector. Slide the crimp sleeve down the fiber toward the connector. Ensure the crimp sleeve is against the retaining ring at the rear of the connector body and crimp the crimp sleeve using the middle die of the crimping tool.
- Page 55 Installation on jacketed fiber Installation sur fibre avec gaine de protection Unclamp the cord. Align and press the rear housing with boot into the front housing until a click is heard. Remove the connector from the installation tool. The installation is now complete. Retirez le cordon de la pince.
- Page 56 Cleaning procedures Procédures de nettoyage 1. Wipe completely around the connector ferrule a few times with a lint-free alcohol soaked wipe. Then wipe across the end of the ferrule. 2. Repeat step 1 with a dry wipe. 3. Blow compressed gas across the end of the ferrule (optional but recommended). Do not allow ferrule to touch anything before inserting into coupling.
- Page 57 Guide de préparation des fibres Fiber Preparation Guide Optimax LC Fiber Preparation Guide (for Multimode and Singlemode) Optimax LC Guide de préparation des fibres (pour Multimode et Monomode) 900 µm buffered fiber Jacketed fiber Fibre avec gaine de protection Fibre à revêtement serré de 900 µm +0.5...
- Page 59 Guide de préparation des fibres Fiber Preparation Guide Optimax SC Fiber Preparation Guide (for Multimode and Singlemode) Optimax SC Guide de préparation des fibres (pour Multimode et Monomode) Smaller than 2.4 mm cord 900 µm buffered fiber 2.4 mm cord or larger Cordon plus petit que 2,4 mm Fibre à...
- Page 61 Guide de préparation des fibres Fiber Preparation Guide Optimax ST-Type Fiber Preparation Guide (for Multimode and Singlemode) Optimax de type ST Guide de préparation des fibres (pour Multimode et Monomode) 900 µm buffered fiber Jacketed fiber Fibre à revêtement serré de 900 µm Fibre avec gaine de protection Optimax ST Connector Installation Instructions Connecteur Optimax ST Directives d’installation...
-
