Technical Specifications - Elkron DT600 Notice D'installation

 In exterior installations, do not allow the infra-red sensor to be exposed to direct SUNLIGHT, especially during the hottest
hours of the day.
 Do not install the detector in an area where there are devices that can cause sudden changes of temperature in the
detection area, like air conditioners, radiators, etc.
 Do not allow large obstacles in the detection area.
 Never orient the device directly towards sources of heat like fires or boilers, and do not install over radiators.
 Never allow moving objects into the detection area, like curtains, tapestries, etc.

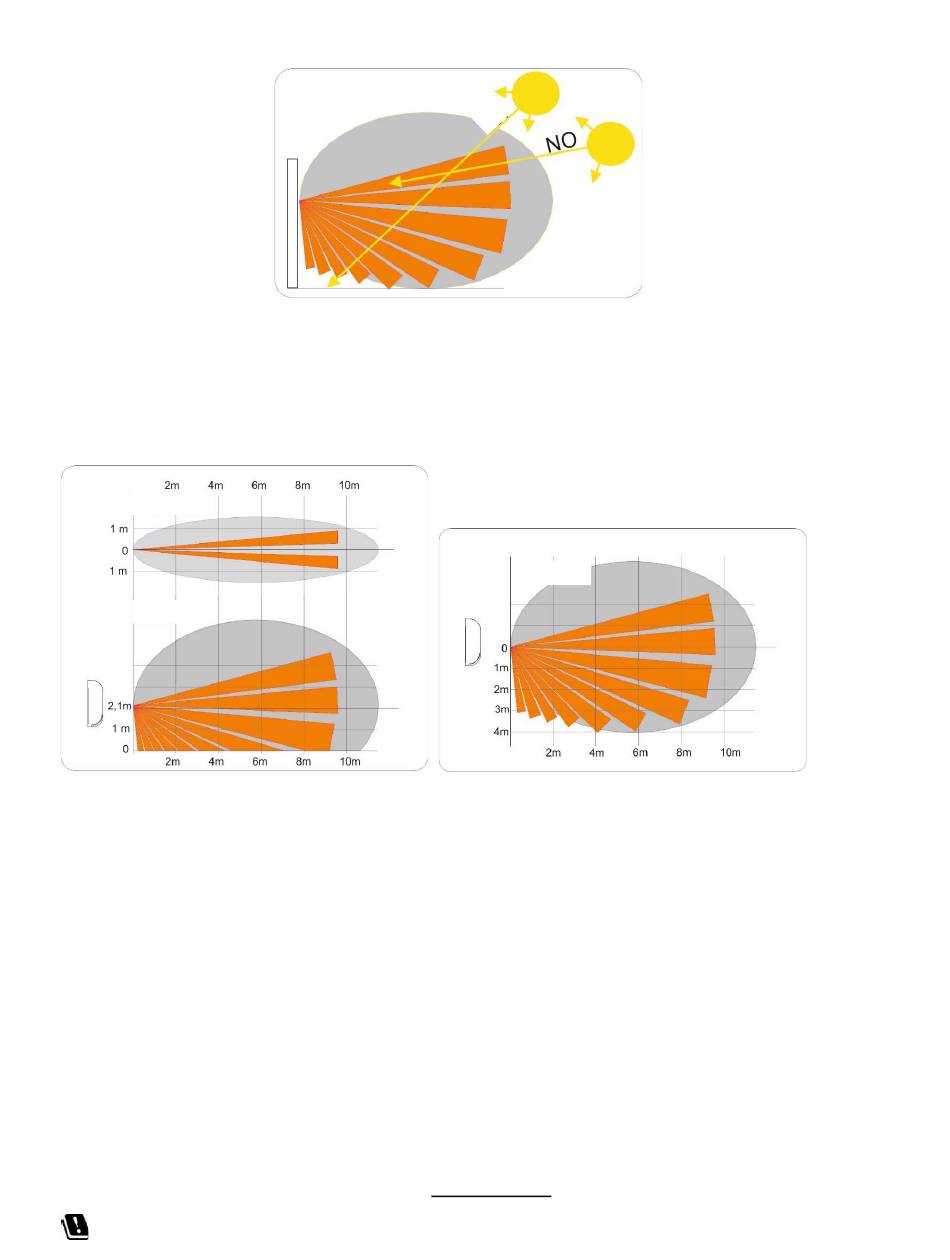

Detection diagrams
Top view
Side view
Standard detection diagram

Technical specifications

 Power supply: 1 battery CR2 3V
 Autonomy: 2 years (typical value, can vary according to use)
 Microwave radio frequency band: 24,12 – 24,13 GHz
Two-way radio frequency band: 868,6 – 868,7 MHz

 Absorption of current in stand-by: 15uA (detector only) + TX module
 Absorption of current during alarm with LED on: 3,5 mA + TX module
 Microwave capacity: minimum 2 m / maximum 8 m with trimmer regulation
 Microwave maximum radio power transmitted: 18,68 dBm
 Two-way maximum radio power: 1,81 dBm
 Level of protection: IP54
 Working temperature: - 10°C/+55°C
 Ambient humidity: 95%
 Weight: 300g

Dimensions without accessories WxHxD 110 x 42 x 62 mm
The manufacturer, URMET S.p.A., hereby declares that the type of radio device: DUAL TECHNOLOGY DETECTOR FOR
EXTERIOR USE WITH CURTAIN EFFECT DT600 is in conformity with Directive 2014/53/EU. The complete text of the EU
declaration of conformity is available at the following link: www.elkron.com.
