Fitting instructions

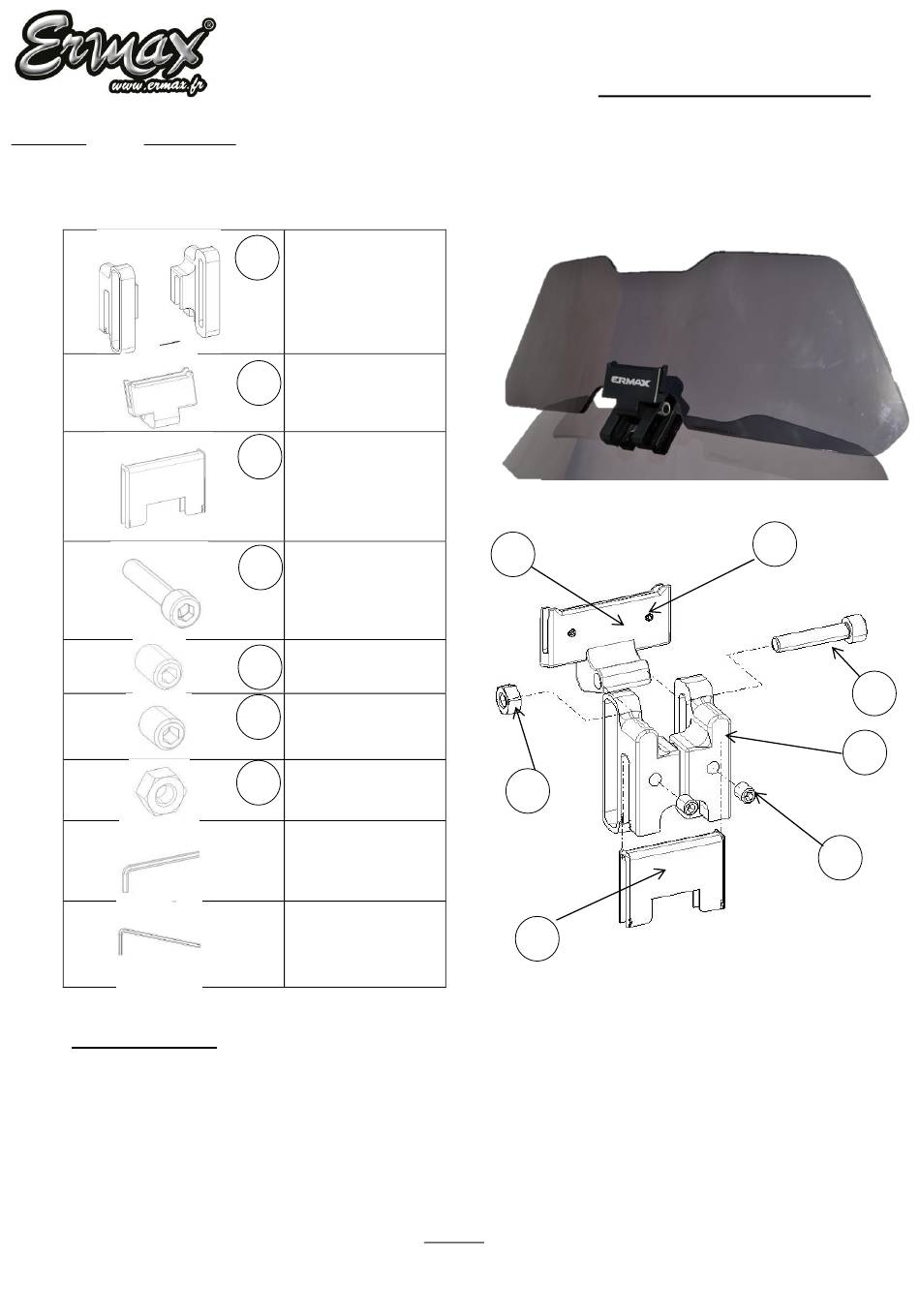

- Assemble the sliding guide (1) and screen fixation (2) thanks to the screw CHC 6x30 (4) and the nut (7).
- Insert the rubber (3) in the sliding guide (1).
- Place the headless screws M6 (5) in the sliding guide (1).
- Place the headless screws M3 (6) in the screen fixation (2).
- Insert the Clip & Flip screen in the screen fixation (2) and then tighten.
* Accessories gone up on the motorbike will not be any more considered as new and will be neither retaken nor exchanged.
* The mentioned label of motorbikes's manufacturers are indicated exclusively as a reference to Ermax accessories.
* Care to excessive clampings which may damage or break our plastic accessories and aluminium screws.
* Screens damaged by an inadequat washing are not guaranteed (abrasive, corrosive ... products, solvent, thinner, benzine ...). Wash immediately brake or battery fluid which may flow on accessories.
1
Sliding guide
2
Screen fixation
3
Rubber
4
Screw CHC
6x30
x2 Headless
5
screw M6
x2 Headless
6
screw M3
7
Nut
Hex key BTR 3
Hex key BTR 2
« CAUTION »
FITTING INSTRUCTIONS
ERMAX UNIVERSAL DEFLECTOR
Estimated mounting time : 10min
