2. Installation
IP Address Display (Models PDUMH15HVATNET and PDUMH20HVATNET): Press and hold the
button to display the PDU's IP address.
2.3.3 Static IP Address Assignment/Terminal Menu
Configuration Settings
Determine IP Information: Before assigning a static IP address, you'll need to know the IP
address, gateway address and subnet mask. If you do not have this information, contact your
network administrator for assistance.

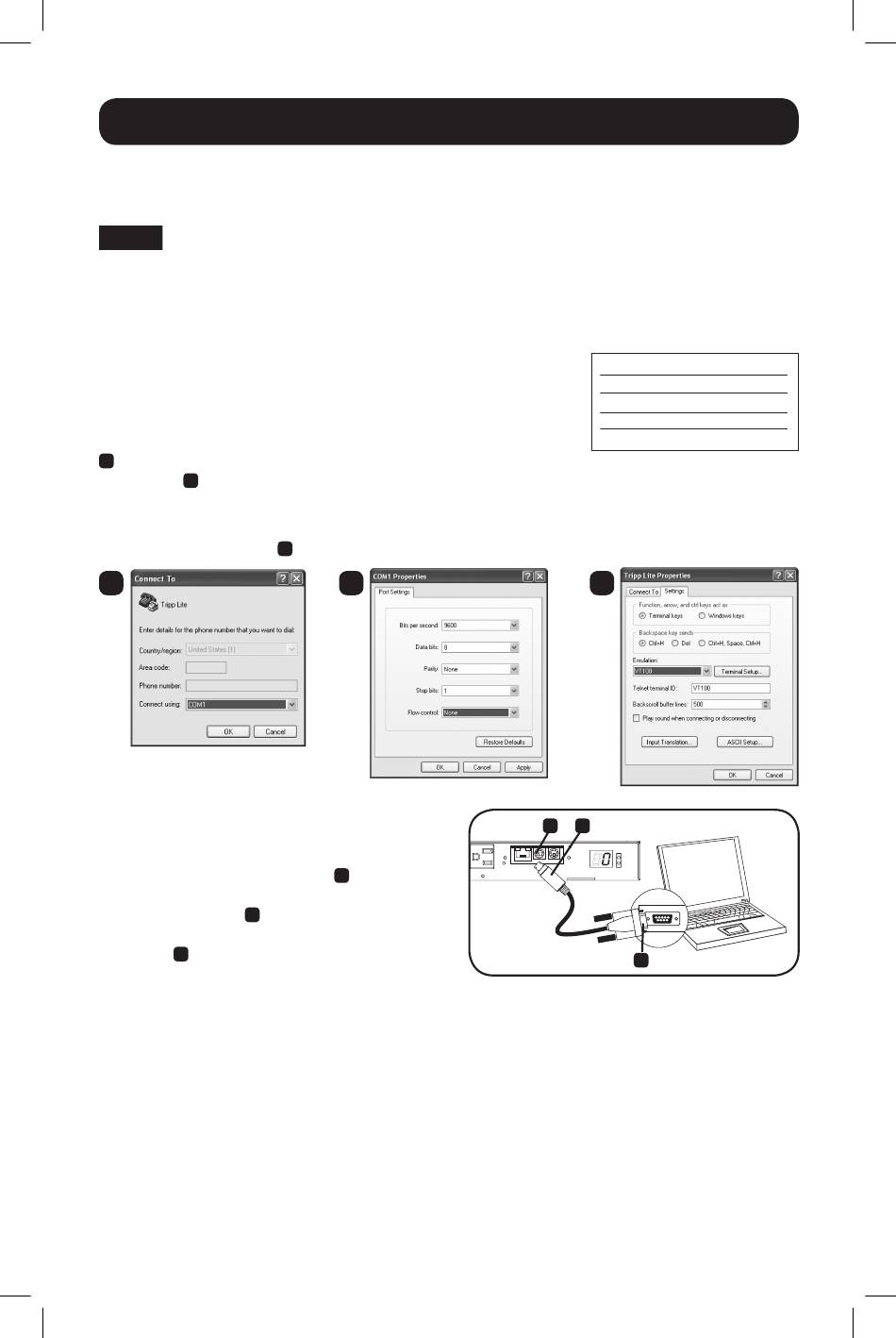

Configure Terminal Emulation Program: Open a VT100-
compatible terminal emulation program (such as Tera Term) on a
computer with an available DB9 serial port or USB to serial
adapter. (A notebook computer may be the most convenient
choice.) Set the terminal emulation program to use the COM port
that corresponds to the computer's serial port. Specify the
A
parameters required to communicate with the unit's terminal
B
interface:
If the terminal emulation program supports multiple emulation modes, you may also need to
specify VT100 emulation
A
Connect to a Computer: Use the mini-DIN to
DB9 serial cable (part number 73-1025)
included to connect the device to the
computer. The circular connector
end of the cable attaches to the 8-pin
mini-DIN config port
carefully to avoid damaging the pins.) The DB9
connector at the other end of the cable
C
connects to the computer (or USB to serial
adapter).
