Assembly

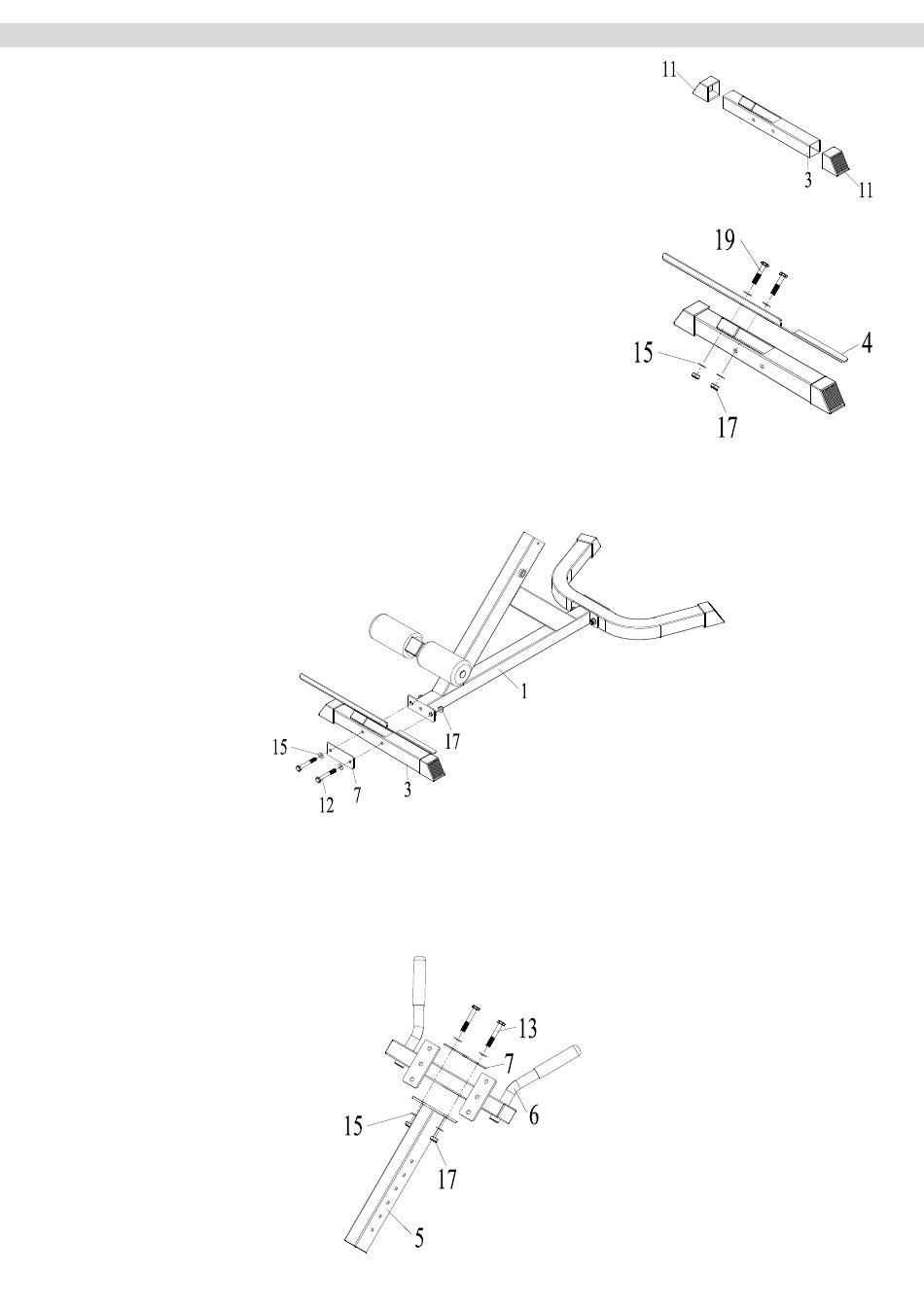

Assembly Step 3:
Slide an end cap (11) onto each end of the front base (3).
Assembly Step 4:
Fix the foot plate (4) using two hexagon bolts M10x50 (19), four washers M10 (15) and
two lock nuts M10 (17) to the slanted mount on the front base (3).
Assembly Step 5:
Fix the front base (3) to the rear mount of the main support (1) using reinforcement plate
(7), two hexagon bolts M10x75 (12), four washers M10 (15) and two lock nuts M10 (17).
Assembly Step 6:
Fix the handle bar frame (6) to the top mount of the adjustable support (5) using rein-
forcement plate (7), two hexagon bolts M10x65 (13), four washers M10 (15) and two lock
nuts M10 (17).
