OBSIDIAN CONTROL SYSTEMS Netron RDM6XL Guide D'installation page 12

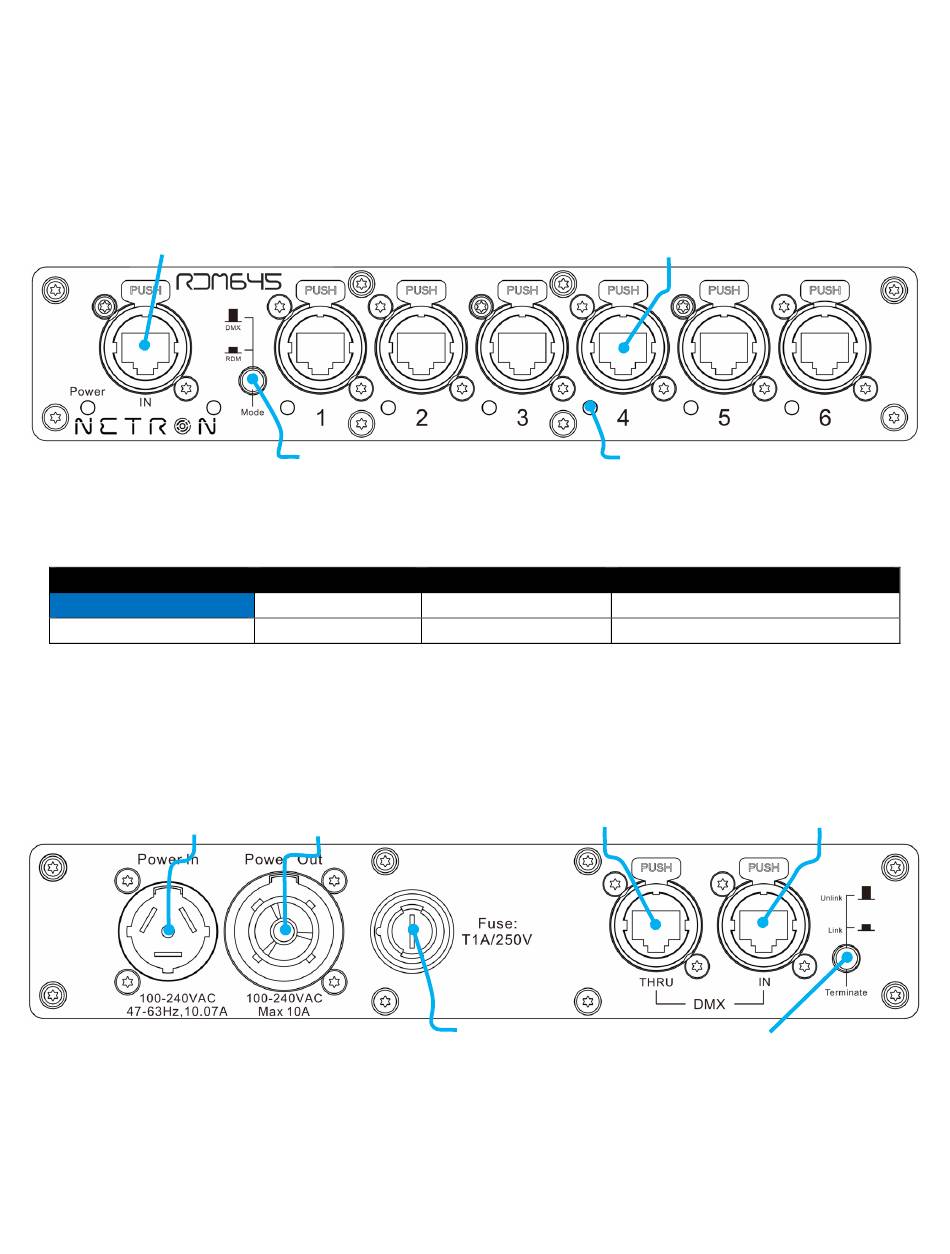

C O N N E C T I O N S : R D M 6 4 5 ( F R O N T & R E A R P A N E L S )
F R O N T C O N N E C T I O N S
Locking RJ45 Ethernet DMX Input
-
(6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
-
RDM Enable
-
Locking RJ45 Ethernet DMX Input
D M X P O R T S S T A T U S I N D I C A T O R L E D s
LED Color
DMX PORTS BLUE
R E A R C O N N E C T I O N S
Locking RJ45 Ethernet DMX Input (parallel with front)
-
Locking RJ45 Ethernet DMX Through
-
Terminate
-
Power In/Through
-
Power In
RDM Enable
Solid
DMX Out Stable Slow On/Off Blink
Power Out
(6) Locking RJ45 Ethernet
Opto-Isolated DMX Outputs
DMX Port Status Indicator LED
Blink
DMX Lost Active RDM communication
Locking RJ45 Ethernet
DMX Through
Fuse
Terminate button (120 Ohm)
for DMX In
12
Flashing/Strobing
Flash on RDM Packets
Locking RJ45
Ethernet DMX Input
