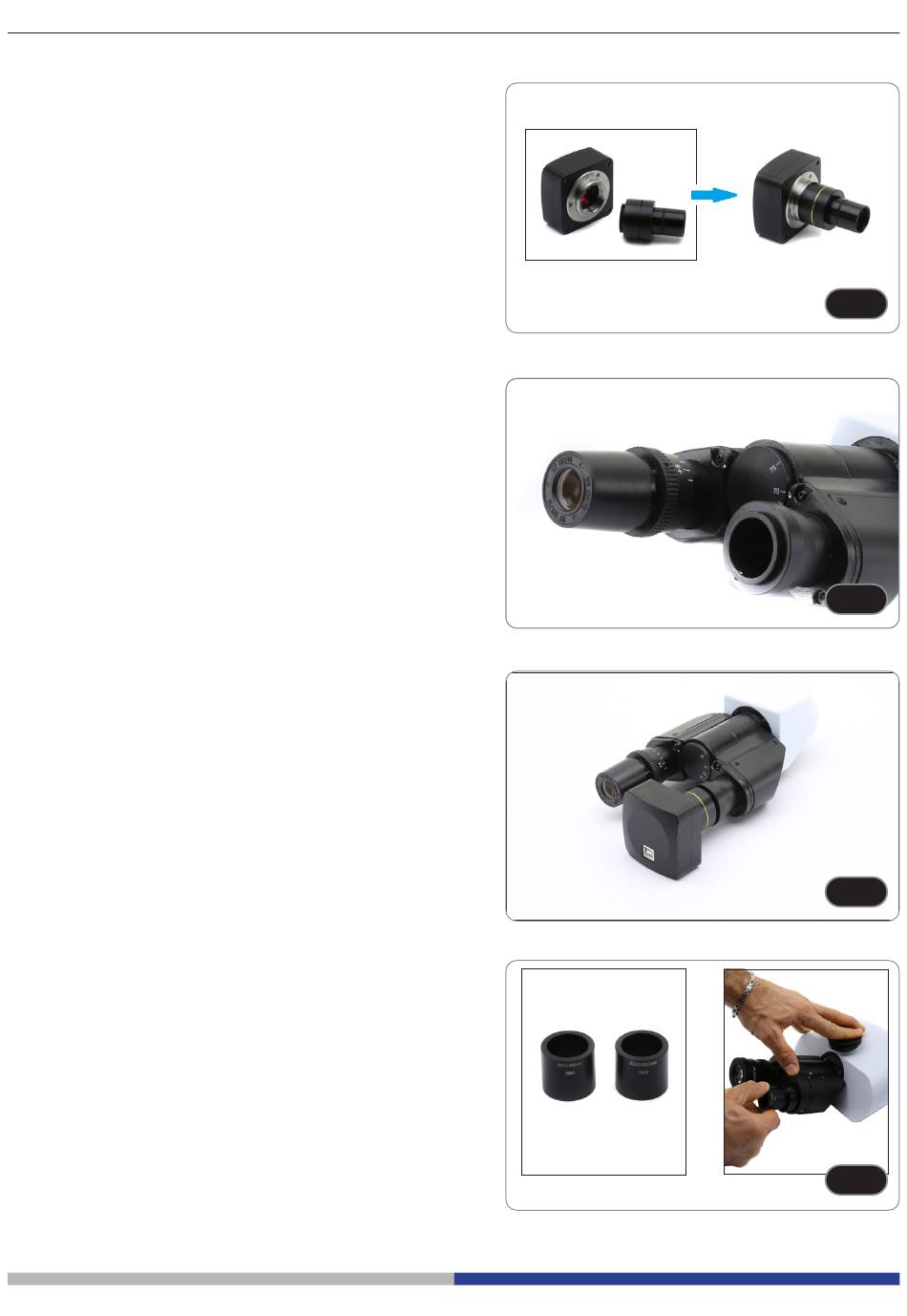

7.3.3 Connection to binocular or monocular head
• Any OPTIKA monocular or binocular microscope/ste-
reo microscope.
• Any non-OPTIKA monocular or binocular microscope/
stereo microscope.
1. Remove the dust cover from camera and from projec-
tion lens.
2. Screw the projection lens to the camera's thread. (Fig.
7)
3. Remove one eyepiece from the observation head. (Fig.
8)
4. Insert the final part of the projection lens into the empty
eyepiece sleeve. (Fig. 9)
5. In case of eyepiece sleeve with diameter 30 or 30.5 mm
use the adapter rings. (Fig. 10)
Page 8
F ig. 7 F ig. 7
F ig. 8 F ig. 8
F ig. 9 F ig. 9
F ig. 10 F ig. 10
