Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner's Manual for future reference.

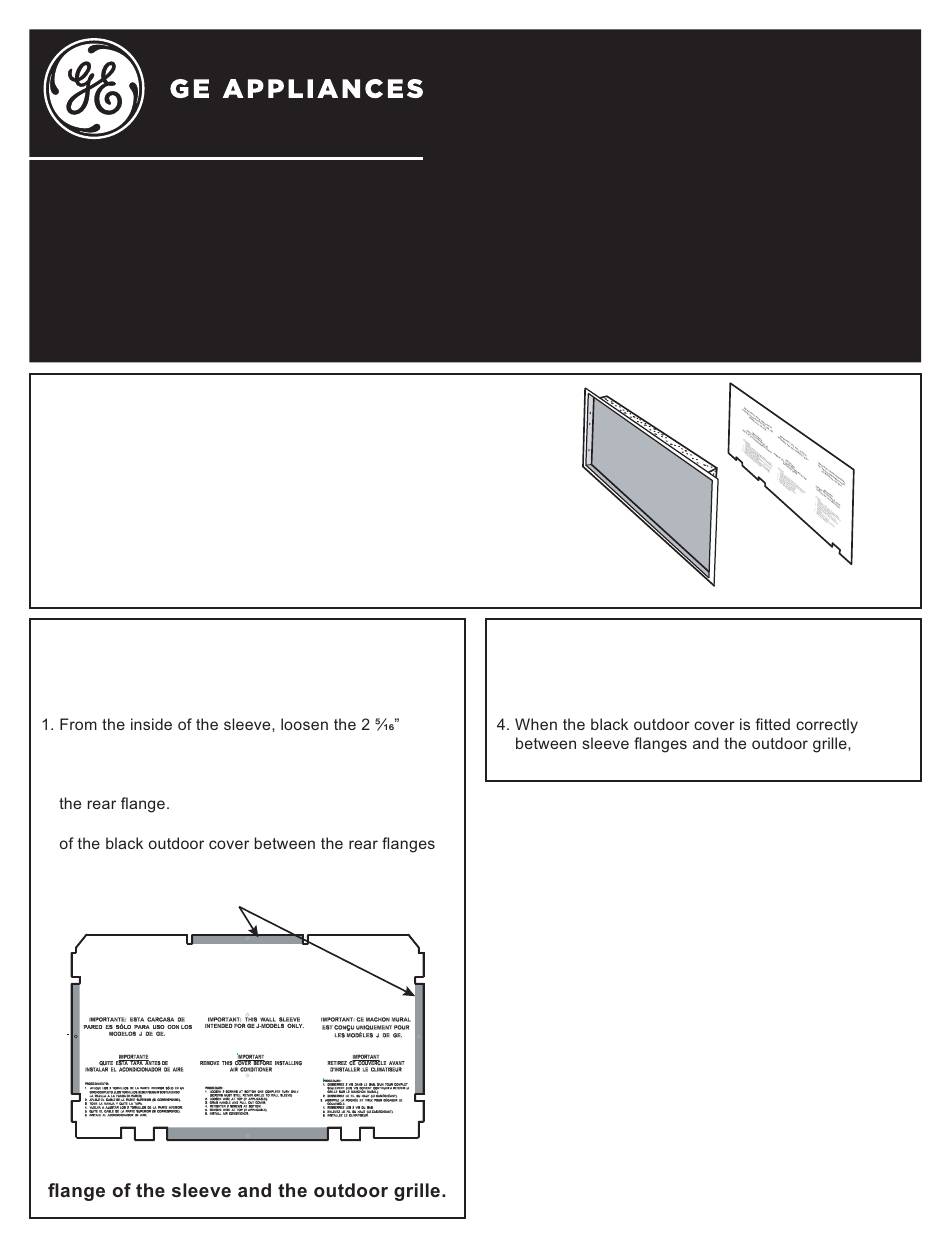

Parts Included
• Interior Panel (with insulation)
• Exterior Panel (with printed instructions)
• Screws (4)
• Push Pins (4)
Materials Needed (Field Supplied Parts)
• Phillips Head Screw Driver
• 5/16" Driver (To loosen screws on Rear Grille)
STEP 1:
Installation of Exterior Panel
For RAB46A and RAB48B wall sleeve models
screws, that secure the rear grille to the wall sleeve, 1
complete turn.
2. Place black outdoor cover inside wall sleeve against
3. Insert the middle tabs at the top, bottom and sides
of the sleeve and the outdoor grille to seal out wind
and water.
Insert these four tabs between the rear
GE is a trademark of the General Electric Company. Manufactured under trademark license.
Tabs
Installation Instructions
for your new
RAK26TO
Tenant Option Kit
For AJ Series, RAB46*, RAB48*,
RAB26* Wall Sleeve
Interior Panel
STEP 1 (cont):
Installation of Exterior Panel
For RAB46A and RAB48B wall sleeve models
retighten the 2 grille screws to secure it in place.
31-5000497 Rev. 0 02-21 GEA
Exterior Panel
Publicité
Sommaire des Matières pour GE RAK26TO
- Page 1 3. Insert the middle tabs at the top, bottom and sides of the sleeve and the outdoor grille to seal out wind and water. Tabs Insert these four tabs between the rear GE is a trademark of the General Electric Company. Manufactured under trademark license. 31-5000497 Rev. 0 02-21 GEA...
- Page 2 Installation Instructions STEP 1 (cont): STEP 2: Installation of Exterior Panel Installation of Interior Panel 1. Install the Interior Panel into the front of the wall For RAB26A wall sleeve models 1. Place black outdoor cover inside the wall sleeve. against the front face of the wall sleeve.
- Page 3 Tabs Insérez ces quatre languettes entre le rebord arrière de la gaine et la grille extérieure. GE est une marque de commerce de General Electric Company. Fabriqué sous licence de marque. 31-5000497 Rev. 0 02-21 GEA...
- Page 4 Instructions d’installation ÉTAPE 1 (suite) : ÉTAPE 2: Installation du panneau extérieur Installation du panneau intérieur 1. Installez le panneau intérieur sur le devant de la Pour gaine murale de modèle RAB26A gaine murale. Assurez-vous que le panneau est 1. Placez le couvercle extérieur noir à l’intérieur de la appuyé...
- Page 5 Tabs Inserte estas cuatro lengüetas entre la lengüeta trasera de la carcasa y la rejilla exterior. GE Appliances es una marca de General Electric Company. Fabricado bajo licencia de la marca.
- Page 6 Instrucciones de Instalación PASO 1 (cont): PASO 2: Instalación del Panel Exterior Instalación del Panel Interior Para los modelos con carcasa de Pared 1. Instale el Panel Interior en el frente de la carcasa de pared. Asegúrese de que el panel sea presionado de RAB26A 1.
