System Contents / Le Contenu Du Système - Oneida Air Systems XXVM010139H Mode D'emploi

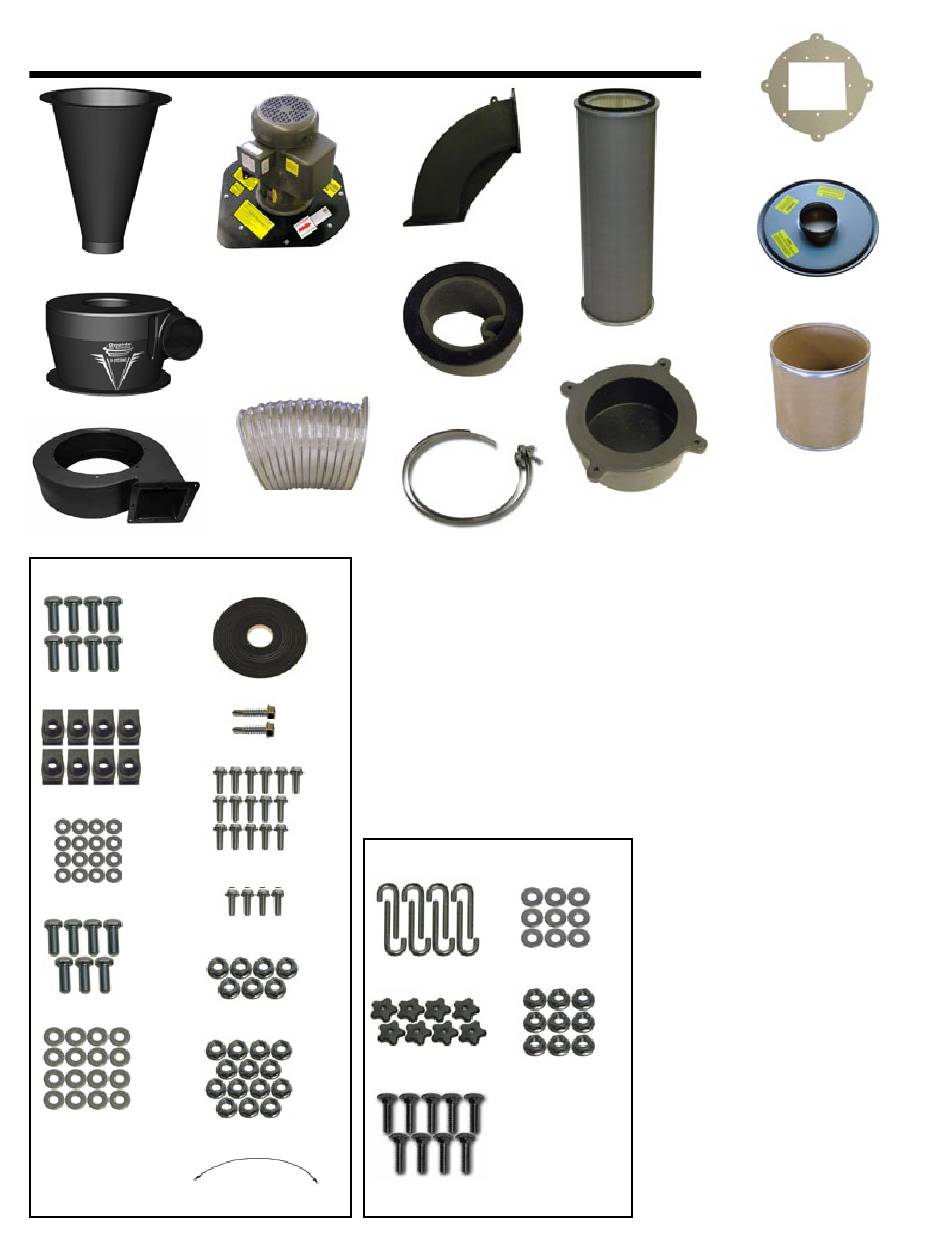

System Contents / le contenu du système
SCX002107B
SXI002107
BXH020005B
System Hardware Kit - AHX000003B
AFB155130 - 8
RGZ000000 - 25 ft.
AFS013000 - 2
AFT051618 - 8
AFB155155 - 16
AFW180000 - 16
AFB155195 - 4
AFS015100 - 7
AFT000004 - 7
AFW190000 - 14
AFT155175 - 14
FGA000001 - 1
BXI010106 - 1.5hp
BXI002105SV - 2hp
BXI030107 - 3hp
BXI012305V - 5hp
DHF070000
For Stand Contents see Pg. 4
of the manual. / Pour stands
matières voir p. 4 du manuel.
Note: you may have a few extra
pieces of hardware left over
when using the stand versus the
wall bracket. / Remarque: vous
pouvez avoir quelques éléments
supplémentaires à gauche
lorsque vous appuyez sur le
stand par rapport au support
mural.
Plenum Hardware - GXF010013
AFJ051602 - 8
AFT000001 - 8
AFB516125 -9
FPX000001
FCS133695HF
BSC130000
FPZ000013
ACB080000
AFW180000 - 9
AFT155175 - 9
2
FPX010013
SDX000700
SDS350000 / SDS550000
V - Systems Parts List / liste des pièces
BHX020005B Fan Housing -1
FCS133695HF Filter 13"x 36" - 1
Motor Assembly - 1
SCX002107B Cyclone - 1
SXI002107 - Barrel Section - 1
STX001207 - Mounting Ring - 1
SDS350000 35 Gal. Fiber Drum & Clamp -1
SDX000700 Drum Lid -1
DHF070000 Flex Hose 7" Dia. -1 ft.
ACB080000 6 - 8" Clamps -2
FPX010013 13" Filter Plate - 1
FPX000001 Plastic Plenum - 1
FPZ000013 Plastic Dust Bin - 1
BSC130000 Filter Silencer - 1
AFB516125 5/16 Carriage Bolt - 9
AFJ051602 J Bolts - 8
AFT000001 Thumb Nut - 8
AFT155175 5/16 Whiz Nut - 17
AFW180000 5/16 Washer - 25
AFB155155 5/16 Flange Bolt - 16
AFS015100 3/8 Hex Head Bolt - 7
AFT000004 3/8 Whiz Nut - 7
AFT051618 U-Spring Nut - 8
AFW190000 3/8 Washer - 14
RGZ000000 Gasket 25 ft.
FGA000001 Drum Grounding Wire - 1
AFS013000 3/8" Self-Tapping Screw - 2
AFB155130 5/16 x 1 1/4 Hex Bolt - 8
AFW025000 1/4" Washer - 24
AFB0250075 3/4" Carriage Bolt - 16
AFB155195 - 5/16x 2 Hex Bolts - 4
AFB025200 2" Carriage Bolt - 4
AFT900006 1/4-20 Nyloc Nut - 4
