5' (1,52 m)

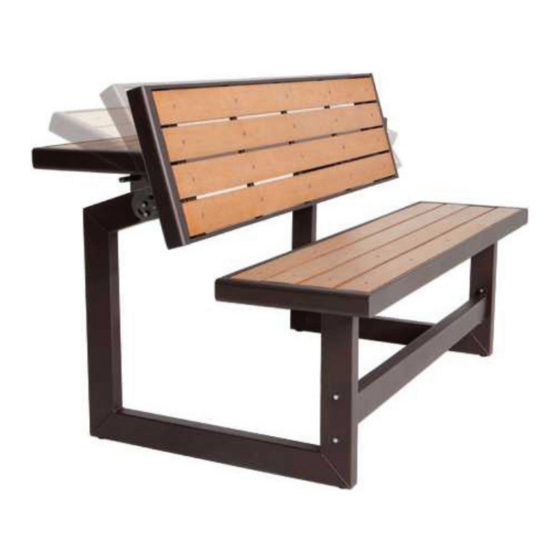

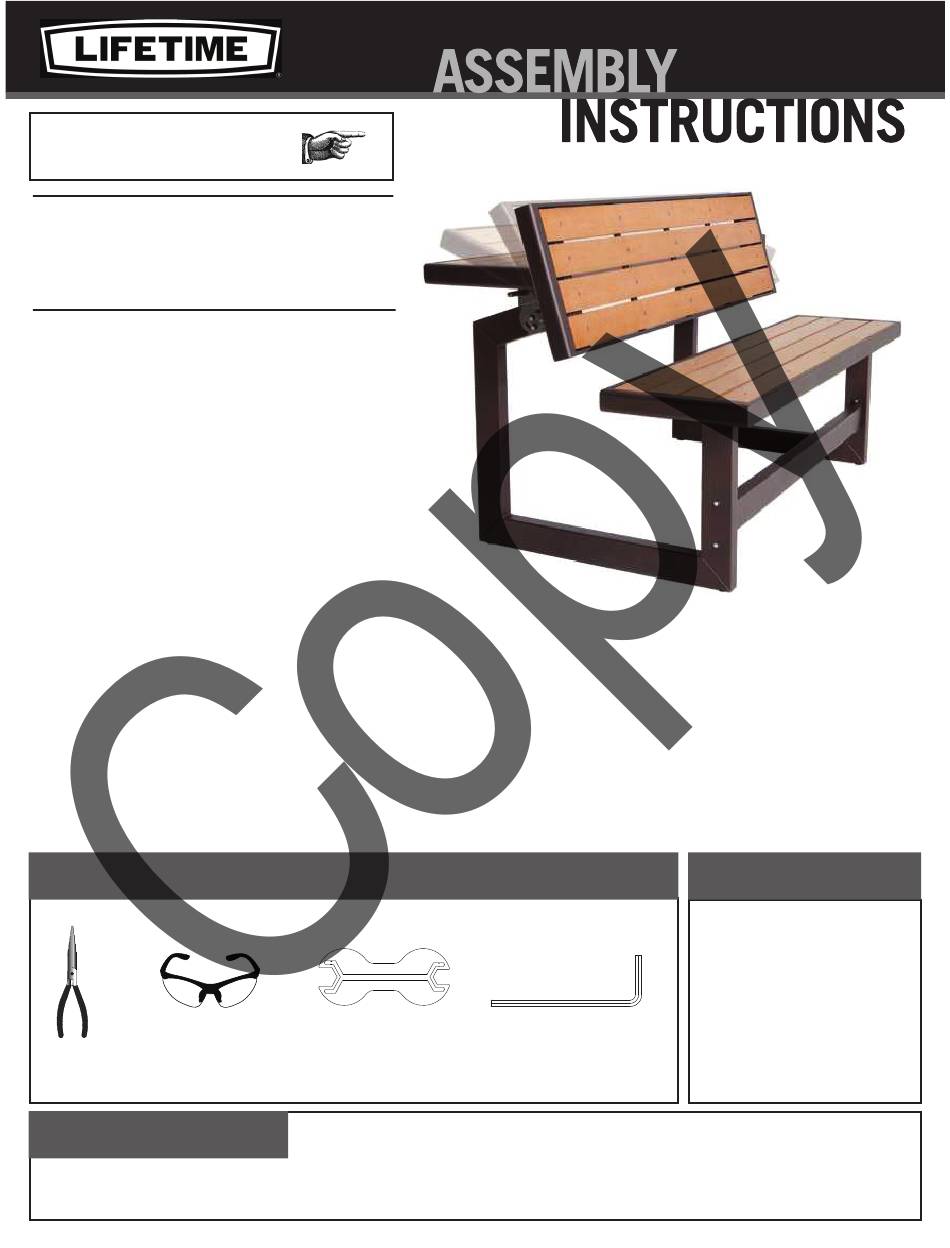

CONVERTIBLE BENCH
ITM./ART. 447779
Lifetime convertible benches are designed to be
strong and durable. We strive to make assembly as
easy as possible without compromising quality. If
you get stuck, we have tools to help:
• Level Ground
Assemble the Table on level ground
• Recruit Friends and Family
Assembly should take 2 people about 1
hour to complete.
Importado por:
Importadora Primex S.A. de C.V.
Blvd. Magnocentro No. 4
San Fernando La Herradura
Huixquilucan, Estado de México
C.P. 52765
RFC: IPR-930907-S70
Ninguna garantía ofrecida por el fabricante es válida en México.
FOR DOMESTIC USE ONLy!
IMPORTANT: RETAIN FOR FUTURE REFERENCE. READ CAREFULLy.
TOOLS REQUIRED
NEED HELP? TALK TO US!
Call: 1-800-225-3865
7:00 am - 5:00 pm (Monday - Friday) MST
and 9:00 am - 1:00 pm Saturday MST
CSH (x2)
8 mm x 10 mm
(Provided)
Lifetime's Shed Assembly Experts offer quick responses and great customer service.
Web: www.lifetime.com/instructions
Live Chat: www.lifetime.com/instructions
TAbLE OF CONTENTS
Icon Legend...............................4
Warnings & Notices.....................5
Parts Identifi er............................6
Bench Seat Assembly..................7
Bench Back Assembly...............11
CTP (x1)
Bench Adjustment....................18
(Provided)
Cleaning & Care........................19
Registration............................20
Warranty.............................21
MODEL# AND PRODUCT ID
(you will need both when contacting us)
Model Number:
Product ID:
60054
