MOUNTING OPTION 3 – SURFACE MOUNT

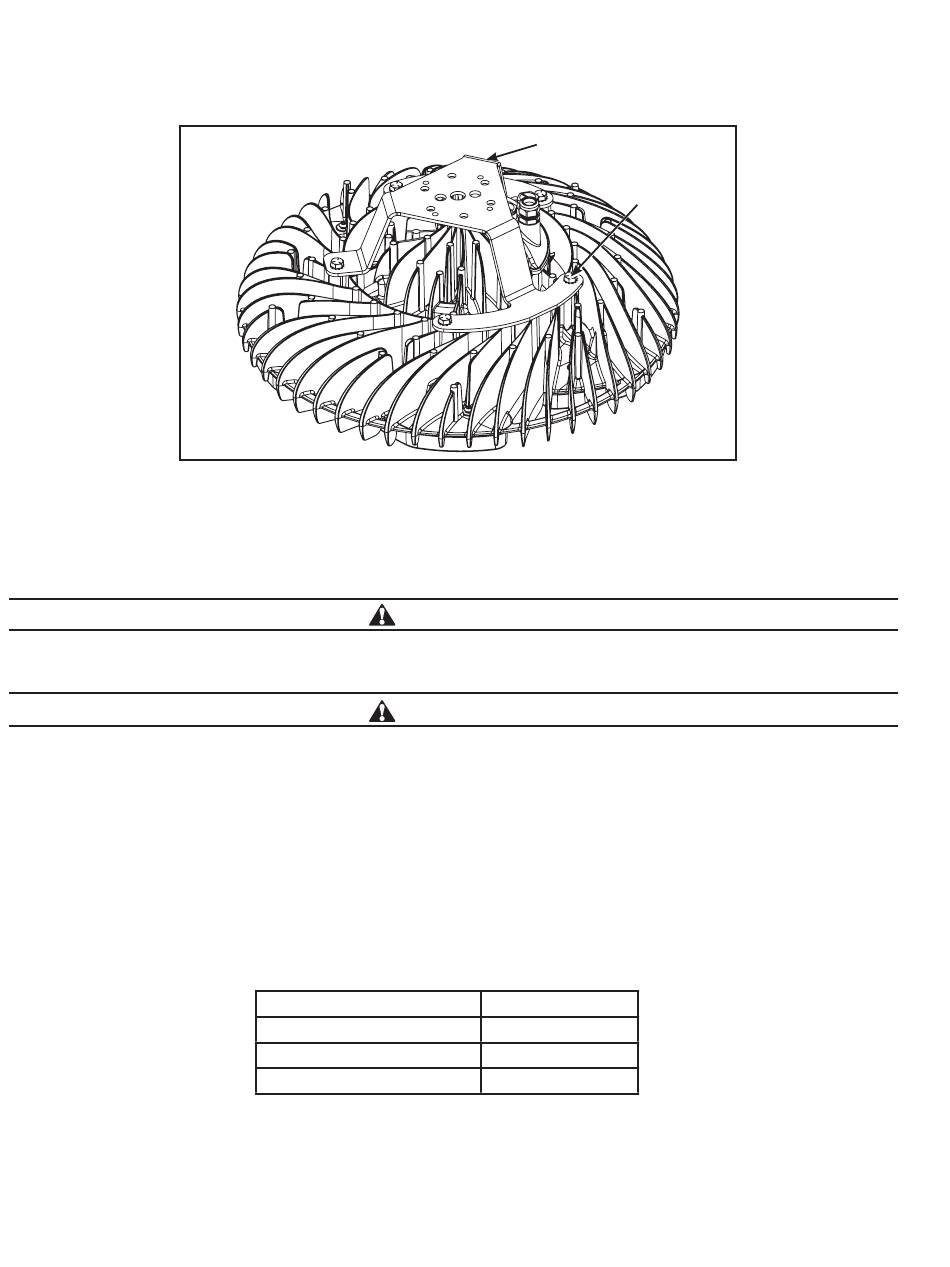

Figure 5.
1. Attach Cooper Lighting Solutions Knuckle Mount CLP-1034D10 or 1007D53 to Surface Mount
using supplied hardware.
2. Tighten the hardware to 13-15 in-lbs.
3. Attach Knuckle mount to supporting structure.
Failure to tighten the hardware may allow the fixture to come loose and fall.

Electrical Connections

Never connect the luminaire to an electrical system that is not grounded. Installing a luminaire in an ungrounded
electrical system could allow the metal housing to become energized in the event of an electrical short, resulting
in the risk of electrical shock for anyone who comes into contact with the luminaire. FAILURE TO FOLLOW THIS
WARNING MAY LEAD TO DEATH, SEVERE INJURY, OR PROPERTY DAMAGE.

Power wiring

Incoming power cable shall be SOOW style 3C cable with a minimum of 14AWG annealed stranded bare copper per ASTM
B-174 with a minimum temperature range of -40°C to +90°C. Cable must be water resistant, UL listed and CSA certified for
indoor and outdoor use.
1. Route incoming power cable through the cord grip in the junction box cover if not using a pendant mount.
2. Strip outer jacket of incoming power cable back 3" . Connect the incoming power wires to the luminaire power wires
within the junction box.
6
COOPER LIGHTING SOLUTIONS
WARNING
WARNING
Power Wire Color Luminaire
Black
White
Green
Table 4. Power wiring connections
IB507004EN Installation instructions
Surface Mount
Surface Mount
Hardware
Designation
Line
Line or Neutral
Ground
