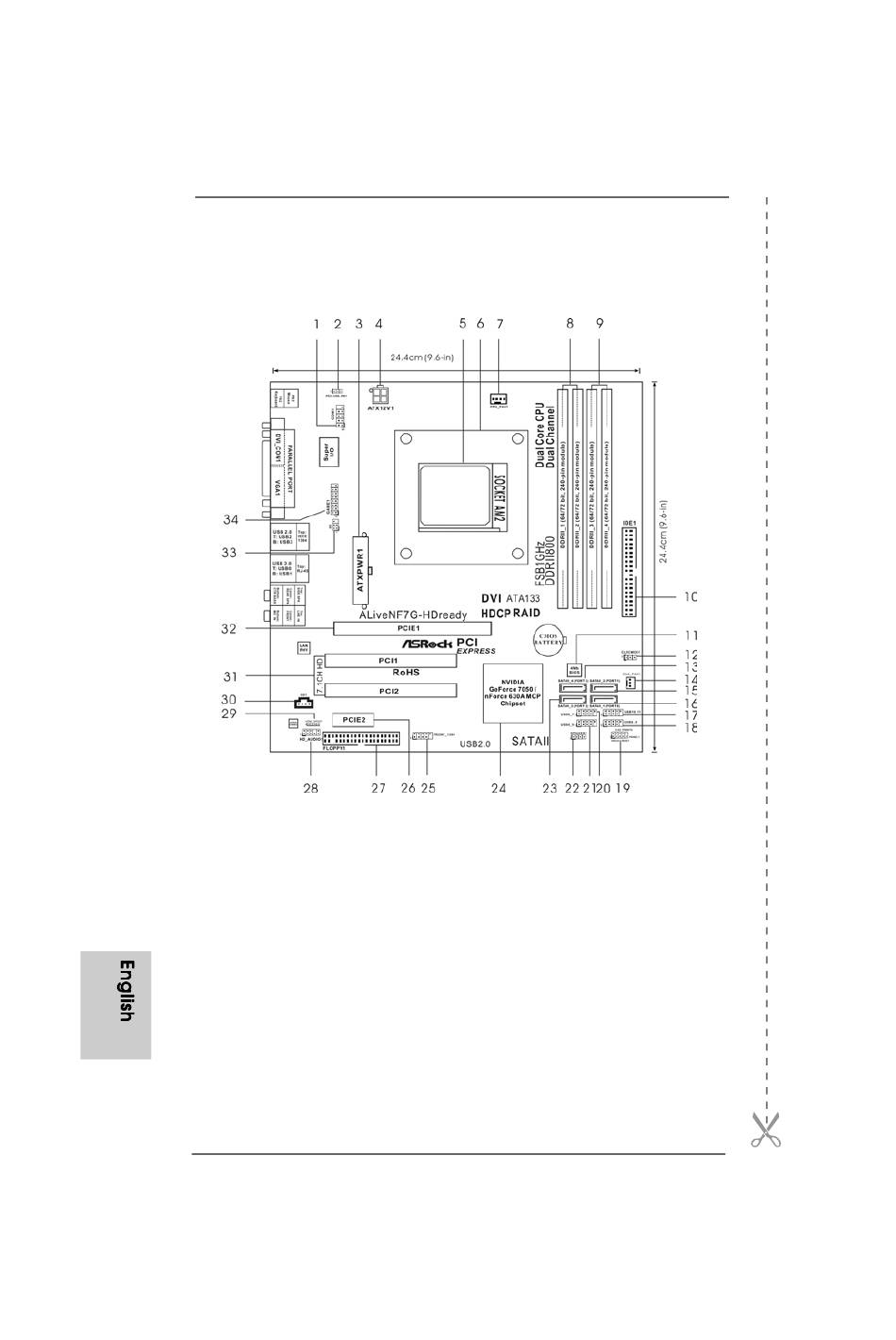

Motherboard L Motherboard Layout Motherboard L
Motherboard L Motherboard L
1 Serial Port Connector (COM1)
2 PS2_USB_PW1 Jumper
3 ATX Power Connector (ATXPWR1)
4 ATX 12V Power Connector (ATX12V1)
5 AM2 940-Pin CPU Socket
6 CPU Heatsink Retention Module
7 CPU Fan Connector (CPU_FAN1)
8 2 x 240-pin DDRII DIMM Slots
(Dual Channel A: DDRII_1, DDRII_2; Yellow)
9 2 x 240-pin DDRII DIMM Slots
(Dual Channel B: DDRII_3, DDRII_4; Orange)
10 Primary IDE Connector (IDE1, Blue)
11 SPI Flash Memory (4Mb)
12 Clear CMOS Jumper (CLRCMOS1)
13 Fourth SATAII Connector (SATAII_4 (PORT3))
14 Chassis Fan Connector (CHA_FAN1)
15 Secondary SATAII Connector (SATAII_2 (PORT1)) 33
16 Primary SATAII Connector (SATAII_1 (PORT0))
2 2 2 2 2
ASRock
ayout ayout ayout
ayout
17 USB 2.0 Header (USB10_11, Blue)
18 USB 2.0 Header (USB8_9, Blue)
19 System Panel Header (PANEL1)
20 USB 2.0 Header (USB6_7, Blue)
21 USB 2.0 Header (USB4_5, Blue)
22 Chassis Speaker Header (SPEAKER 1)
23 Third SATAII Connector (SATAII_3 (PORT2))
24 NVIDIA GeForce 7050 / nForce 630A MCP
25 Front Panel IEEE 1394 Header (FRONT_1394)
26 PCI Express x1 Slot (PCIE2)
27 Floppy Connector (FLOPPY1)
28 Front Panel Audio Header (HD_AUDIO1)
29 HDMI_SPDIF Header (HDMI_SPDIF1)
30 Internal Audio Connector: CD1 (Black)
31 PCI Slots (PCI1- 2)
32 PCI Express x16 Slot (PCIE1)
Infrared Module Header (IR1)
34 Game Port Header (GAME1)
ALiveNF7G-HDready Motherboard
