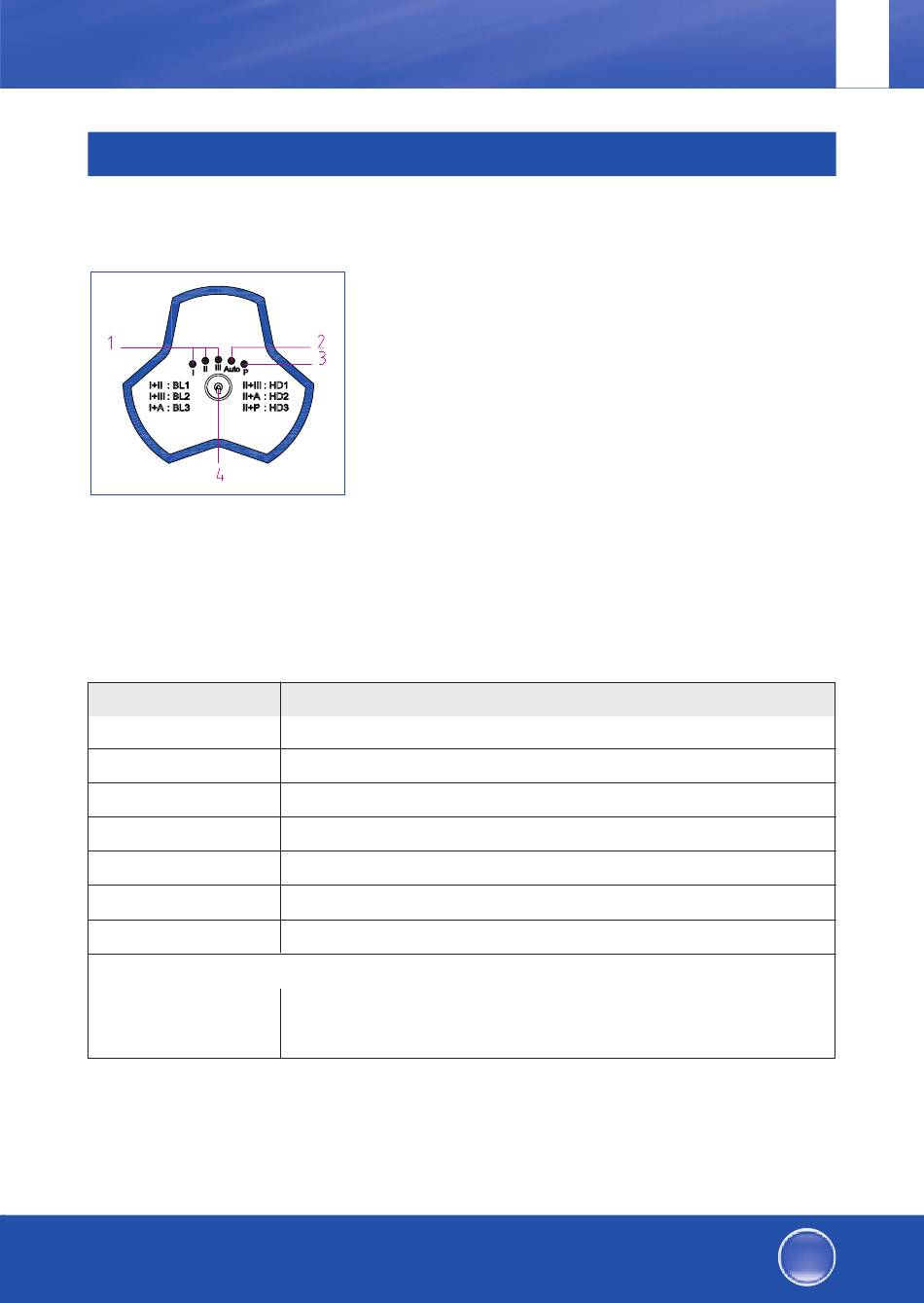

6. Control panel
6.2 Indications on the control panel
The selected operating mode results from the combinations of
flashing LEDs.
Display of operating modes:
Display
I + II
I + III
I + Auto
II + III
II + Auto
II + P
I / II / III
For pumps with PWM control
P
all 5 LEDs
Highly efficient. Simple. Good!
No. Description
1. Speed levels I, II, III
2. Automatic mode (AUTO)
3. PWM active (if PWM model)
4. Mode button
Operating mode
BL 1
BL 2
BL 3
HD 1
HD 2
HD 3
HS1 / HS2 / HS3
PWM 1
PWM 2
