Frigidaire FPGC3087MS Instructions D'installation

GAS COOKTOP INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A
ImpORTANT: SAVE FOR lOCAl ElECTRICAl INSpECTOR'S uSE.
READ AND SAVE ThESE INSTRuCTIONS FOR FuTuRE REFERENCE.
WARNING
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or
the gas supplier.

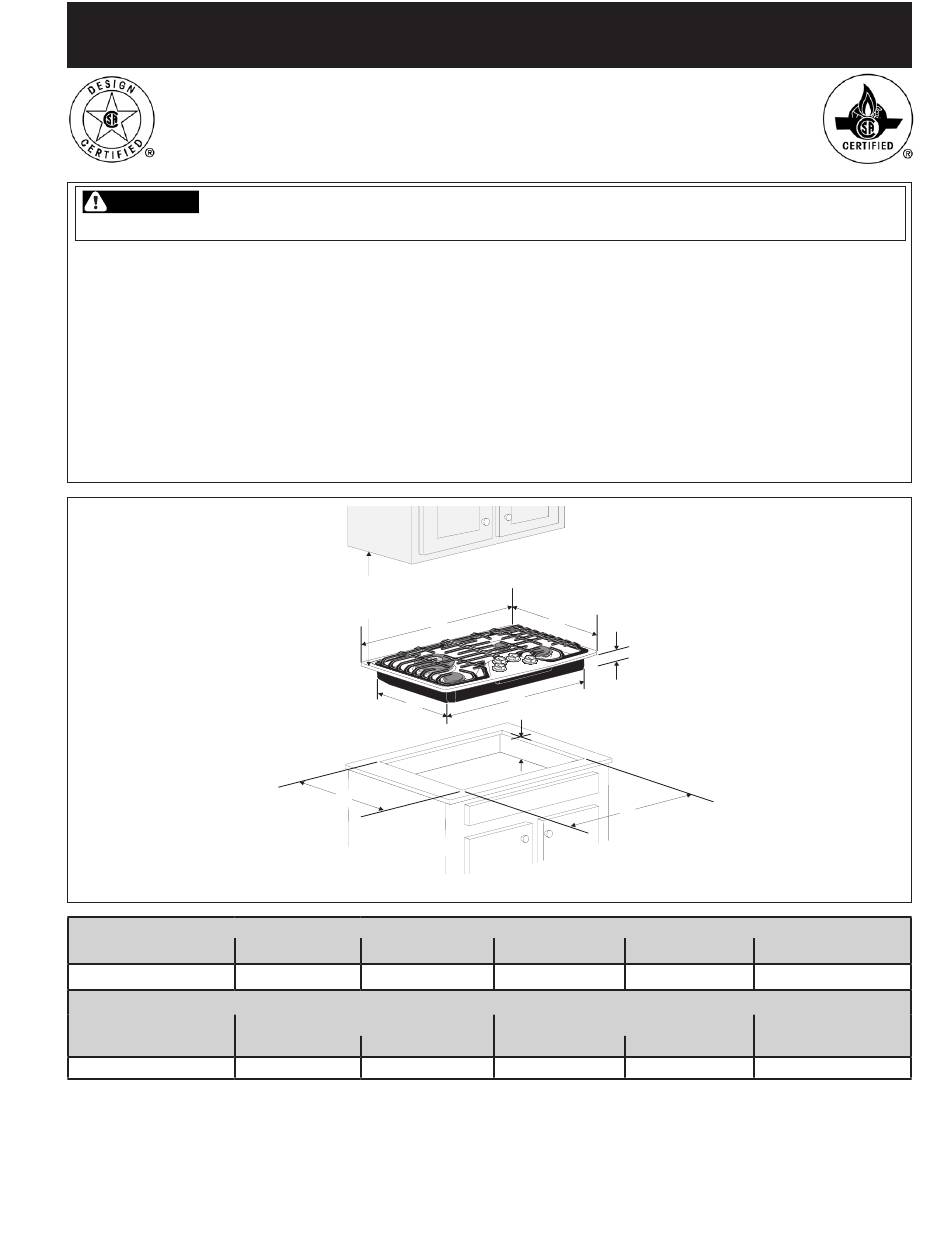

gas Cooktop
Dimensions
gas Cooktop
Cutout
Dimensions
MODEL
30" Gas Cooktop
MODEL
30" Gas Cooktop
All dimensions are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas
supply line.
NOTE: Wiring diagrams for this cooktop are enclosed in this booklet
Printed in Canada
QuAlIFIED INSTAllER.
30" Min. *
(76.2 cm)
A
E
G
PRODUCT DIMENSIONS
A. WIDTh B. DEpTh
30 (76.2) 21 ¾ (55.2)
CUTOUT DIMENSIONS
F. WIDTh
MINIMUM mAxImum
27 ¼ (69.2) 28 ½ (72.4)
B
C
D
H
F
Figure 1
C. hEIghT D. BOx WIDTh
4 ¼ (10.8)
g. DEpTh
MINIMUM
/
19 (48.6)
1
8
E. BOx DEpTh
27 (68.6) 19 (48.3)
h. hEIghT BElOW
mAxImum COOKTOP
19 ¾ (50.2) 8 (20.3)
318205456 (1212) Rev. A
English - pages 1-10
French - pages 11-20
