DVR Layout (cont)
Removing the Remote Control
Note: To secure the DVR and prevent unauthorised use remove the
remote and store in a secure place.

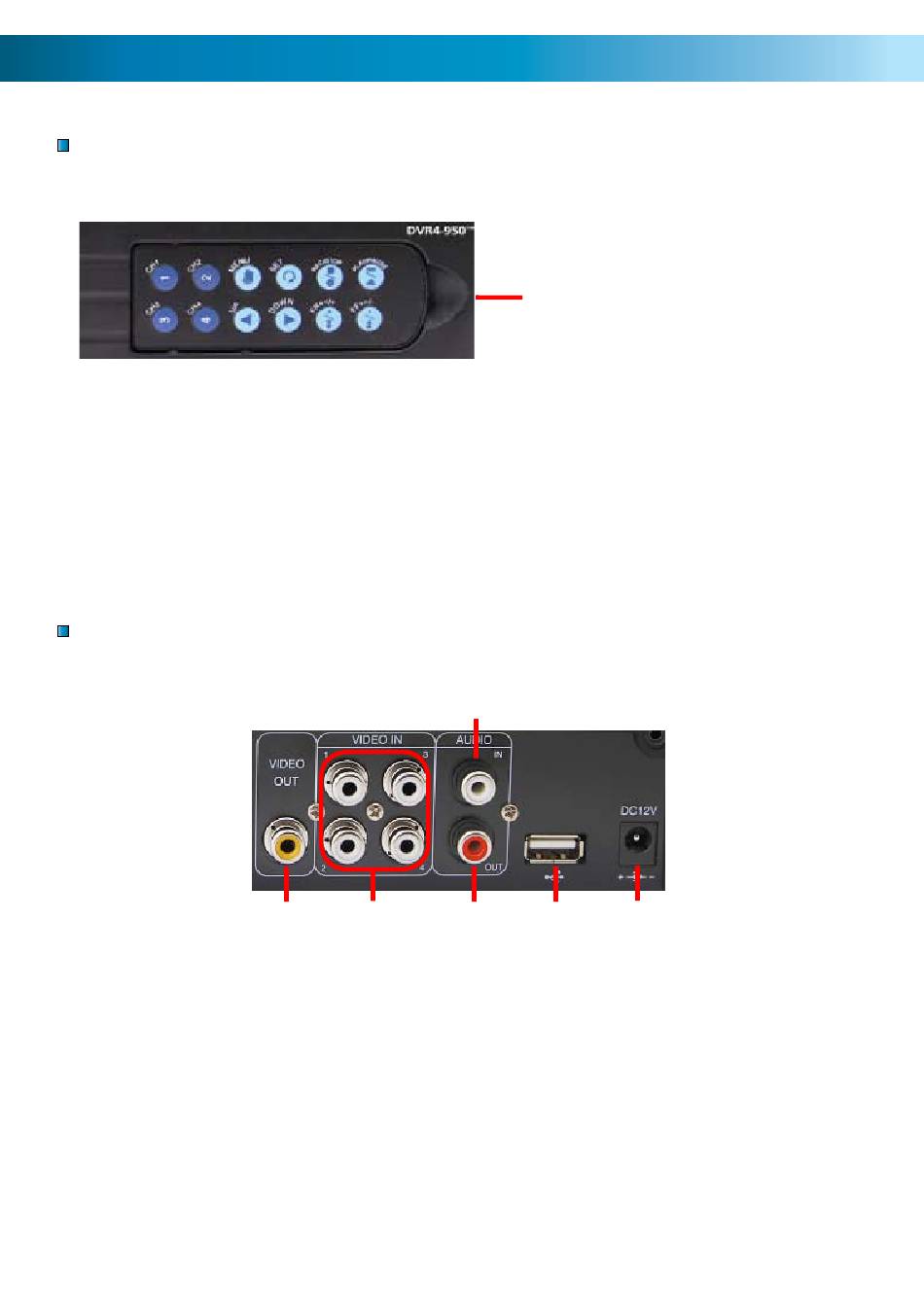

Rear Panel

1. Video Output
Output to TV
2. Video Input
Inputs for cameras x 4 RCA
3. Audio Input
Input for microphone 1 x RCA
6 6
1 2
Use the indent to
remove the control from
the DVR unit
3
6
4 5
4. Audio Output
Output to speaker 1 x RCA
5. USB Connection
Download backup footage to Flash Drive (not
included)
6. DC 12V Power Input
Power Adapter connection for DC 12V adapter
only
