S A F E T Y I N S T R U C T I O N S
7
Charger Location & DC Connection
17. CHARGER LOCATION
CAUTION
a.Locate charger as far away from batteries as possible.
b. Never place a charger directly above a battery being charged; gases or fluids from battery
will corrode and damage charger.
c. Do not operate charger in an enclosed area or in an area with restricted ventilation in any way.
d. Never allow battery acid to drip on charger when reading electrolyte specific gravity
or filling a battery.
e.Do not set a battery on top of charger.
f. Do not install on or over combustible surfaces.
18. DC CONNECTION PRECAUTIONS
CAUTION
a.Connect and disconnect DC output cables only after setting any charger switches to "off"
position and removing AC cord from electric outlet. Never allow cables to touch each other.
IMPORTANT NOTICE: FCC CLASS A PART 15 NOTIFICATION
Your On-Board Marine Battery Charger has been designed and tested to comply with FCC Class A part
15. These regulations are to provide adequate protection against harmful interference while operated
in a commercial application. If in a residential setting, you are encountering interference with TV and
radio reception, simply remove AC power from the ProMariner unit to confirm if your battery charger
is causing interference. End user can explore the following to minimize interference:
1) Chose a different AC circuit to power your On-Board Marine Battery Charger.
2) Make sure your outlet is properly grounded.
3) Re-position receiving antenna.
4) Purchase a separate AC line filter.
5) Relocate charger so that it is at the furthest point from home receiving equipment,TV, radio, etc.

General Overview

The ProTournament elite is an advanced electronic and fully automatic multi-stage on-board marine
battery charger. ProTournament elite is pre-wired for easy installation and is 100% waterproof for
fresh and salt water applications. ProTournament elite 's multi-stage charging process delivers five
modes of operation that include: start up diagnostics, charging, conditioning, auto maintain and
storage auto reconditioning of each battery. This process is proven to extend the life of your batteries
and will fully charge your batteries each time you connect to AC power. ProTournament elite delivers
increased power and performance while providing improved durability and heat transfer.
The ProTournament elite 's Distributed-On-Demand
and distribute 100% of the available charging output in proportion to the discharge state of each
battery connected. Each battery charger output is fully isolated. ProTournament elite 's easy to view
LED indicators will provide at a glance status of: AC power, battery type, charging, and battery and
charger status. The LED status center also includes an indication of a fault or failure detected at
each battery that is connected to the charger and can be seen on the top of the unit when installed.
Note: ProTournamentelite On-Board Marine Battery Chargers are designed for any combination
of group 24,27, 29, 30 and 31 batteries. Each battery charger DC output cable must be connected
to one (1) 12 Volt DC battery (even if batteries are configured for 24 Volt DC or 36 Volt DC trolling
motor or system applications).

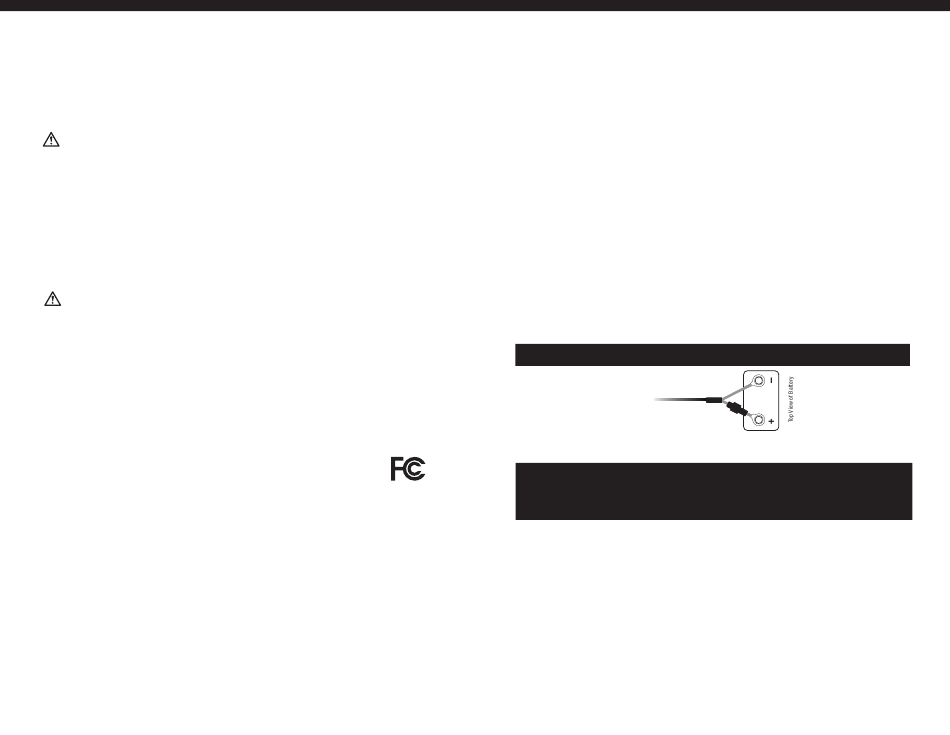

Important: The pair of red and black wires in 1 cable jacket MUST GO TO THE SAME 12VDC battery.
Each charger cable must
be connected to 1 battery,
just as shown. Observe
cable jacket
black to (-) and red to (+).
Do this for each battery.
WHEN CONNECTING TO AN ENGINE START BATTERY only connect the battery bank cable that is LABELED:
"FOR ENGINE BATTERY, USE THIS BANK CABLE ONLY".
Application Tip
If your application is for 4D or 8D large capacity batteries, please refer to ProMariner's website
www.promariner.com and view our ProNauticP Hardwired Charger Assortment for a model that
is correct for this group size of batteries.
Most specifically you do not have to remove series or parallel jumper cables to use your
ProTournamentelite charger. See typical wiring diagrams for these systems in the installation
section of this manual.
Note: The ProTournamentelite must be connected to batteries to operate. It will not operate
as a 12 volt power supply.
G E N E R A L O V E R V I E W
™ Charging technology will automatically sense
black (-)
Group size 24
thru 31 only
red (+)
